Arm Rest: Service and Repair

REMOVAL

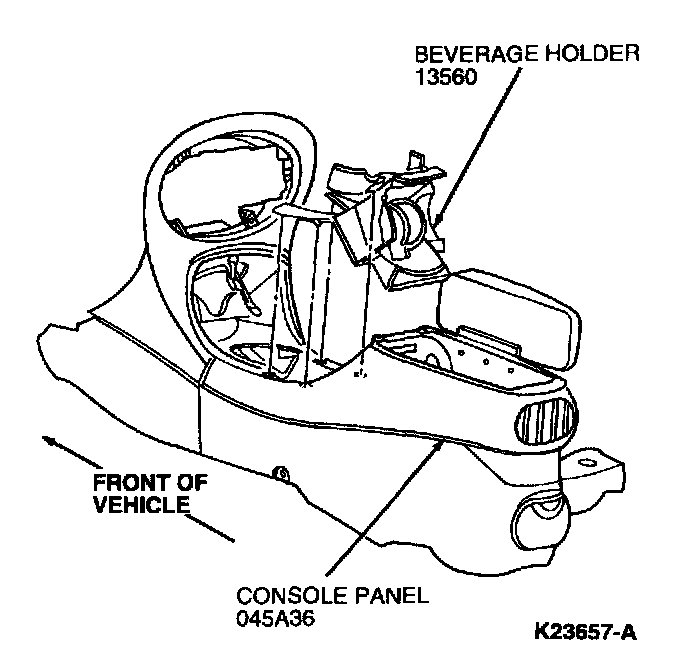

1. Remove beverage holder by carefully unsnapping front portion using a flat-blade screwdriver. Grasp beverage holder and unsnap from console panel.
2. Remove two screws retaining console finish panel to console panel. Remove console finish panel.

INSTALLATION







1. Follow removal procedure in reverse order.
