Rear

REMOVAL

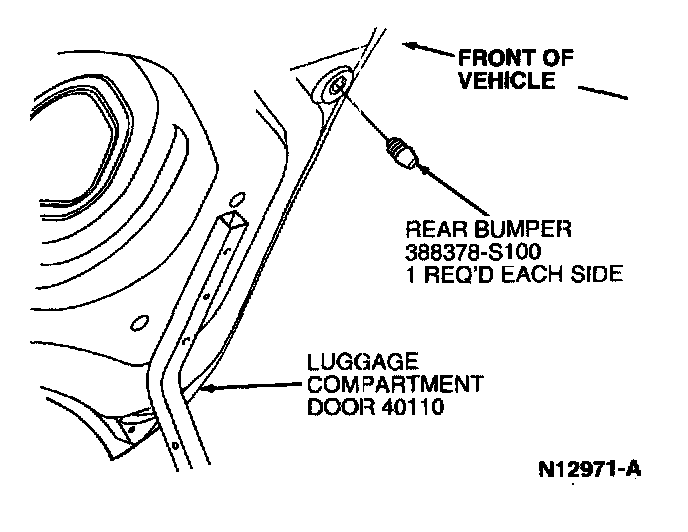

1. Remove the outer bumpers by unscrewing from their respective slotted holes.

NOTE: The luggage compartment door has two screw adjustable bumpers on the outer corners and two stationary bumpers on the upper front inner corners.

2. Remove the upper front pair of bumpers by grasping firmly and pulling from the luggage compartment door with a twisting motion.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Adjust luggage compartment door.
