Luggage Compartment Door Hinge

REMOVAL
1. Remove luggage compartment door as described.
2. Remove RH luggage compartment door/tailgate hinge torsion bar and LH luggage compartment door/tailgate hinge torsion bar.
3. Remove trim panel and insulator.

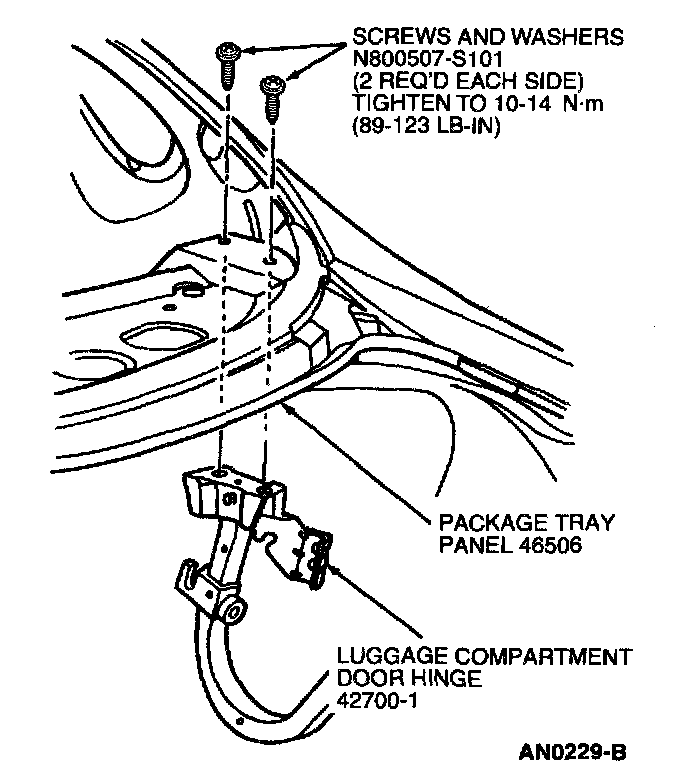

4. Remove two screws retaining luggage compartment door hinge to body. Remove luggage compartment door hinge.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten hinge-to-body screws to 10-14 Nm (89-123 lb-in). Install RH luggage compartment door/tailgate hinge torsion bar and LH luggage compartment door/tailgate hinge torsion bar.
