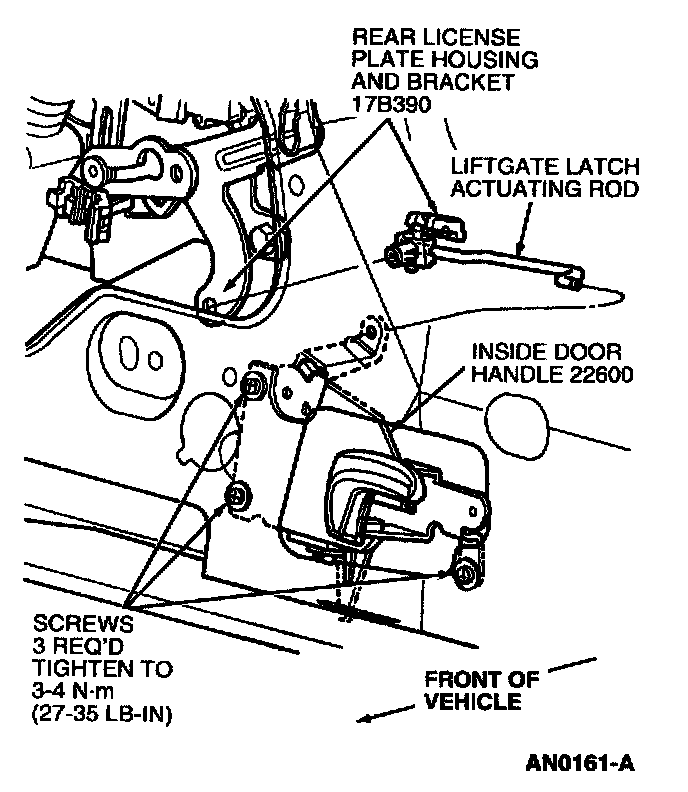

Liftgate, Inside Door Handle






REMOVAL
1. Open liftgate.
2. Remove liftgate inside trim panel.
3. Remove three screws retaining inside door handle.
4. Disconnect inside door handle from front door latch actuating rod and remove inside door handle from liftgate.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten inside door handle retaining screws to 3-4 Nm (27-35 lb-in).
