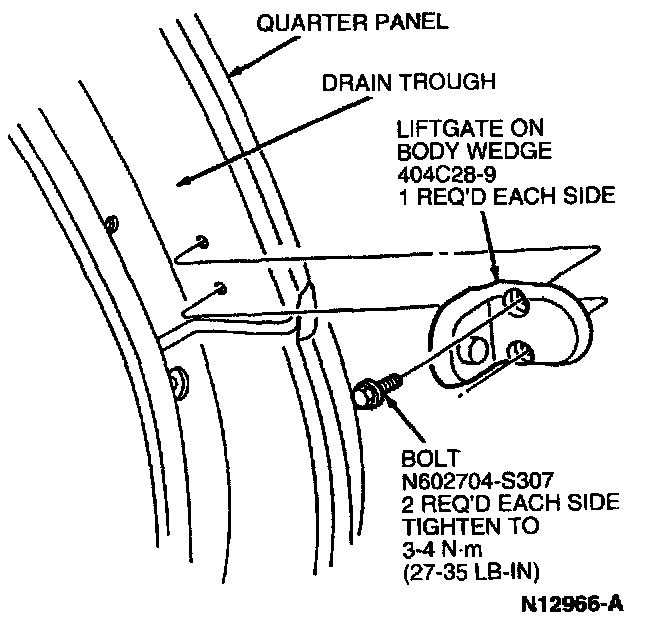

On-Body Wedge, Liftgate






REMOVAL
1. Open liftgate.
2. Remove two bolts retaining liftgate on-body wedge.
3. Remove liftgate on-body wedge from sides of liftgate opening.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten bolts to 3-4 Nm (27-35 lb-in).
