Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Sound System Function Pinpoint Tests >> C: Integrated Control Panel Is In the Tape Mode, Display Showing Tape - No Audio or Reduced Audio At Speakers - AM, FM and

C: Integrated Control Panel Is In the Tape Mode, Display Showing Tape - No Audio or Reduced Audio At Speakers - AM, FM and

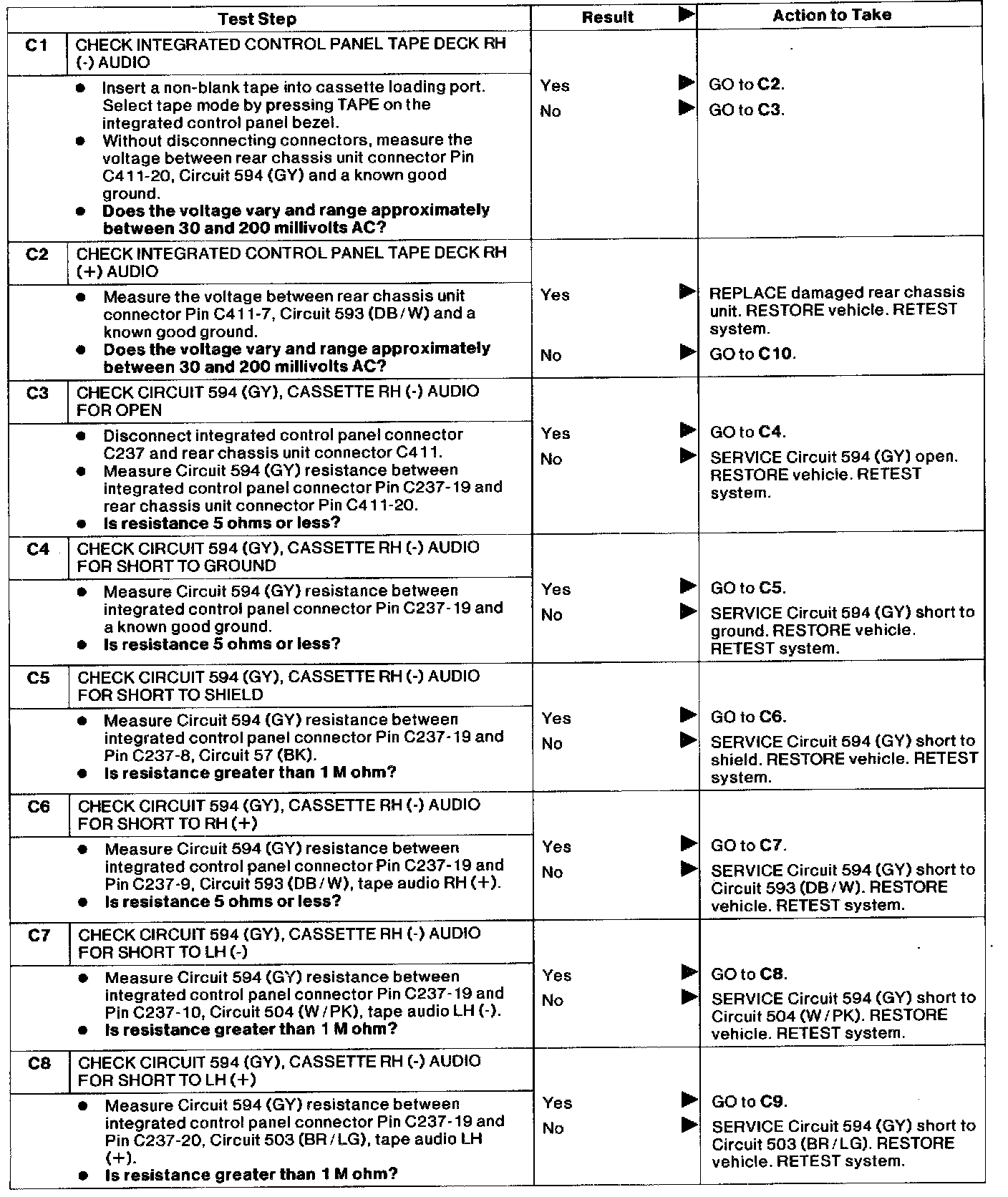

C1 - C8:

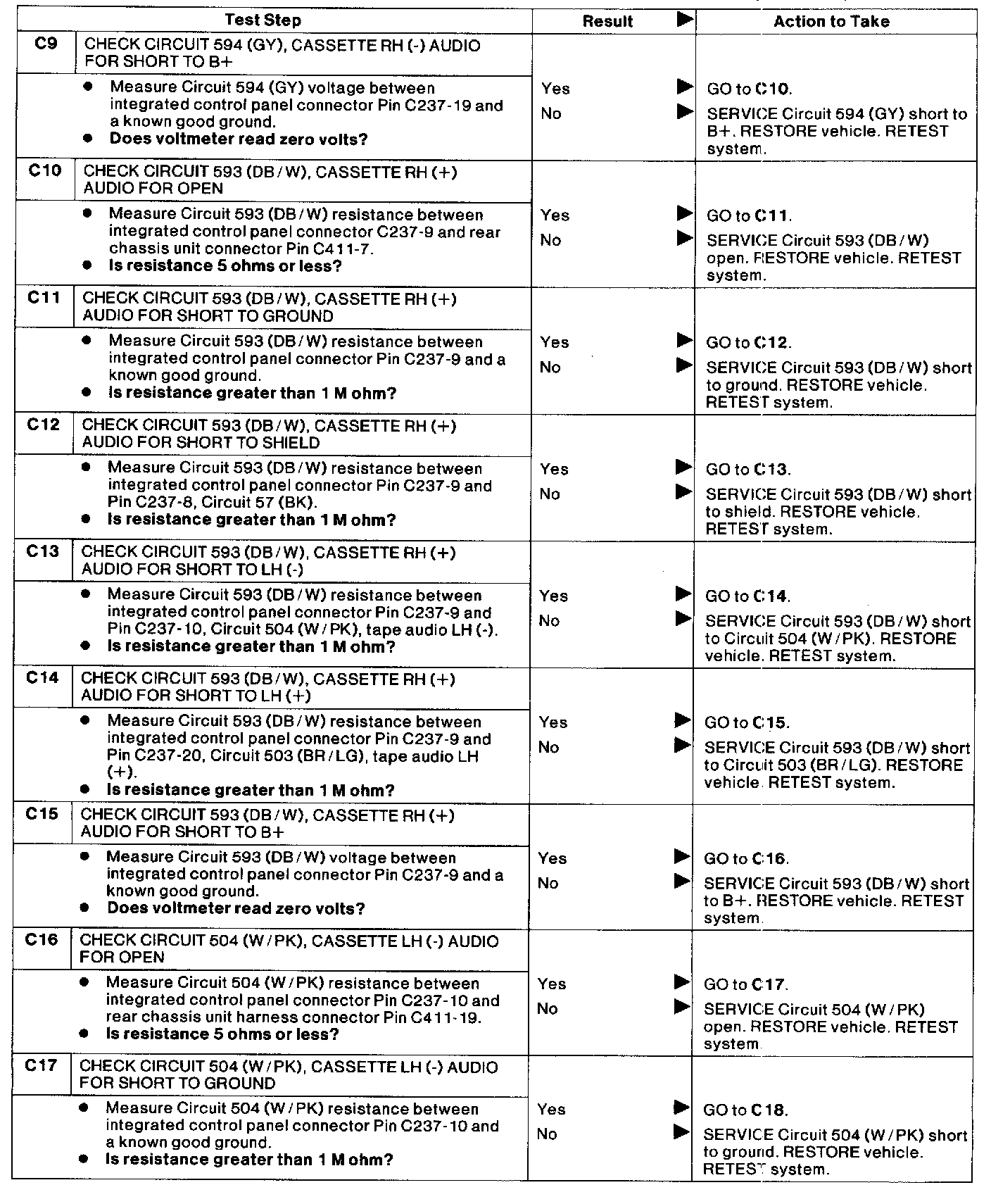

C9 - C17:






C18 - C24:
