Wagon

REMOVAL
1. Disconnect battery ground cable.
2. Open liftgate and remove quarter trim panel.
3. Disconnect wiring connectors.

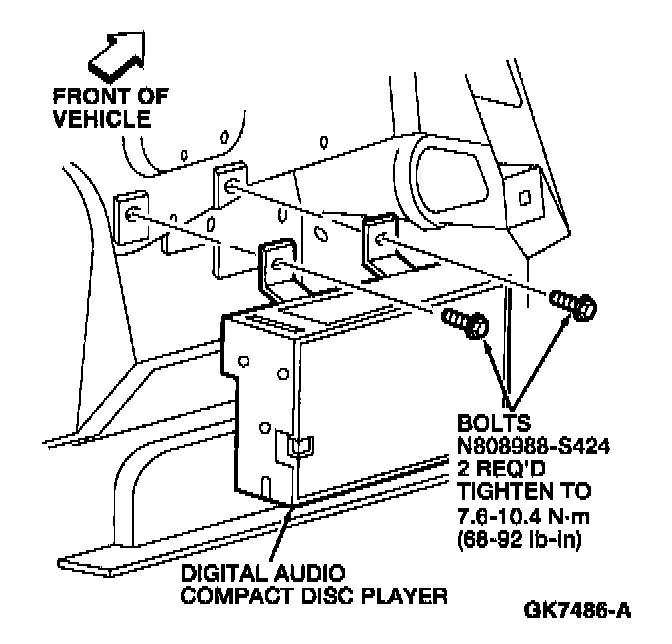

4. Remove two bolts and digital audio compact disc player from vehicle.

INSTALLATION
1. Install digital audio compact disc player and secure with two bolts.
2. Connect wiring connectors.
3. Install quarter trim panel.
4. Connect battery ground cable. Check for proper operation of radio, cassette and digital audio compact disc player.
