Wagon

REMOVAL

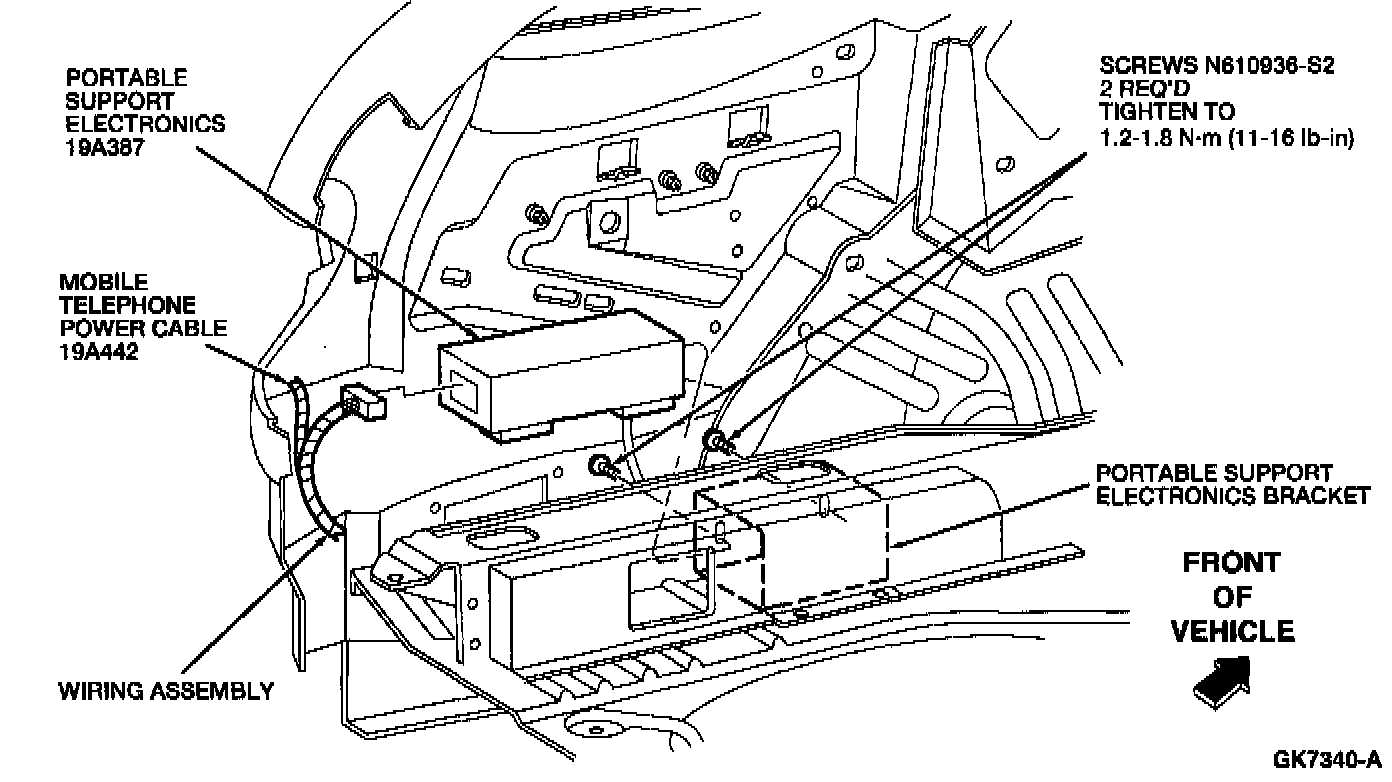

1. Disconnect battery ground cable.
2. Remove spare tire.
3. Disconnect mobile telephone power cable from portable support electronics.







4. Remove two screws and portable support electronics from vehicle.

INSTALLATION
1. Install portable support electronics and secure with two retaining screws. Tighten screws to 1.2-1.8 N.m (11-16 Lb-In).
2. Connect mobile telephone power cable to portable support electronics.
3. Install spare tire.
4. Connect battery ground cable.
