Sedan

NOTE: Use available Service Kit 18814 to replace mobile phone antenna.












REMOVAL

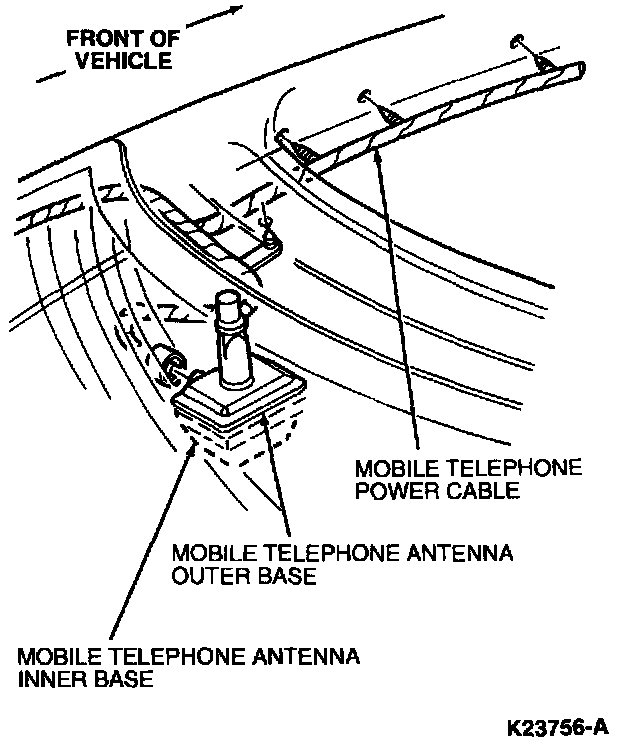

1. Disconnect multi-function control antenna cable from inner base of mobile telephone antenna.
2. Cut two-way tape retaining inner base to glass. To remove base, pull by hand. Do not pry on glass.
3. Remove radio antenna mast from outer base of mobile telephone antenna.
4. Cut two-way tape retaining outer base to glass. To remove base, pull by hand. Do not pry on glass.

INSTALLATION
1. Clean two-way tape from inside and outside of glass.
2. Remove protective covering from two-way tape on inner base of mobile telephone antenna and attach antenna base to glass.
3. Connect multi-function control antenna cable to inner base of mobile telephone antenna.
4. Use Ultra Clear Spray Glass Cleaner E4AZ-19C507-AA meeting Ford specification ESR-M14P5-A to thoroughly clean the glass surface.
5. Remove protective covering from two-way tape on outer base of mobile telephone antenna and attach antenna base to glass directly over inner base of mobile telephone antenna.
6. Install radio antenna mast to outer base of mobile telephone antenna.
