With Power Windows

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the door trim panel.







3. Remove the door pull.
- Remove the screws.







4. Detach the door speaker.
- Remove the screws.

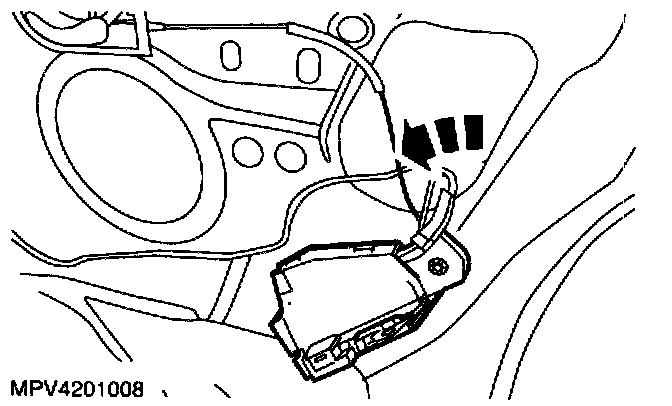

5. Remove the door speaker.
- Disconnect the multiplug.







6. Detach the watershield.
- Using a plastic knife (disposable cutlery), cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired.

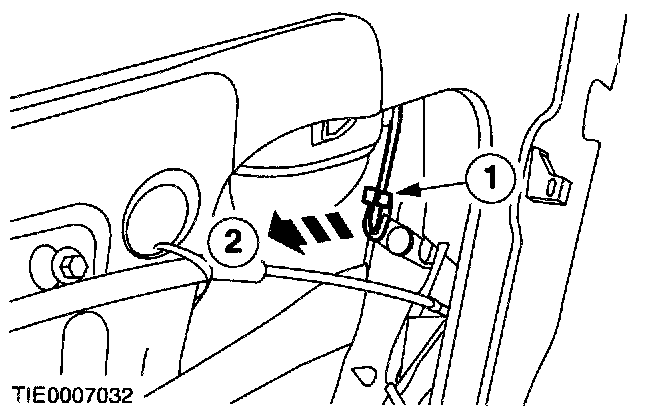

7. Detach the actuating rod.
1. Open the clip.
2. Detach the lower end of the rod from the lock.

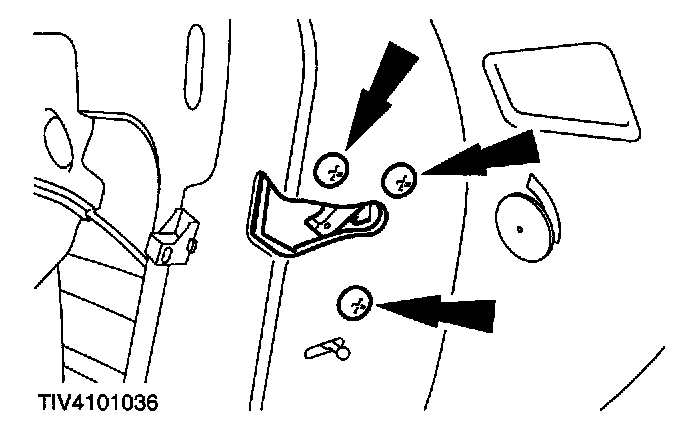

8. Remove the latch screws.







9. Remove the latch.
10. Connect the battery ground cable.







11. Connect the power window operating switch electrical connector.

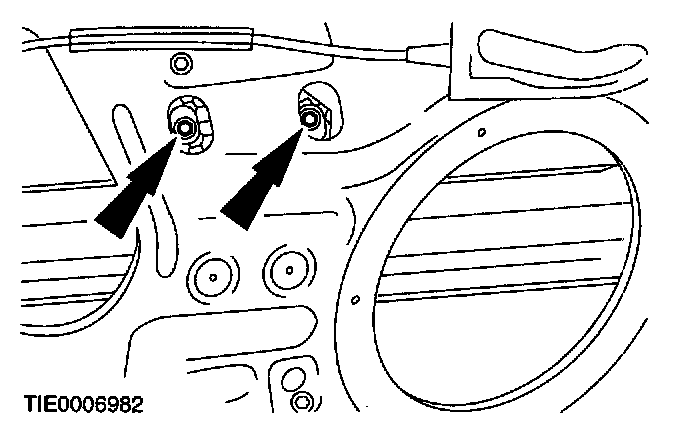

13. Remove the window retaining bolts.

NOTE: Align the window retaining bolts with the access holes.

14. Disconnect the battery ground cable.







15. Remove the door inner weatherstrip.

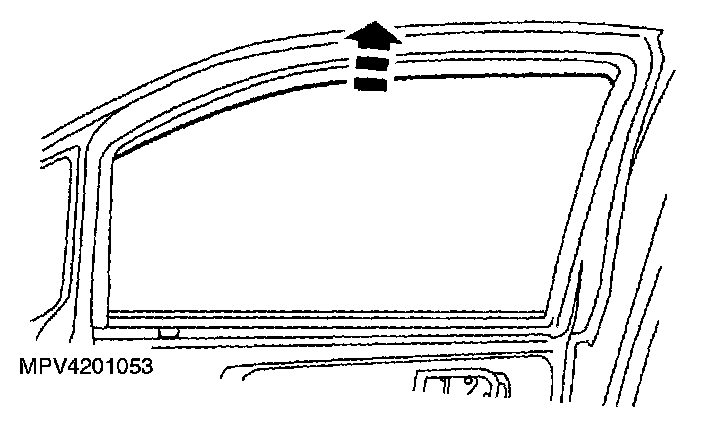

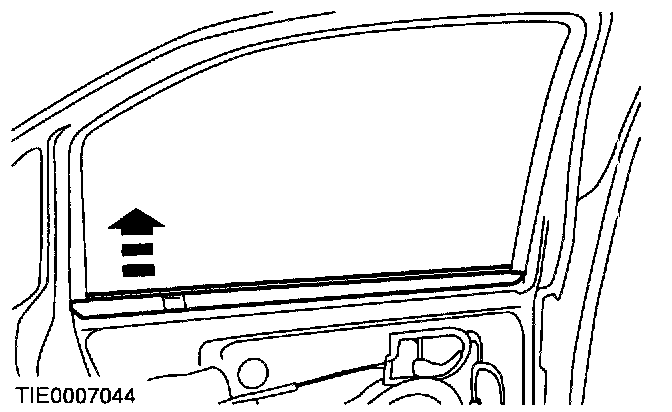

16. Raise and support the glass in the near closed position.

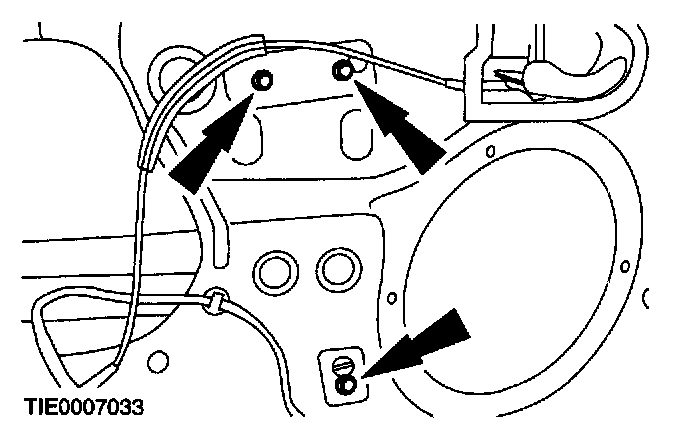

17. Detach the window regulator.
- Remove the regulator retaining bolts.
- Allow the winder mechanism to rest in the bottom of the door.

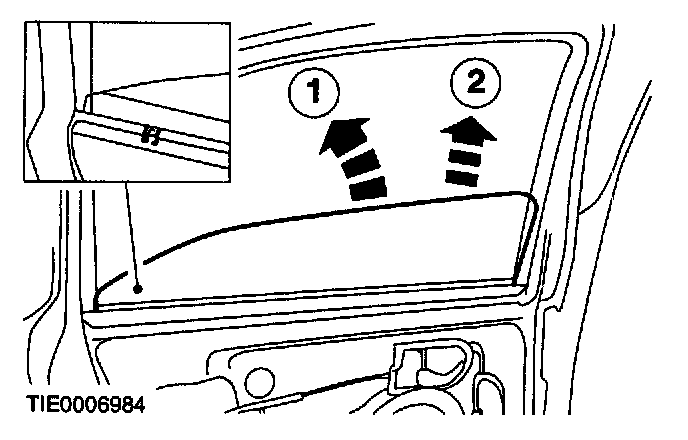

18. Remove the glass.
1. Tilt the glass past the window regulator and remove from the window run.
2. Remove the glass from the door.

INSTALLATION

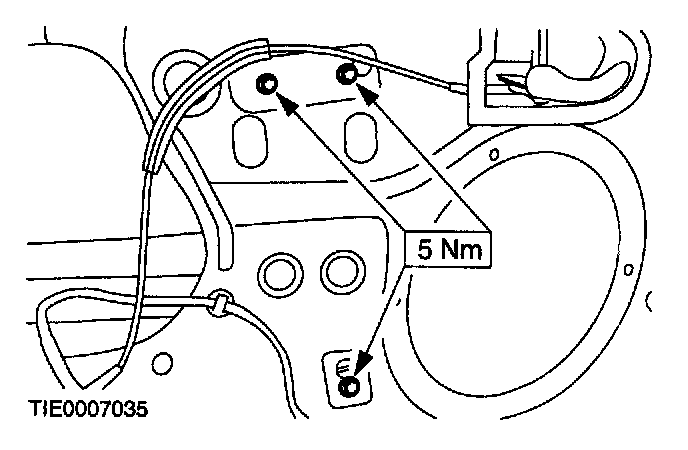

1. To install, reverse the removal procedure.
