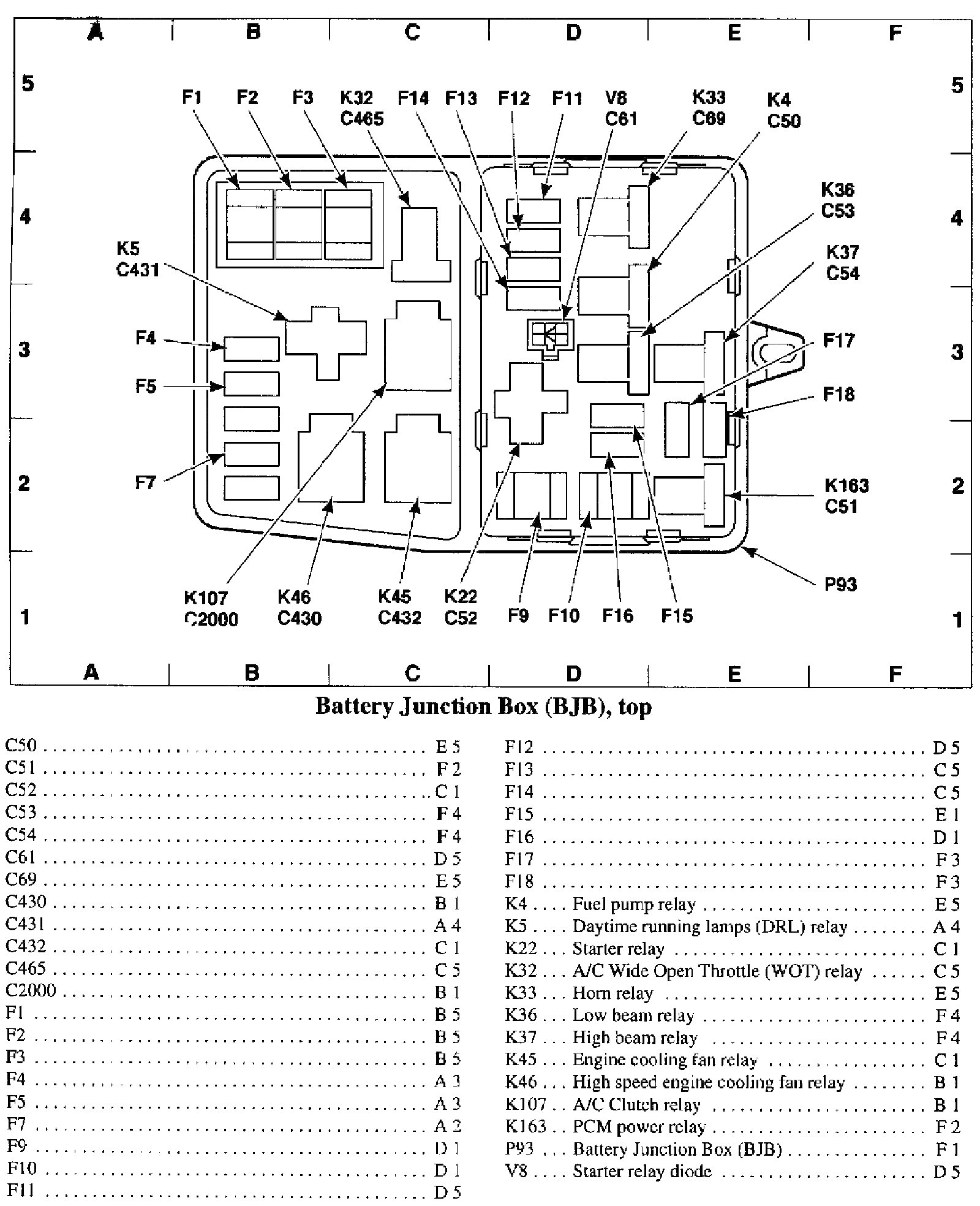

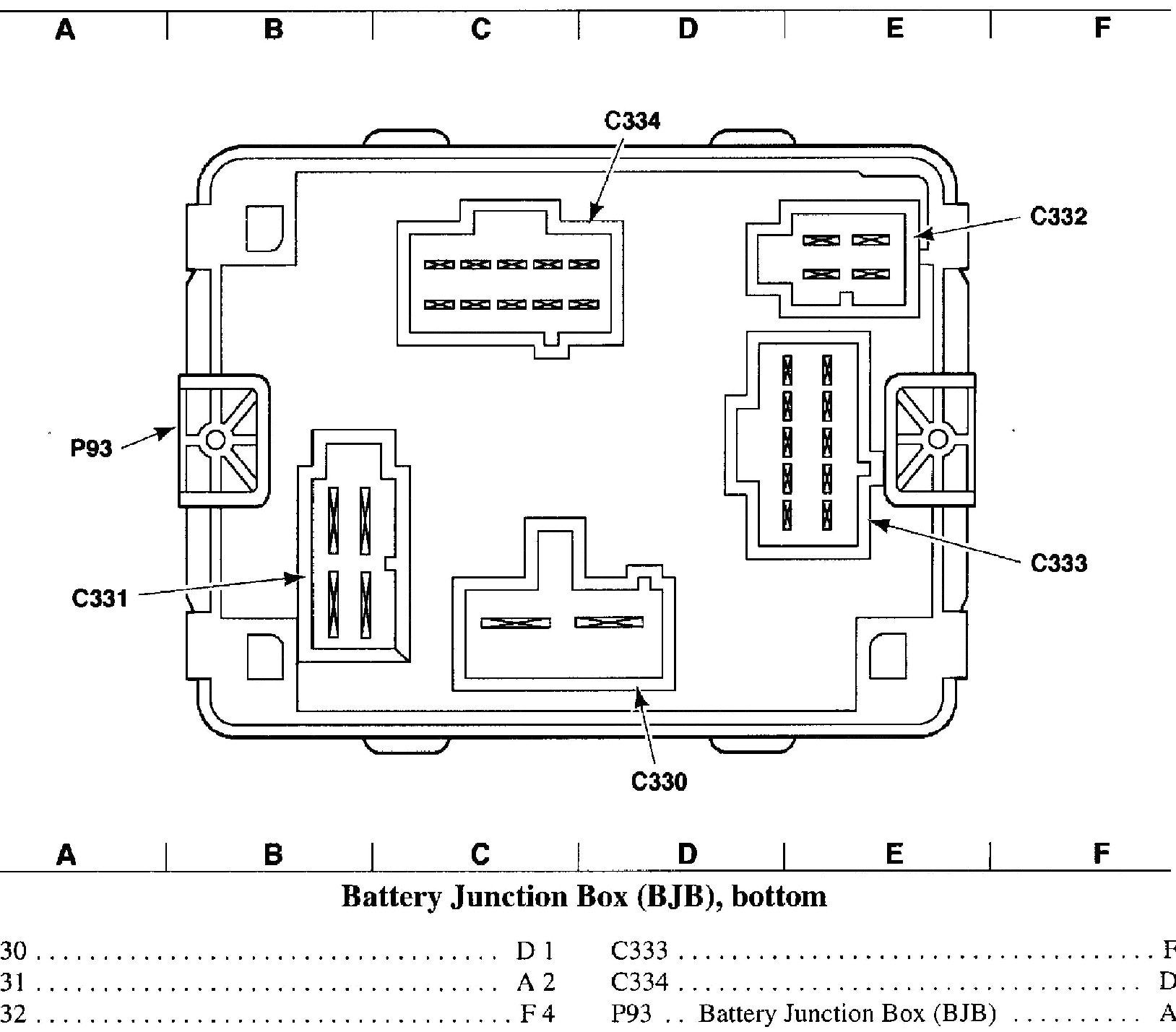

Battery Junction Box





Battery Junction Box Built Before May 3, 1999:
















The Battery Junction Box is located in the engine compartment on the left hand side.
