Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Remove the splash shield - front wheel housing.

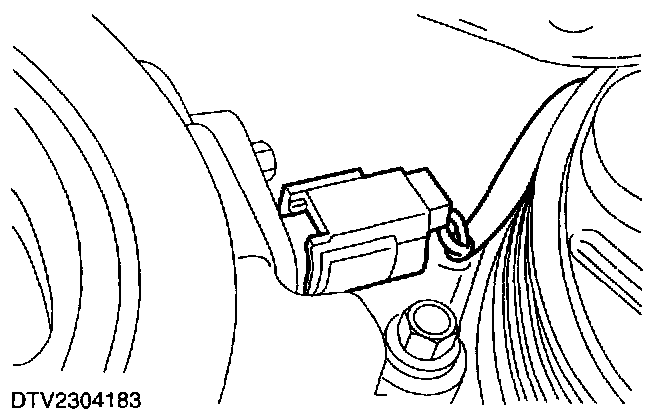

2. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

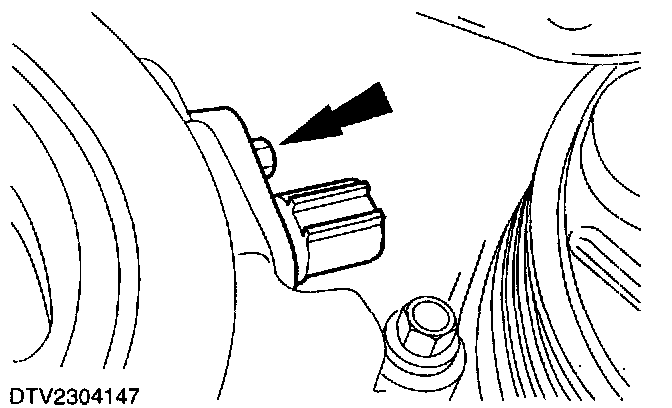

3. Remove the CKP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
