Air Flow Meter/Sensor: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.

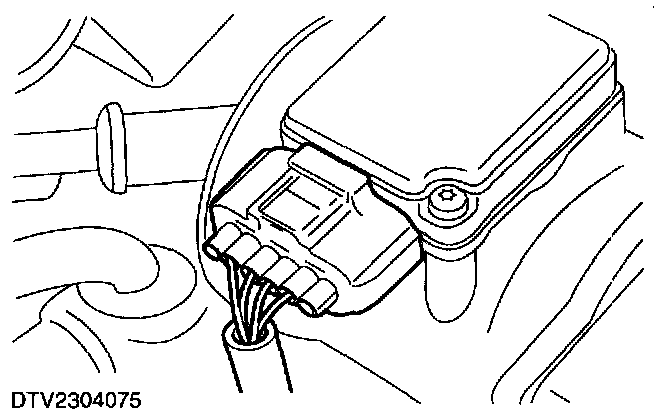

2. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

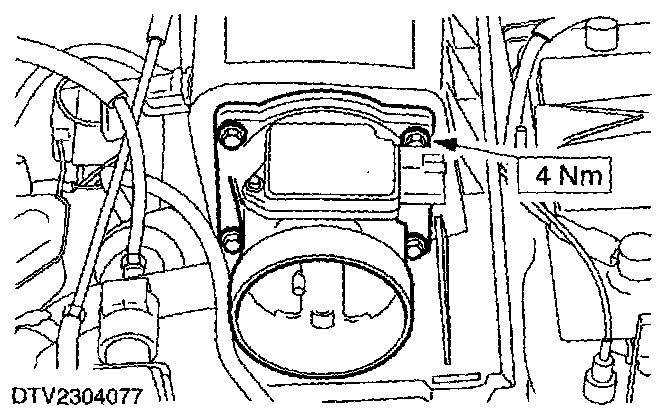

3. Remove the MAF sensor.

INSTALLATION







1. Install a new MAF sensor gasket.







2. To install the MAF sensor, reverse the removal procedure.
