A/C Cycling Switch

REMOVAL
1. Remove the battery tray.

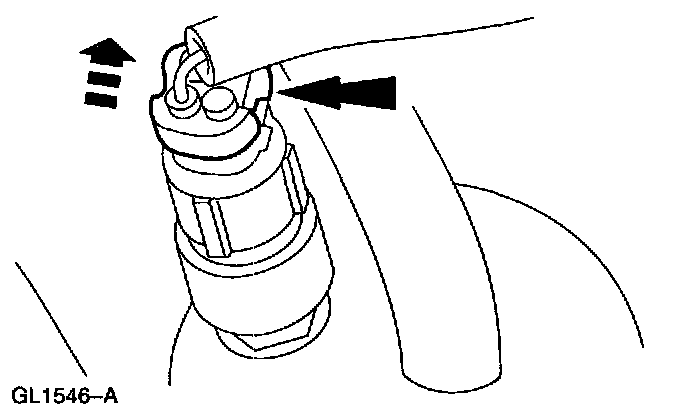

2. Disconnect the A/C cycling switch electrical connector.

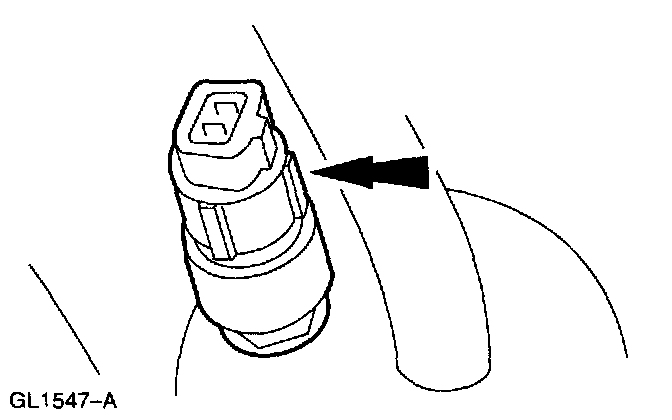

3. Remove the A/C cycling switch from the top of the suction accumulator.

INSTALLATION
1. To install, reverse the removal procedure.
^ Check A/C system for normal operation.

NOTE:
^ Replace the O-rings and coat them with refrigerant oil.
^ When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 6 km (10 miles) or more to relearn the strategy.
