Rear

Removal
1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.





4. Remove the wheel speed sensor.

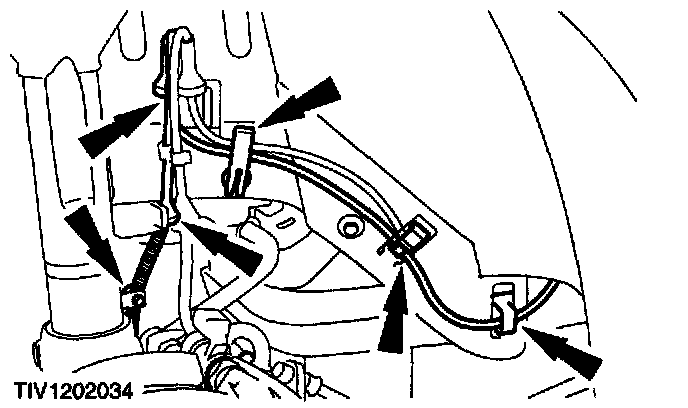

5. Detach the wheel speed sensor wiring harness from the support brackets and clips.
6. Lower the vehicle.





7. Raise the rear seat cushion.
1 Push the cushion towards the backrest.
2 Pull the cushion up.

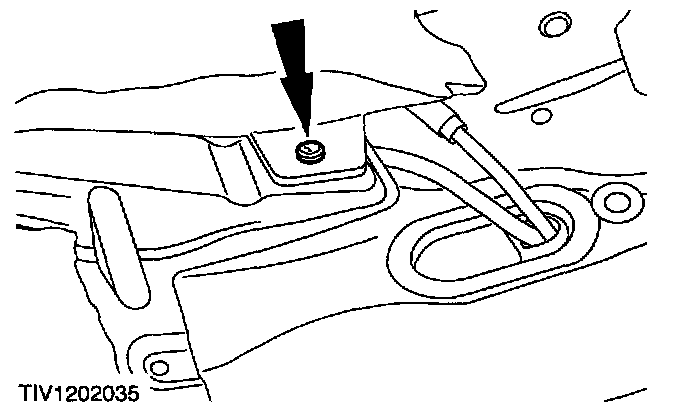

8. Remove the screw.
- Push the trim to one side.

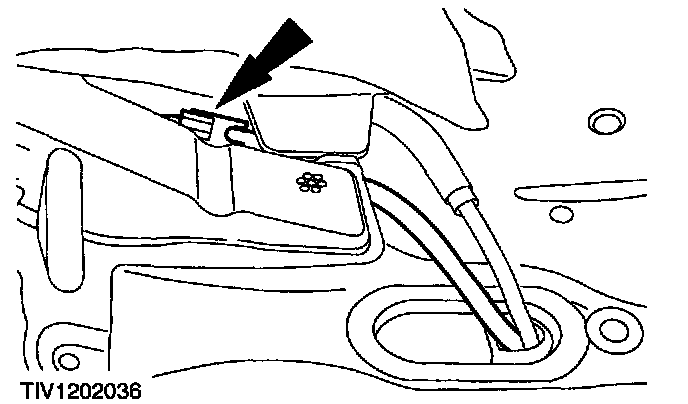

9. Disconnect the wheel speed sensor electrical connector.
- Pull the cable through the grommet.

Installation








1. To install, reverse the removal procedure.
