Ignition Cable: Service and Repair

REMOVAL
1. Remove the ignition coil.

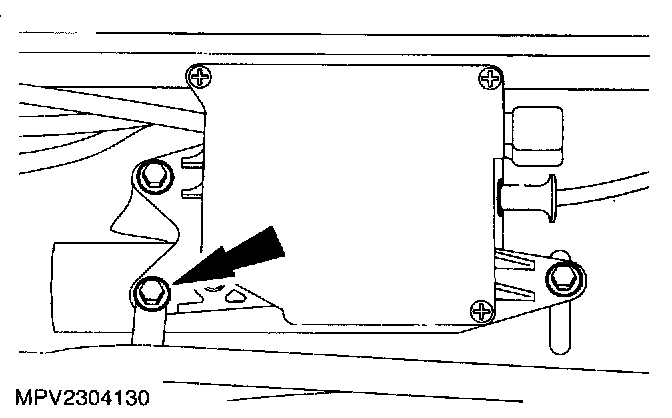

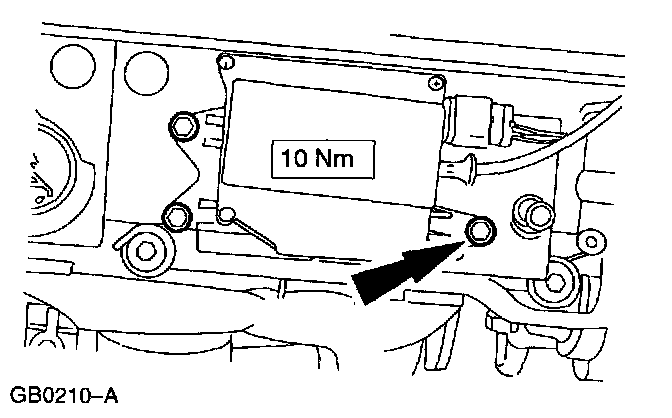

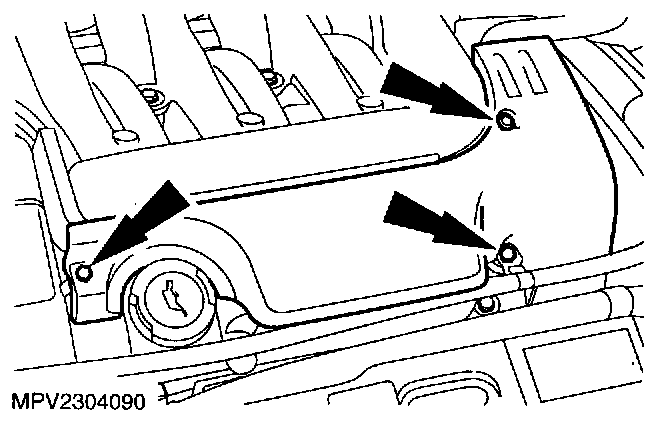

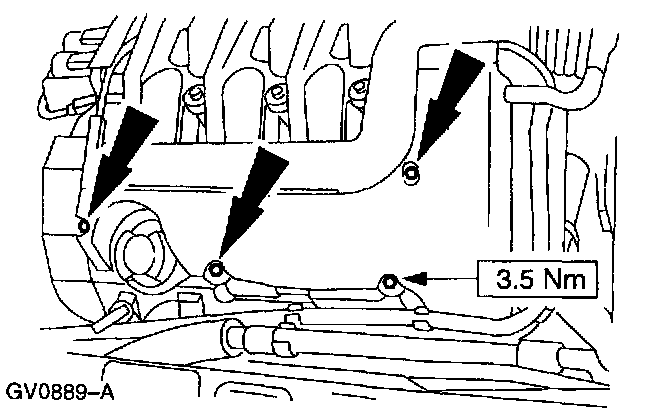

2. Remove the engine cover.

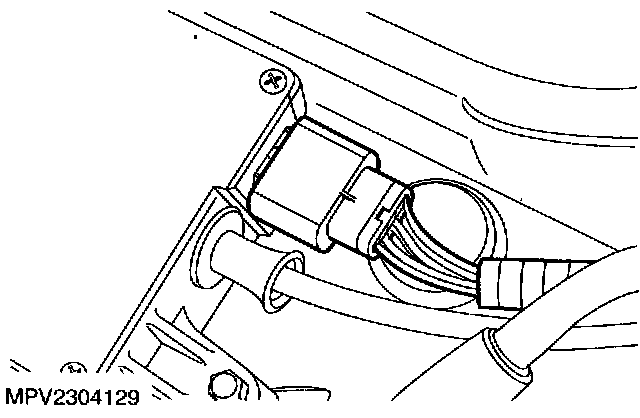

3. Disconnect the variable intake system actuator electrical connector.







4. Remove the variable intake system actuator retaining bolts.

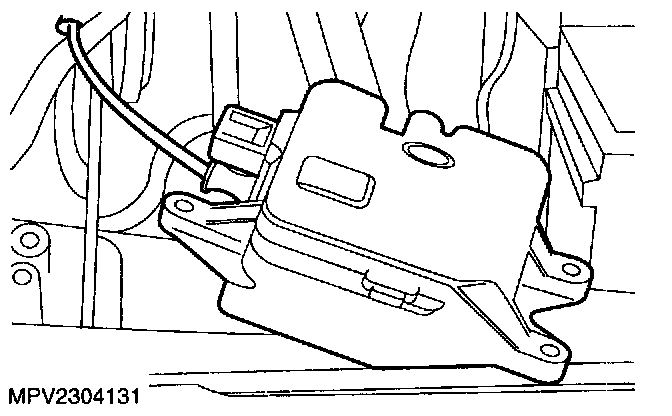

5. Position the variable intake system actuator to one side.

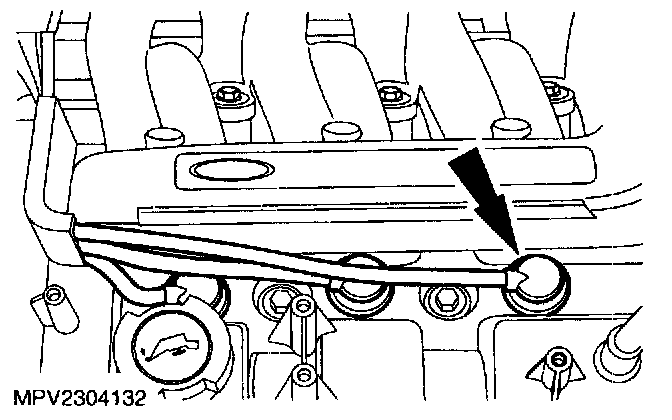

6. Disconnect the six spark plug wires from the spark plugs.

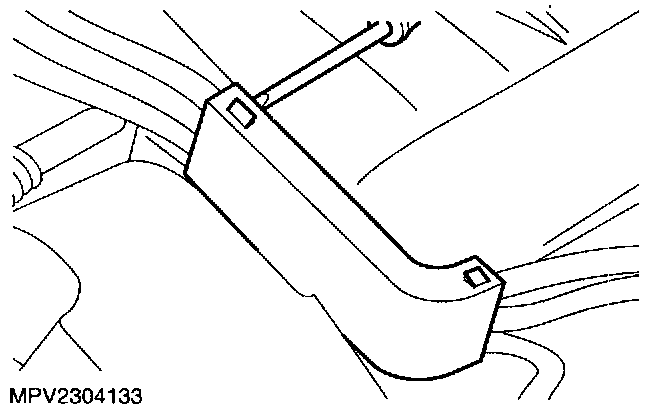

7. Pry the spark plug wire separators open.
8. Remove the spark plug wires.

INSTALLATION












1. To install; reverse the removal procedure.
