Canister Purge Control Valve: Service and Repair

REMOVAL
1. Remove the ignition coil.

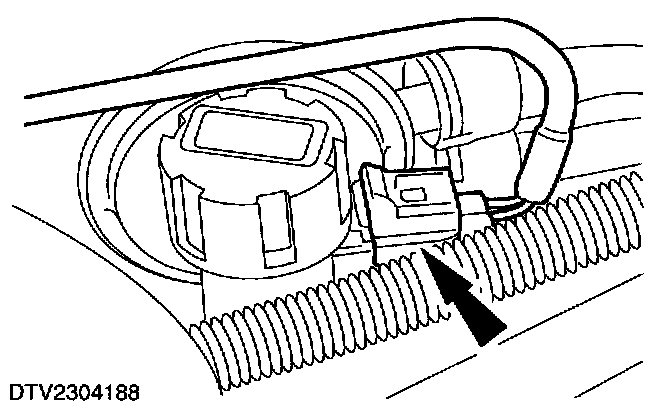

2. Disconnect the EVAP canister purge valve electrical connector.

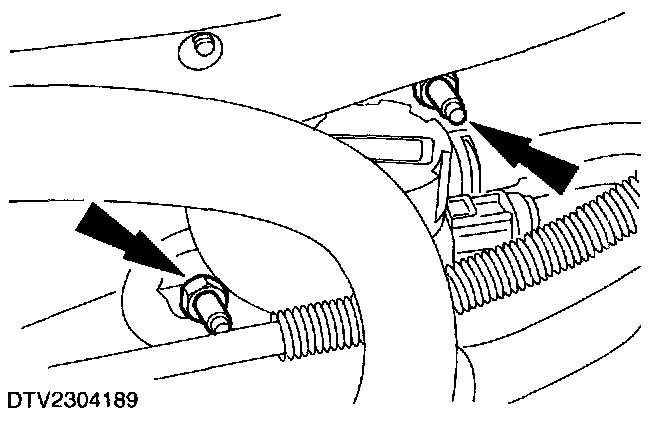

3. Remove the EVAP canister purge valve retaining nuts.

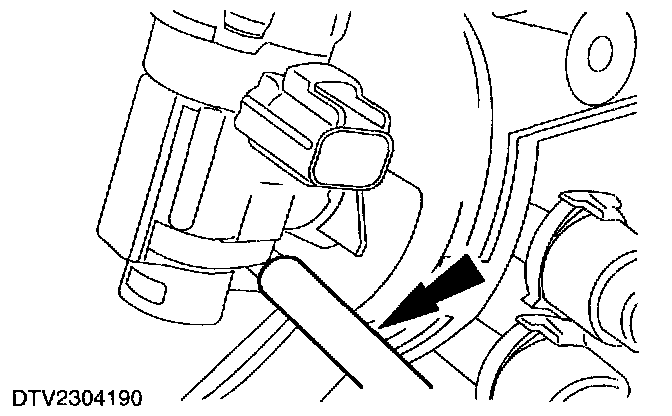

4. Disconnect the vacuum hose from the EVAP canister purge valve.

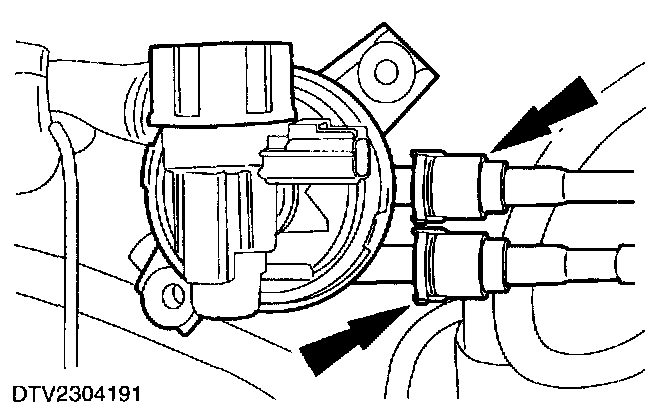

5. Disconnect the vapor tubes and remove the EVAP canister purge valve.

INSTALLATION
1. To install, reverse the removal procedure.
