Rear Bank

EGO Sensor Wrench:

SPECIAL SERVICE TOOLS

REMOVAL
1. Remove the engine splash shield.







2. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.







3. Detach the CMS wiring harness from the retaining clip on the transmission housing.







4. Remove the CMS.

INSTALLATION

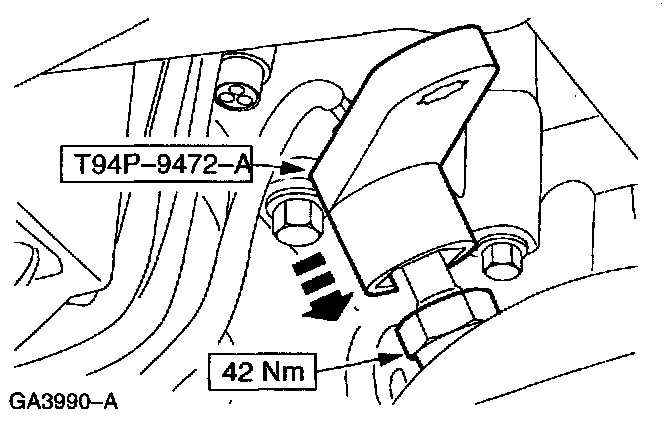

1. Use the Oxygen Sensor Wrench to install the heated oxygen sensor.
2. To install, reverse the removal procedure.
