Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL

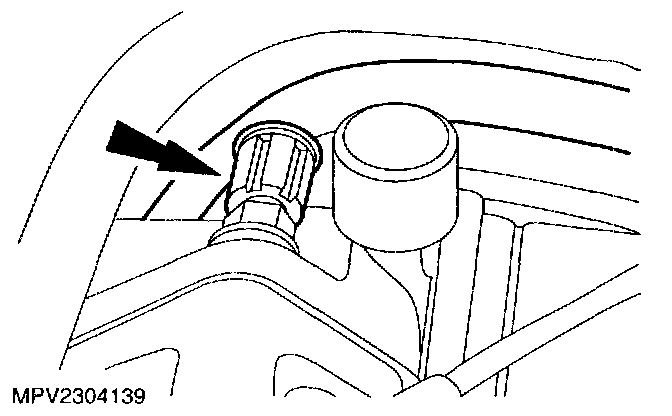

1. Disconnect the vacuum hose from the Exhaust Gas Recirculation (EGR) valve.

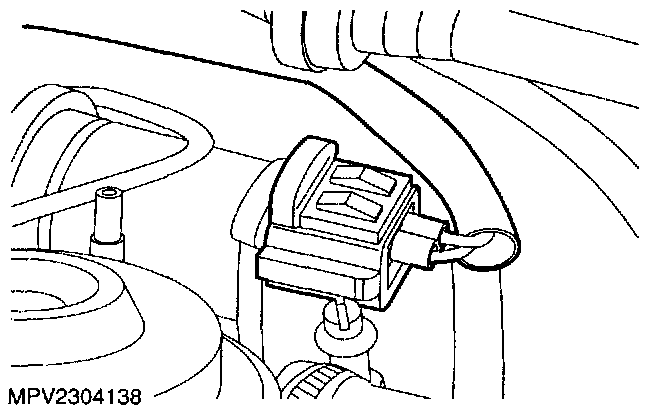

2. Disconnect the Idle Air Control (IAC) valve electrical connector.

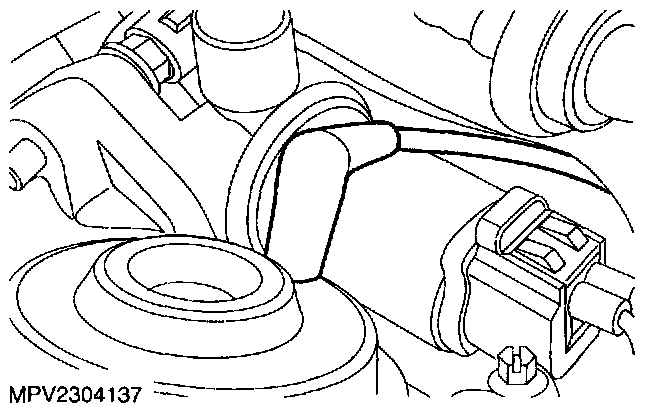

3. Detach the IAC valve wiring harness from the stud.







4. Remove the IAC valve.
- Remove the two nuts.

INSTALLATION

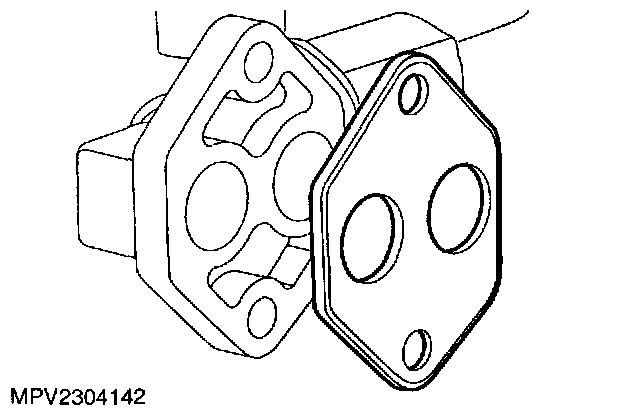

1. Install a new IAC valve gasket.







2. To install, reverse the removal procedure.
