Home >> Mercury >> 1999 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Warning Devices >> D: Headlamps On Reminder Chime Not Operating Properly

D: Headlamps On Reminder Chime Not Operating Properly

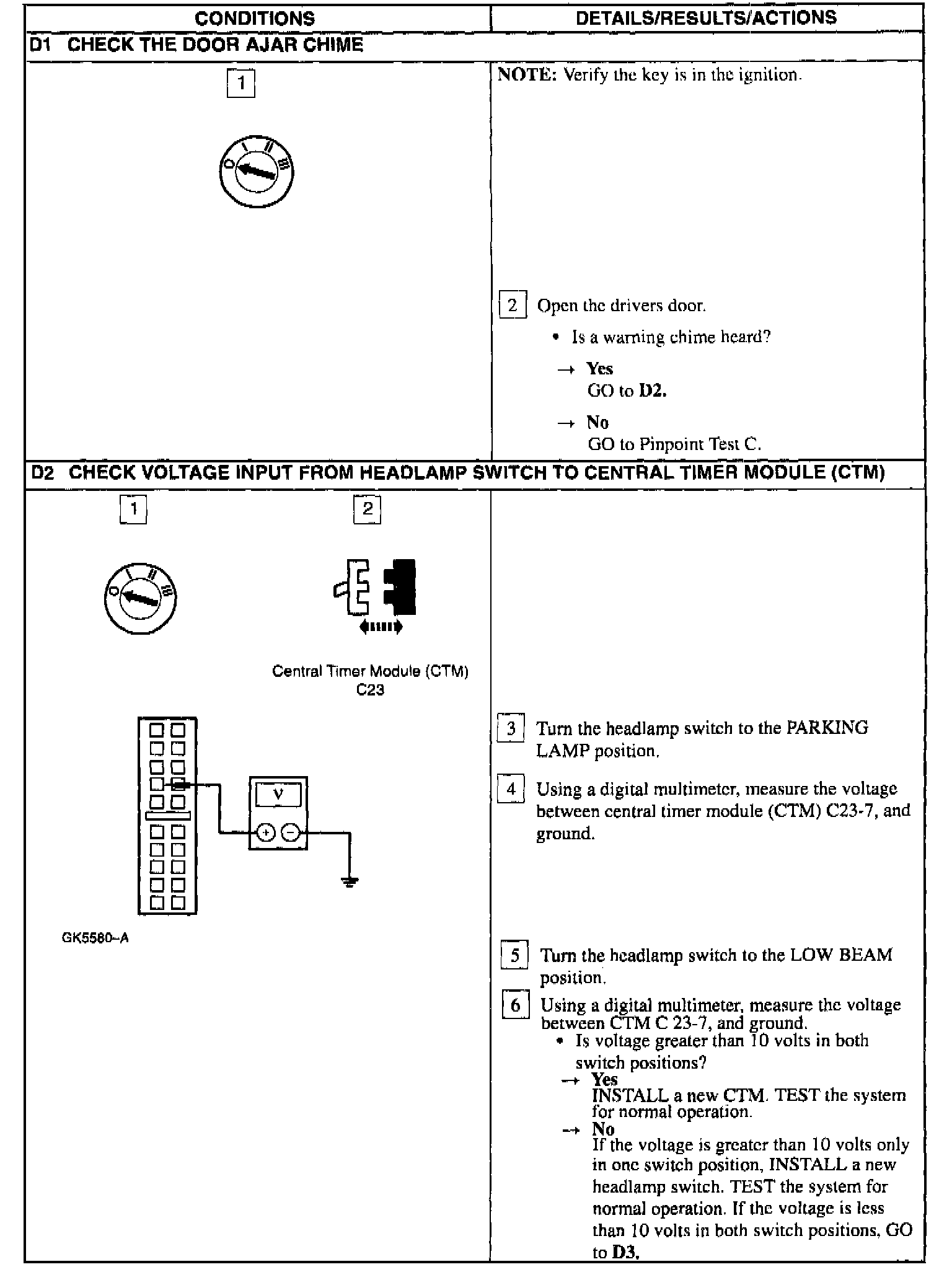

D1 - D2:

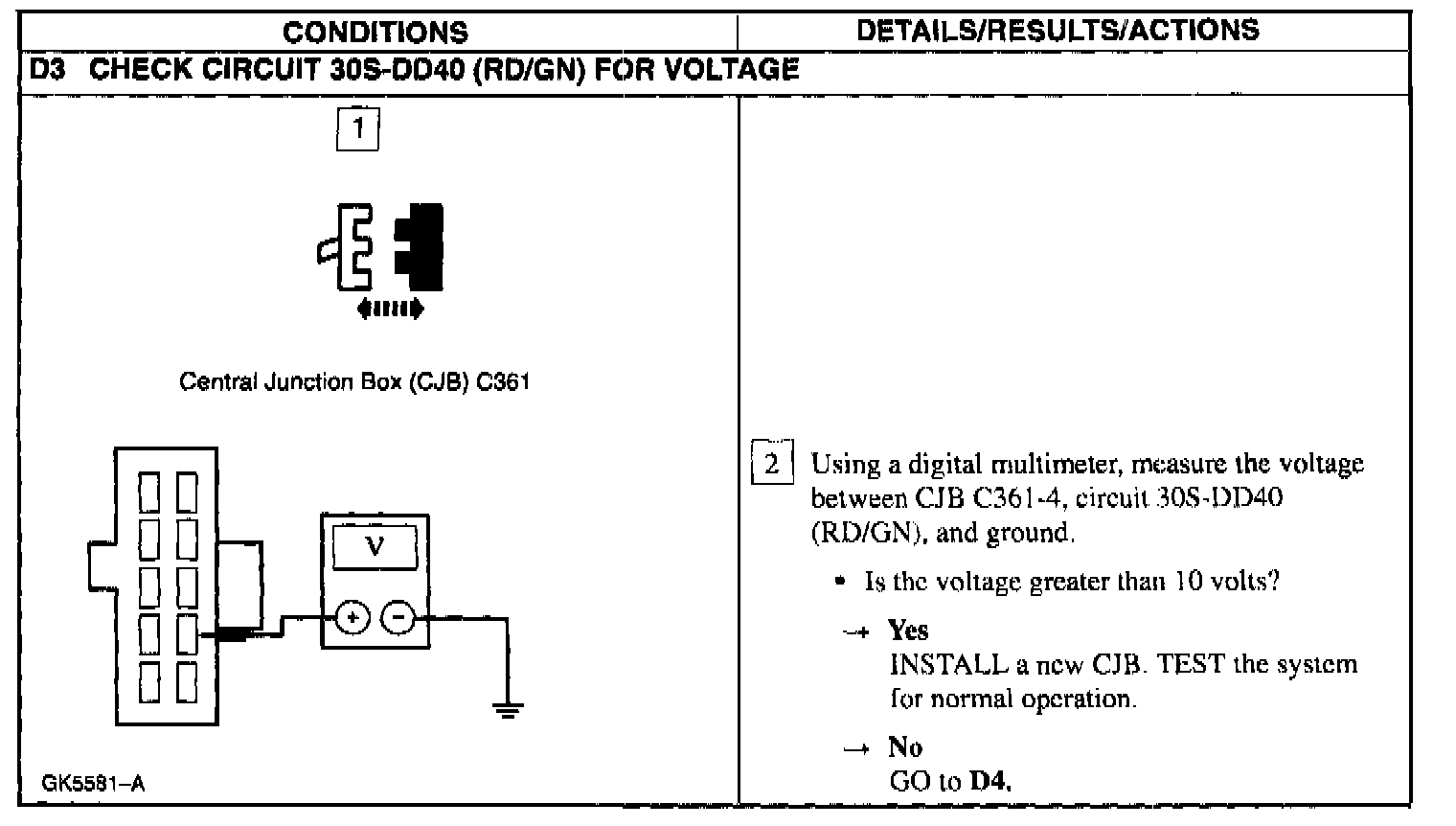

D3:

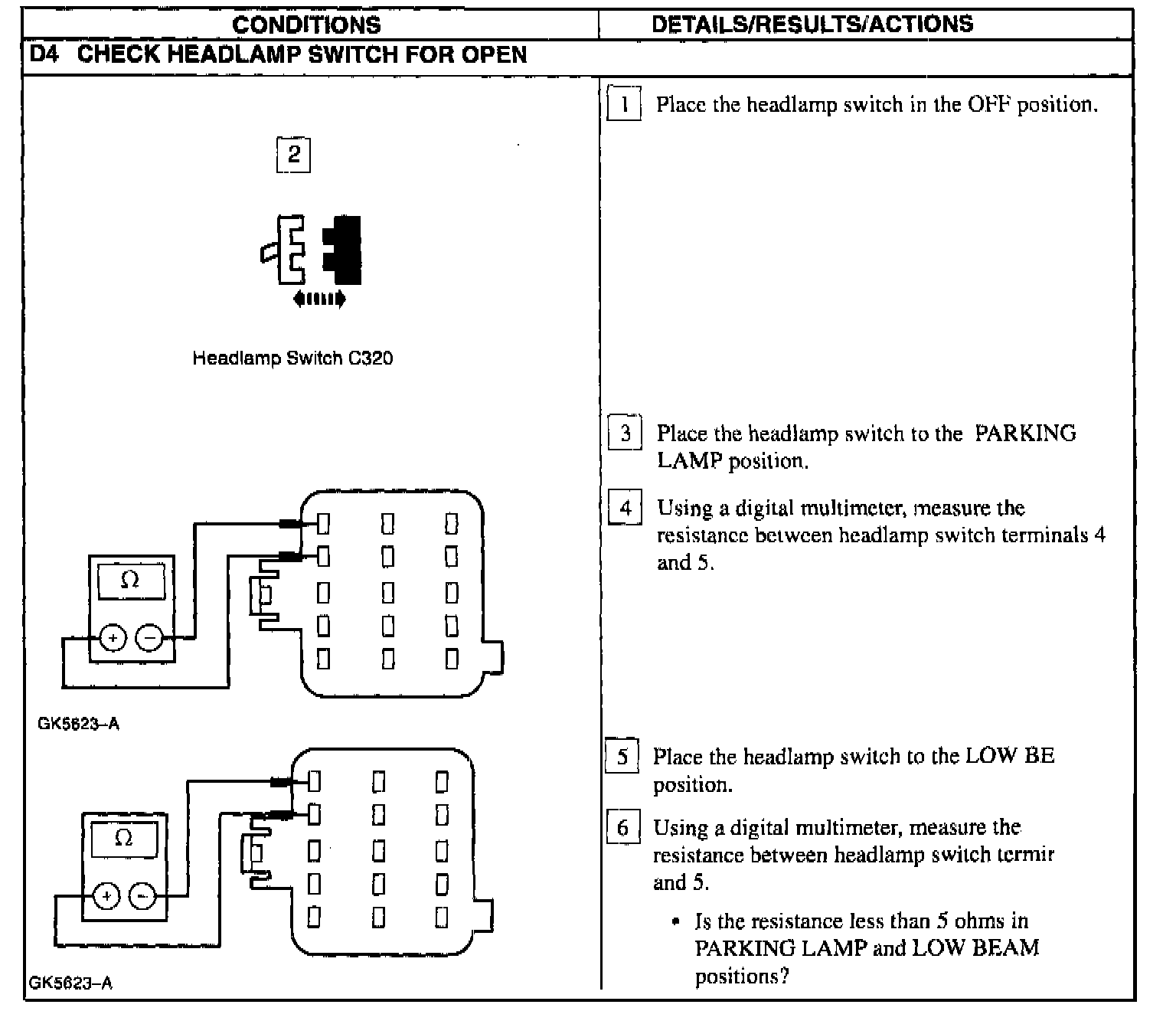

D4:
