Air Cleaner Fresh Air Duct/Hose: Service and Repair

REMOVAL

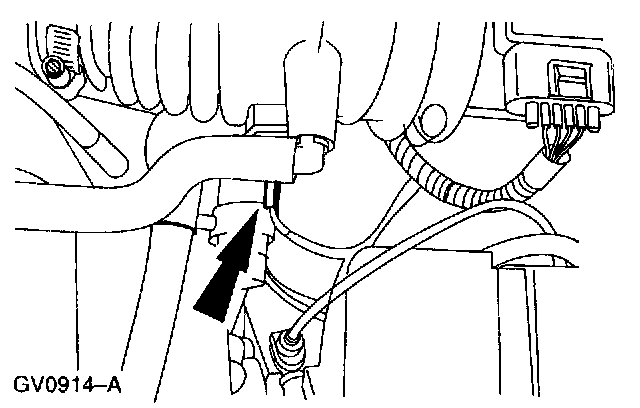

1. SVT only, disconnect the Intake Air Temperature (IAT) sensor electrical connector.







2. Disconnect the intake air bypass hose and the Positive Crankcase Ventilation (PCV) hoses from the air cleaner outlet pipe.







3. Remove the air cleaner outlet pipe.

INSTALLATION
1. To install, reverse the removal procedure.
