Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Removal
1. Raise and support the vehicle.
2. Remove the radiator lower hose tube.





3. Remove the oil level indicator.





4. Remove the oil level indicator tube.
- Remove the nut.

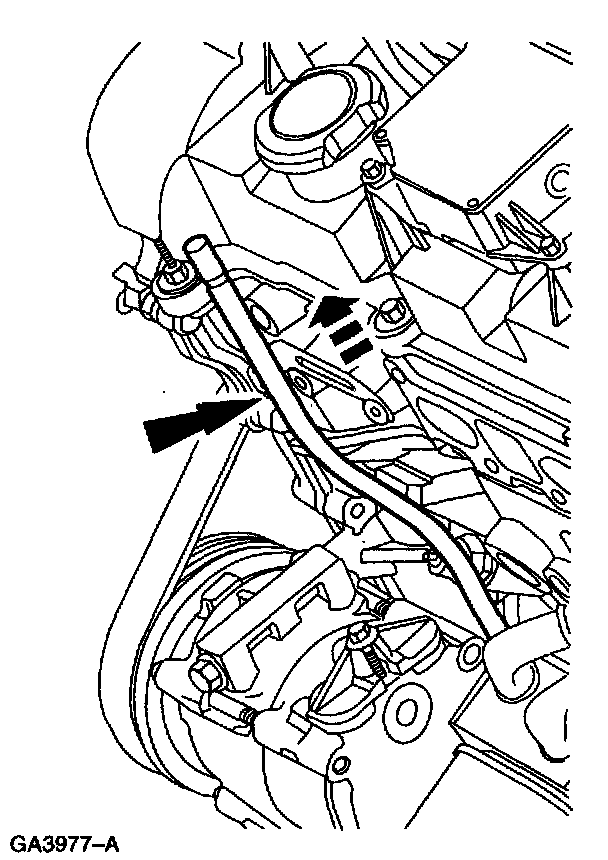

5. Remove the oil level indicator tube.
- Use a twisting motion to remove the tube from the lower cylinder block.

Installation

1. NOTE: Inspect O-ring seal before installing the oil level indicator tube.





To install, reverse the removal procedure.
