Thermostat: Service and Repair

Removal
1. Remove the thermostat housing.





2. Remove the thermostat.

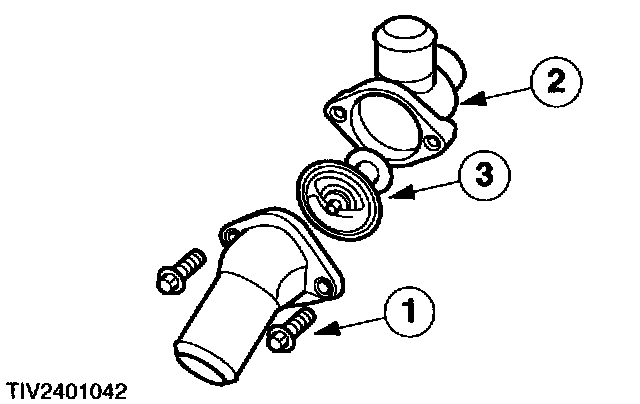

1 Remove the two bolts.
2 Separate the housing.
3 Remove the thermostat.

Installation

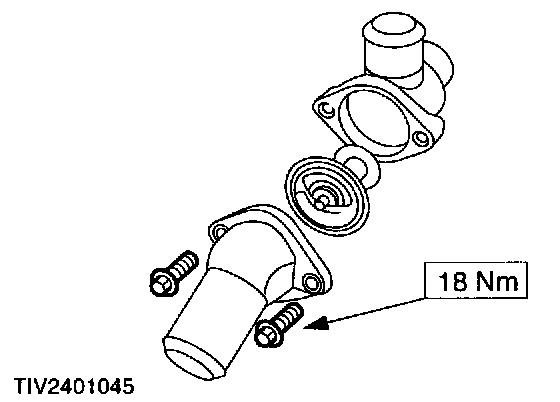

1. To install, reverse the removal procedure.
