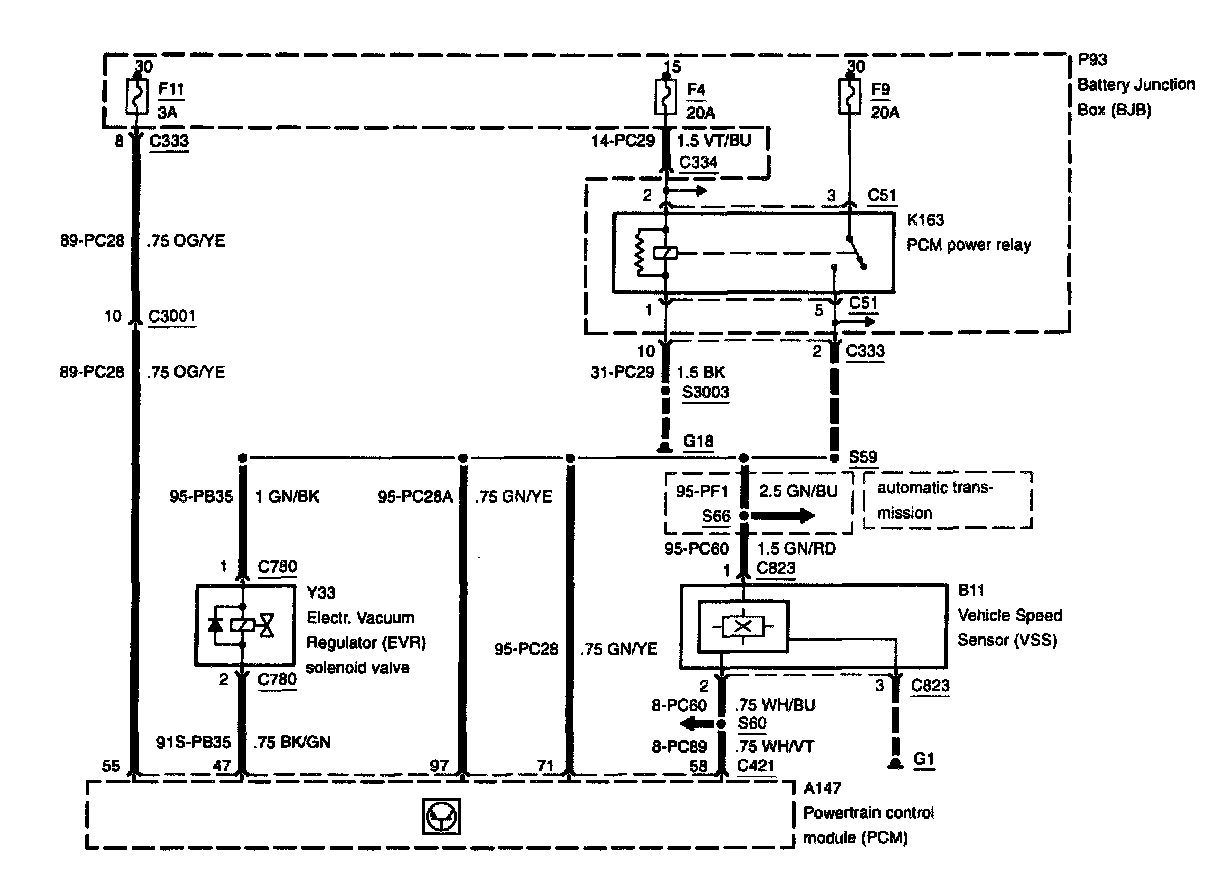

DETAILED DIAGRAMSDiagram 303-14b-00-1:
Battery Junction Box
Electronic Vacuum Regulator Solenoid Valve
Fuse F4
Fuse F9
Fuse F11
Powertrain Control Module
Powertrain Control Module Power Relay
Vehicle Speed Sensor

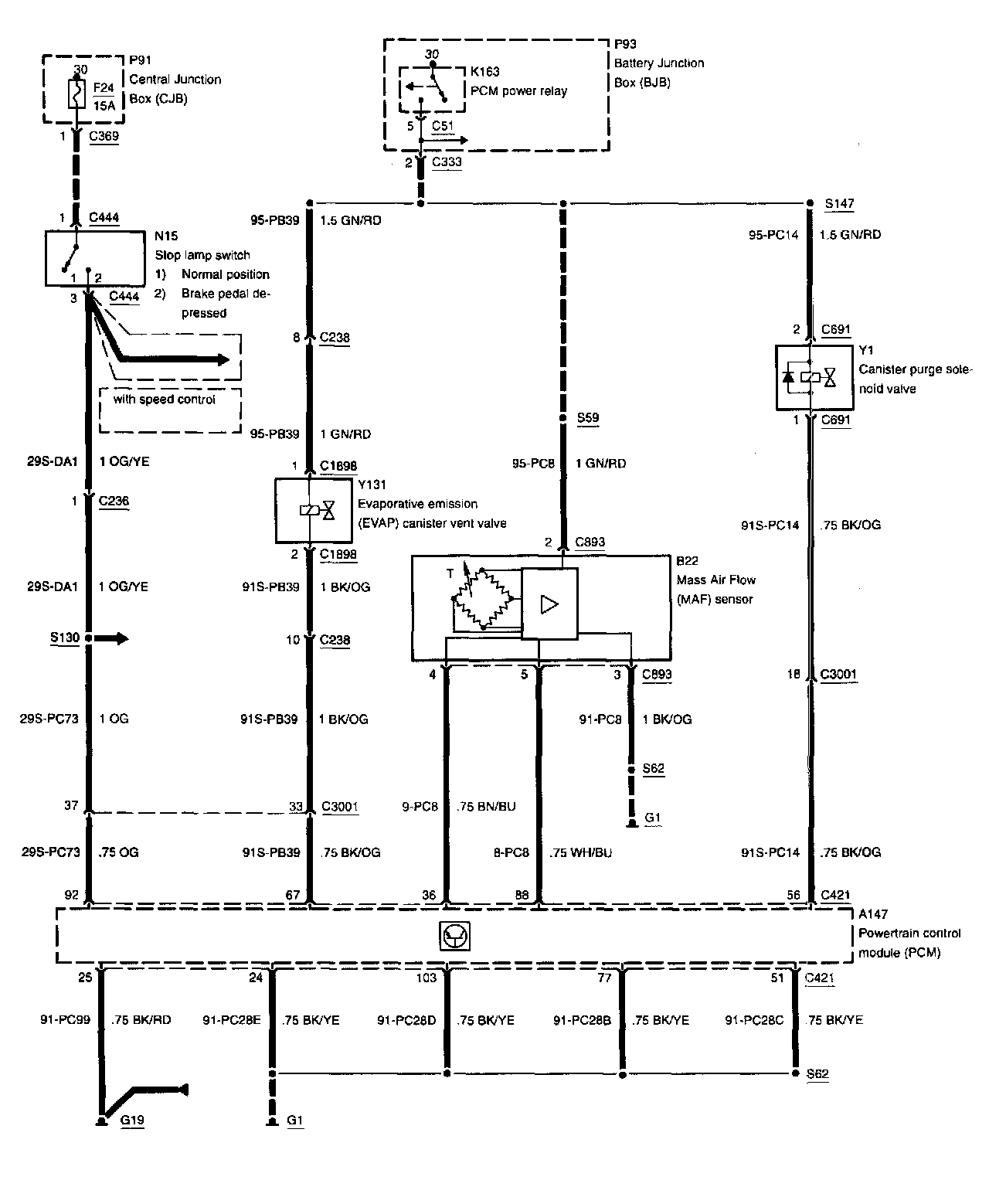

Diagram 303-14b-00-2:
Battery Junction Box
Canister Purge Solenoid Valve
Central Junction Box
Evaporative Emission Canister Vent Valve
Fuse F24
Mass Air Flow Sensor
Powertrain Control Module
Powertrain Control Module Power Relay
Stop Lamp Switch

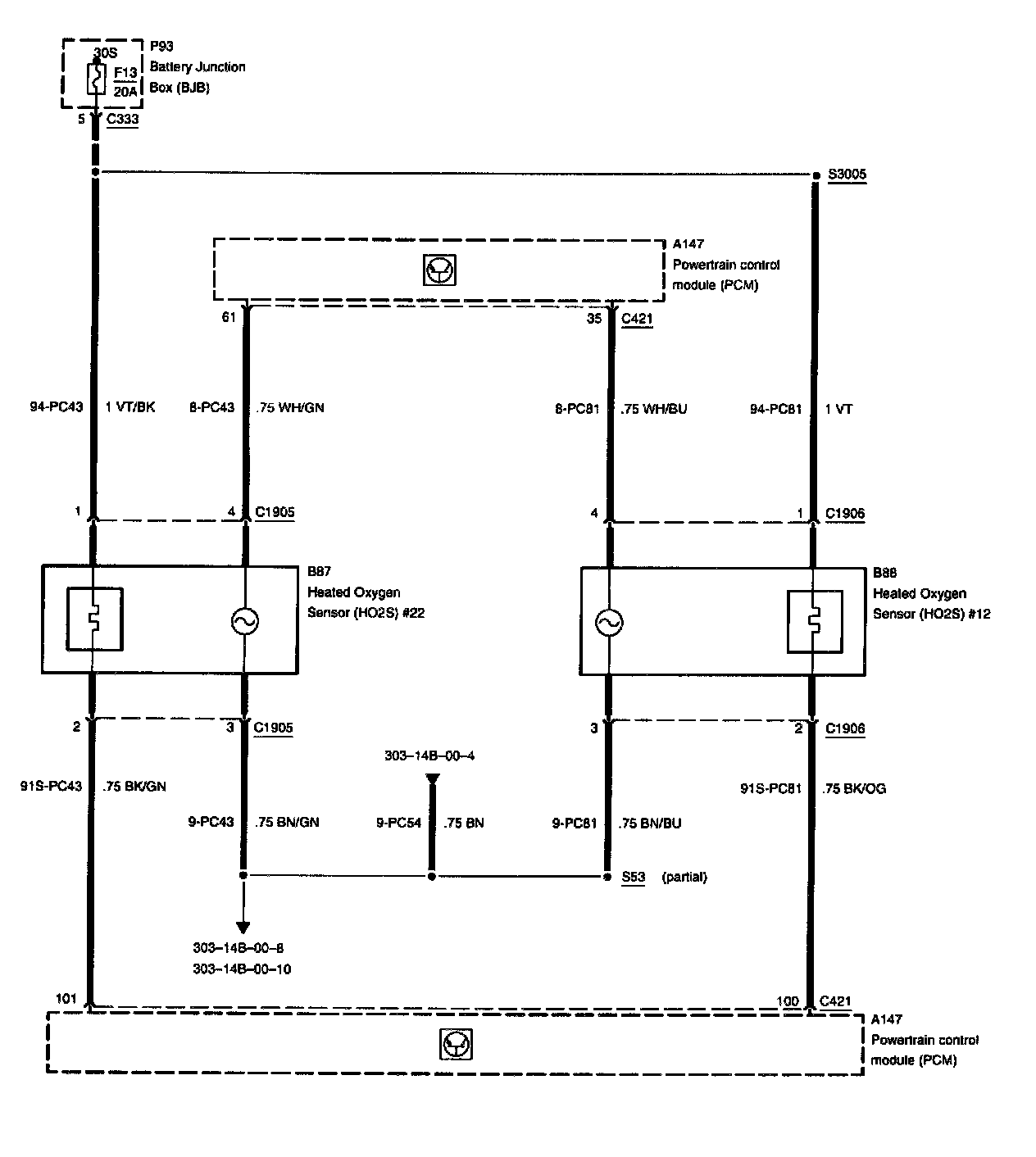

Diagram 303-14b-00-3:
Battery Junction Box
Fuse F13
Heated Oxygen Sensor #12
Heated Oxygen Sensor #22
Powertrain Control Module

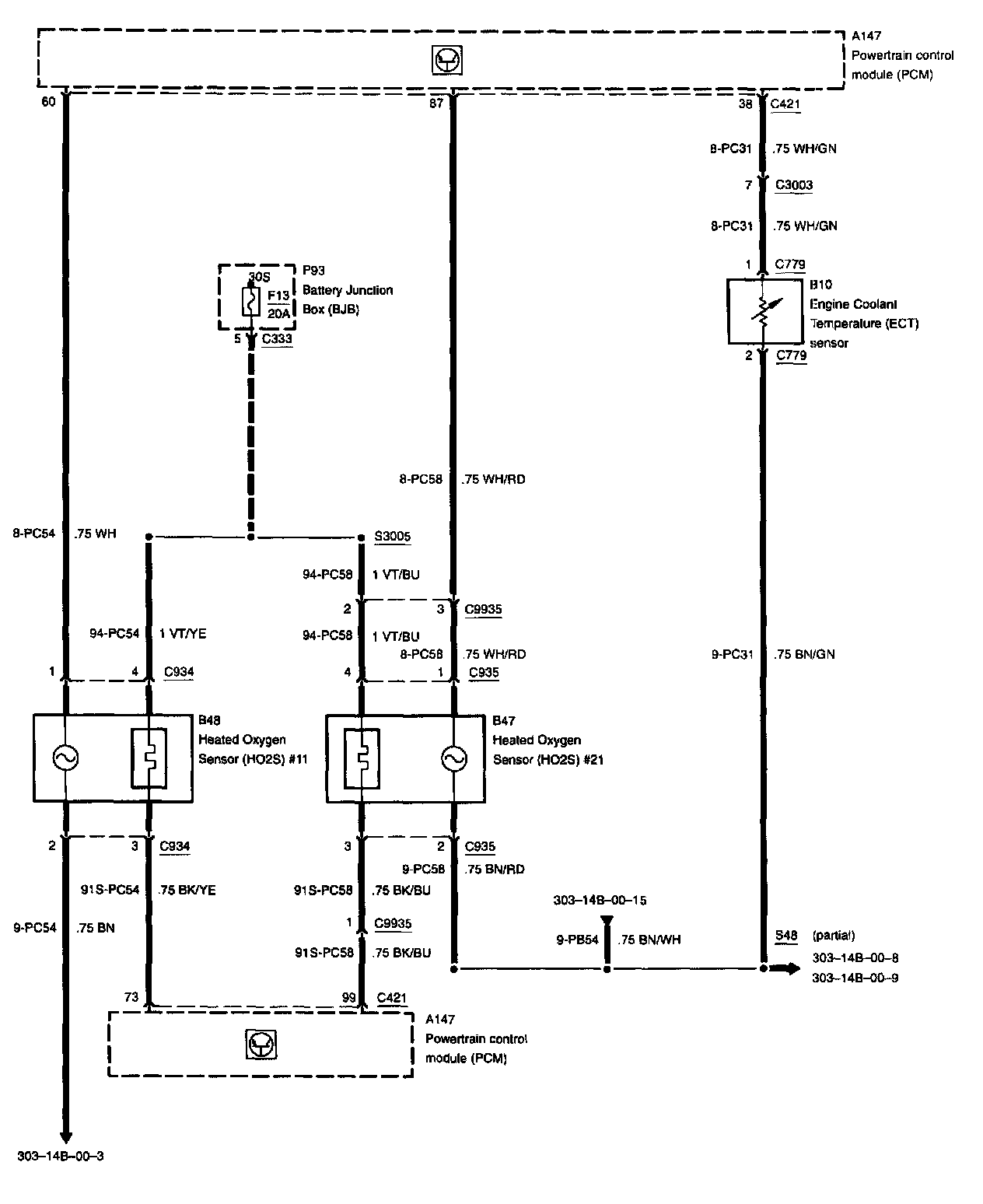

Diagram 303-14b-00-4:
Battery Junction Box
Engine Coolant Temperature Sensor
Fuse F13
Heated Oxygen Sensor #11
Heated Oxygen Sensor #21
Powertrain Control Module

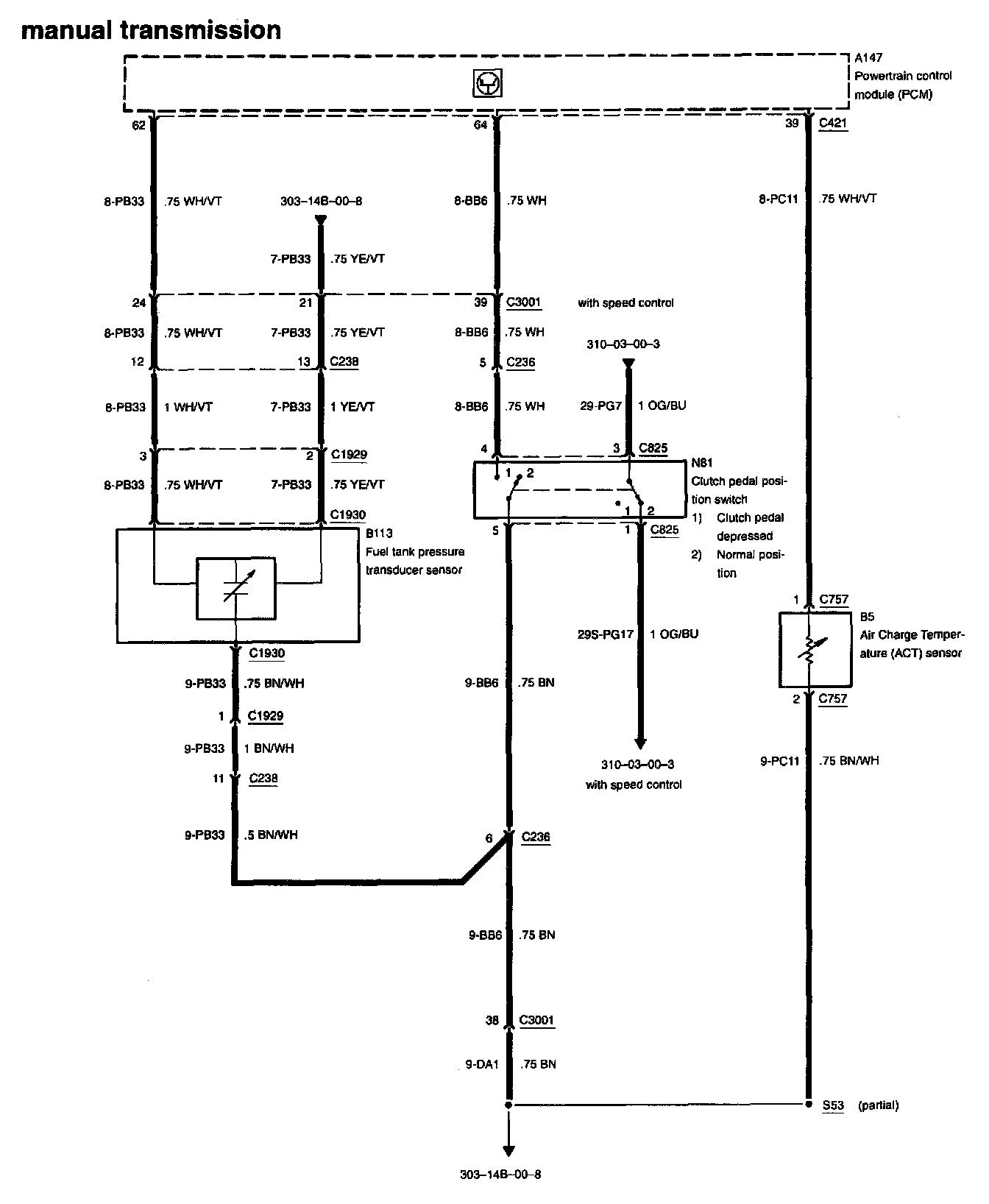

Diagram 303-14b-00-5:
Air Charge Temperature Sensor
Clutch Pedal Position Switch
Fuel Tank Pressure Transducer Sensor
Powertrain Control Module

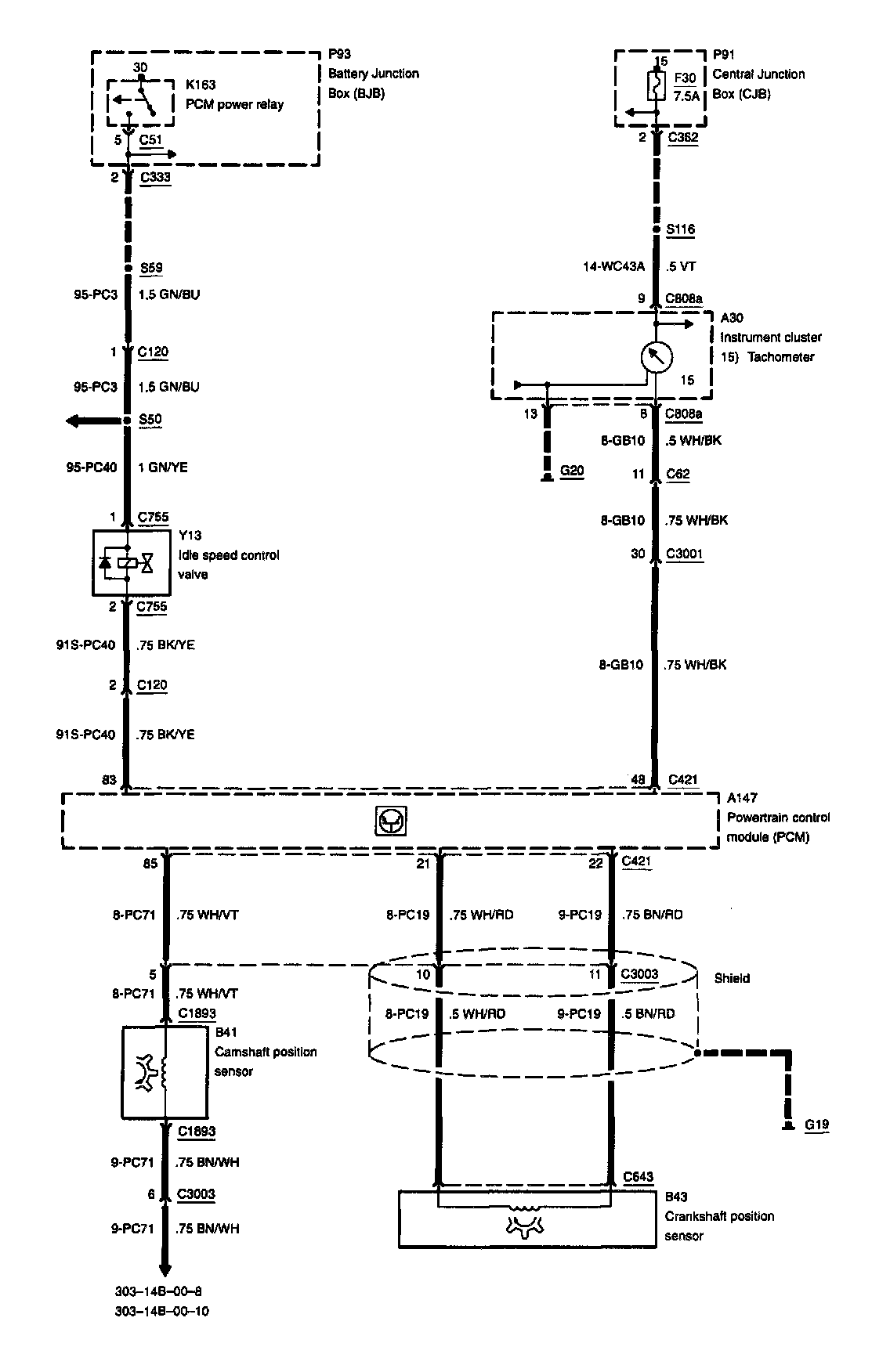

Diagram 303-14b-00-7:
Battery Junction Box
Camshaft Position Sensor
Crankshaft Position Sensor
Crankshaft Position Sensor Shield
Central Junction Box
Fuse F30
Idle Speed Control Valve
Instrument Cluster
Powertrain Control Module
Powertrain Control Module Power Relay
Tachometer

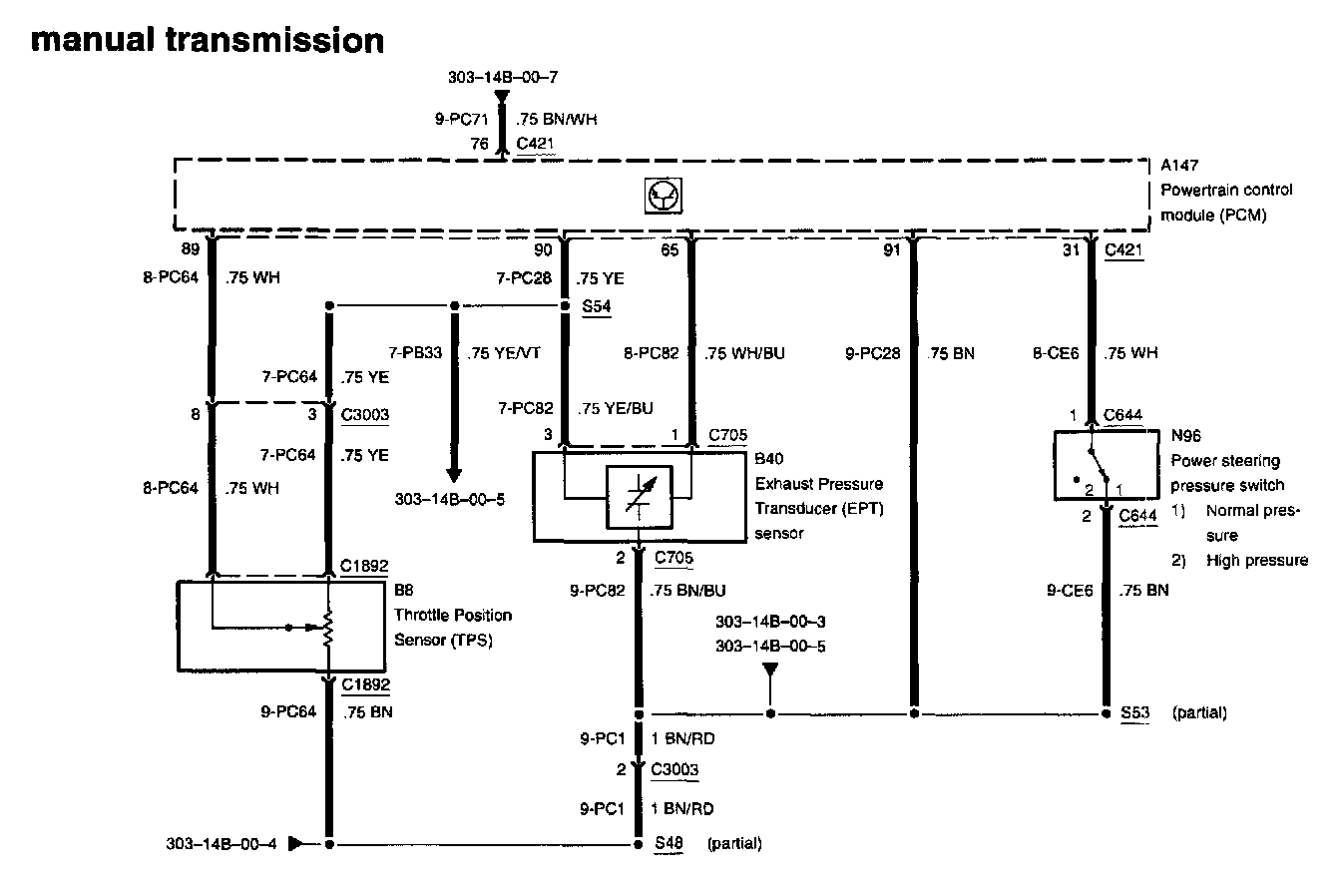

Diagram 303-14b-00-8:
Exhaust Pressure Transducer Sensor
Powertrain Control Module
Power Steering Pressure Switch
Throttle Position Sensor

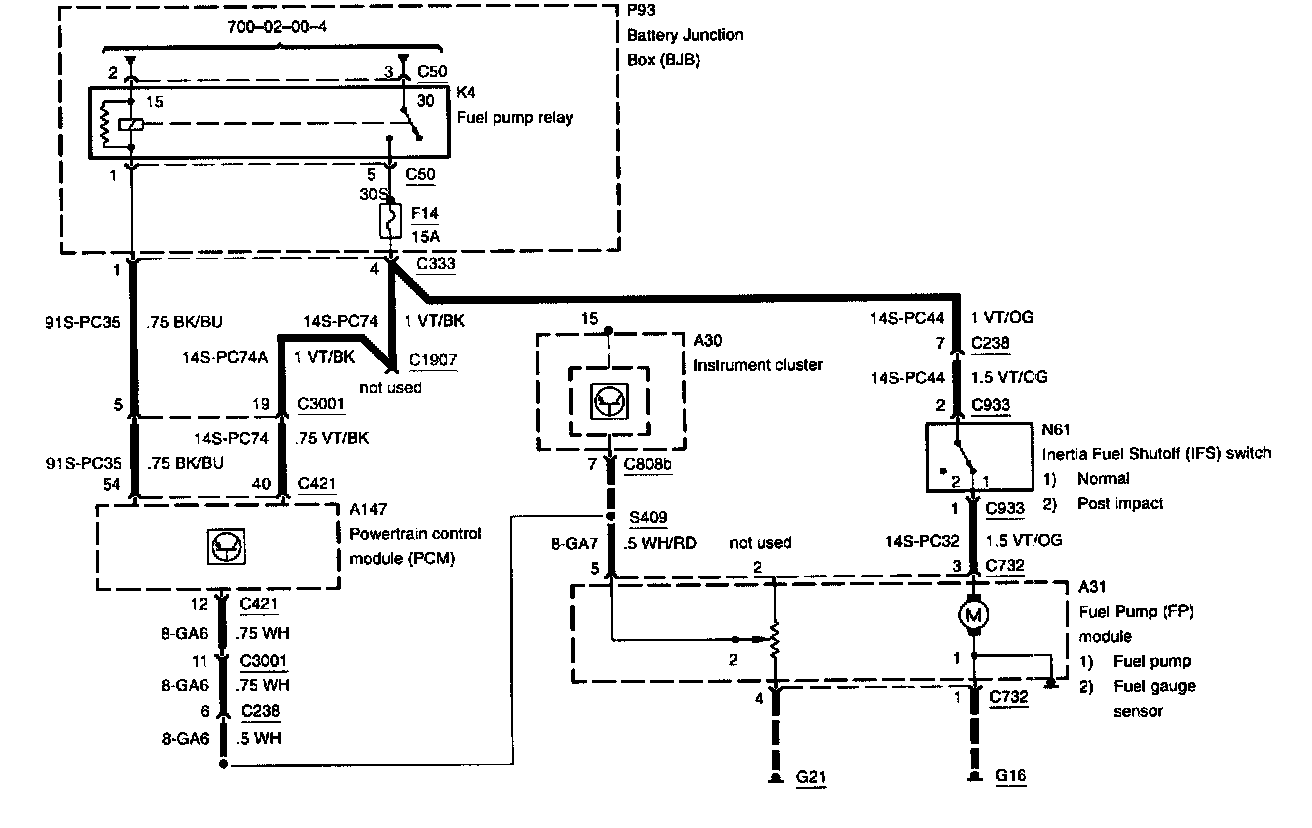

Diagram 303-14b-00-13:
Battery Junction Box
Fuel Gauge Sensor
Fuel Pump
[1][2][3]Fuel Pump Module
Fuel Pump Relay
Fuse F14
Instrument Cluster
Inertia Fuel Shutoff Switch
Powertrain Control Module

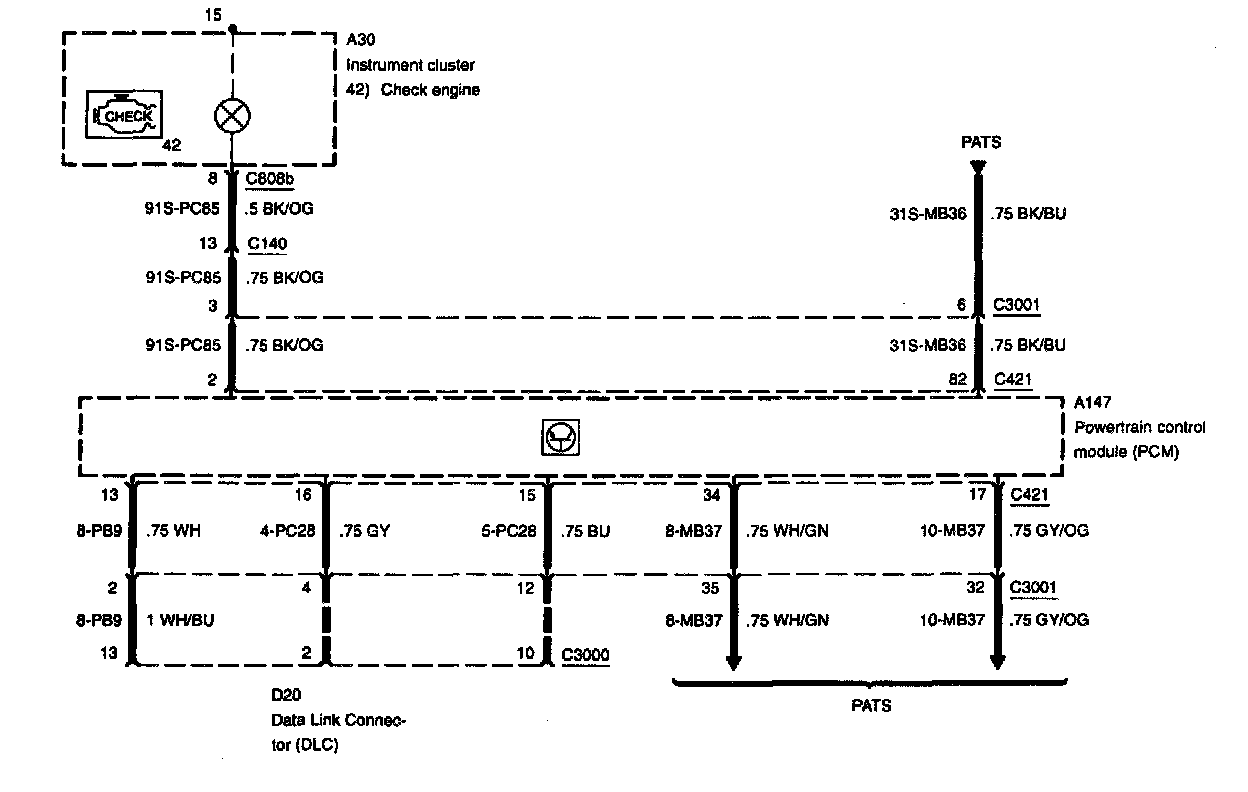

Diagram 303-14b-00-14:
Data Link Connector
Instrument Cluster
Powertrain Control Module

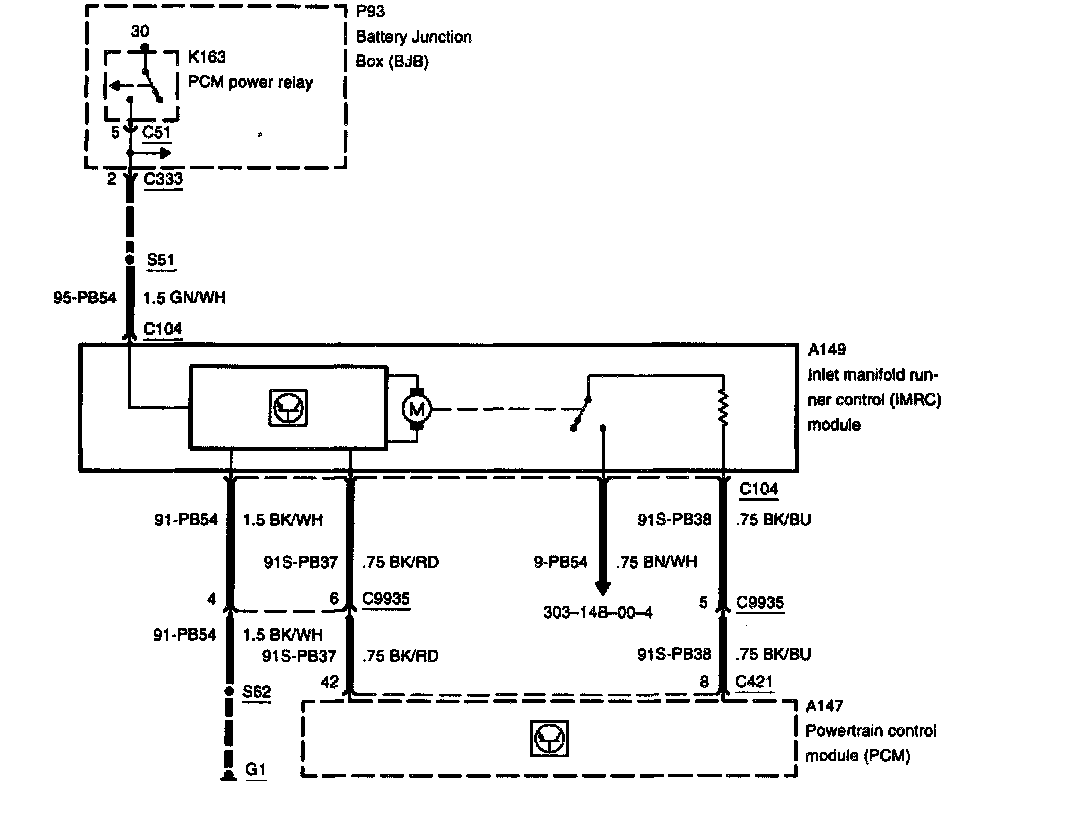

Diagram 303-14b-00-15:
Battery Junction Box
Inlet Manifold Runner Control Module
Powertrain Control Module
Powertrain Control Module Power Relay

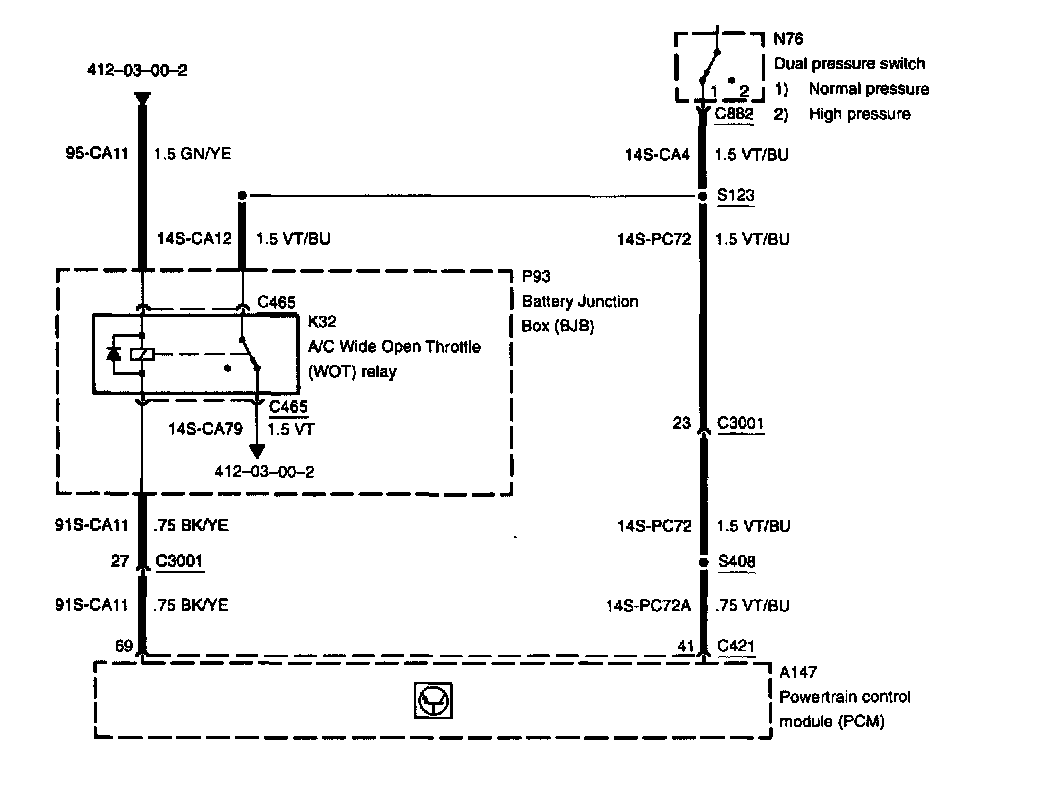

Diagram 303-14b-00-16:
A/C Wide Open Throttle Relay
Dual Pressure Switch
Powertrain Control Module
