Roof Sliding Panel Opening Shield

REMOVAL
1. Remove the glass roof panel.
2. Slide the opening shield to the closed position.

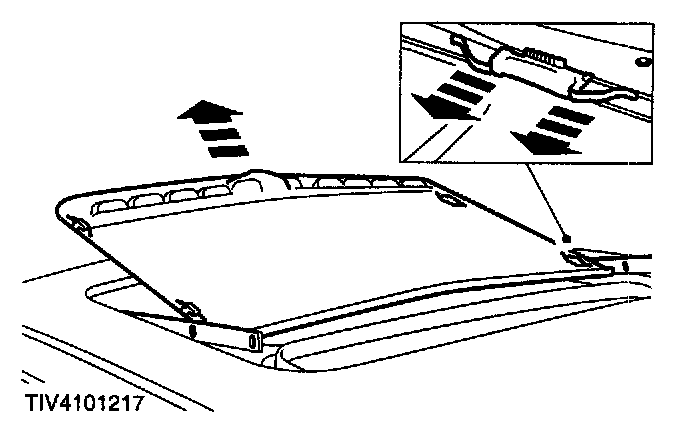

3. Release the metal retaining tabs and lift the opening shield from the track.

INSTALLATION
1. To install, reverse the removal procedure.
