Windshield Washer Reservoir: Service and Repair

REMOVAL
1. Empty the washer reservoir.
2. Remove the front bumper.

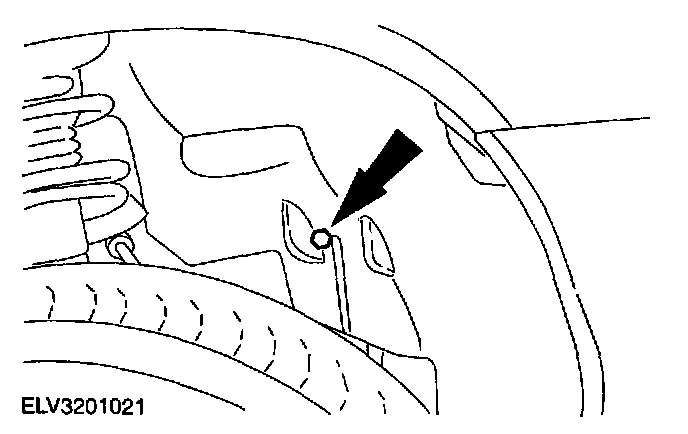

3. Remove the fender splash shield retaining bolt.
^ Pull the splash shield to one side.

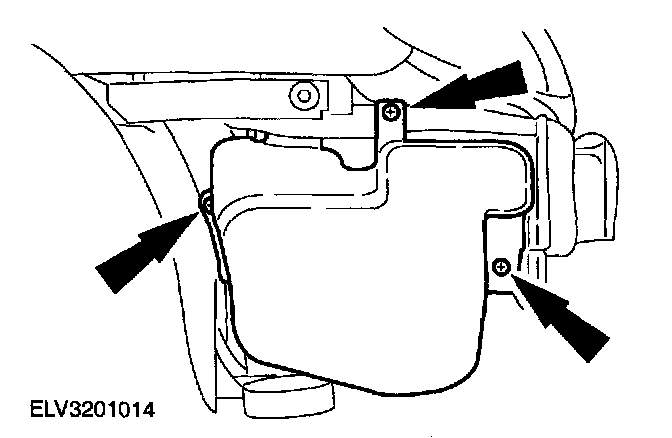

4. Detach the washer reservoir.







5. Remove the washer reservoir.

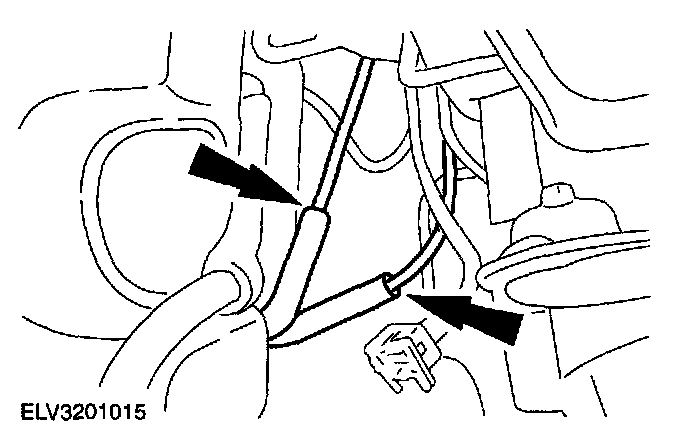

^ Disconnect electrical connectors.
^ Disconnect the hoses.

INSTALLATION
1. To install, reverse the removal procedure.
