Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> G - Windshield Washer Inoperative

G - Windshield Washer Inoperative

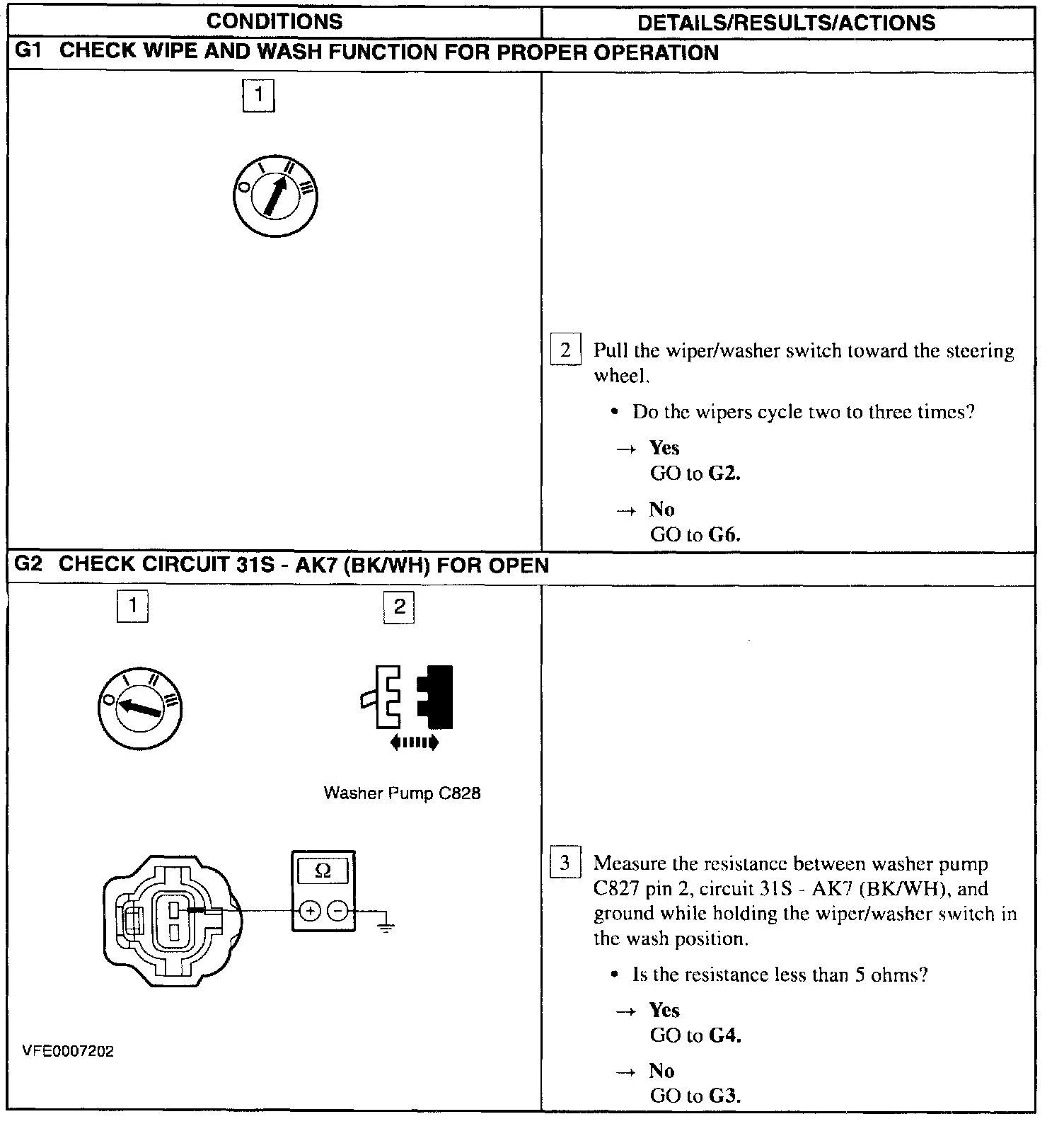

G1 - G2:

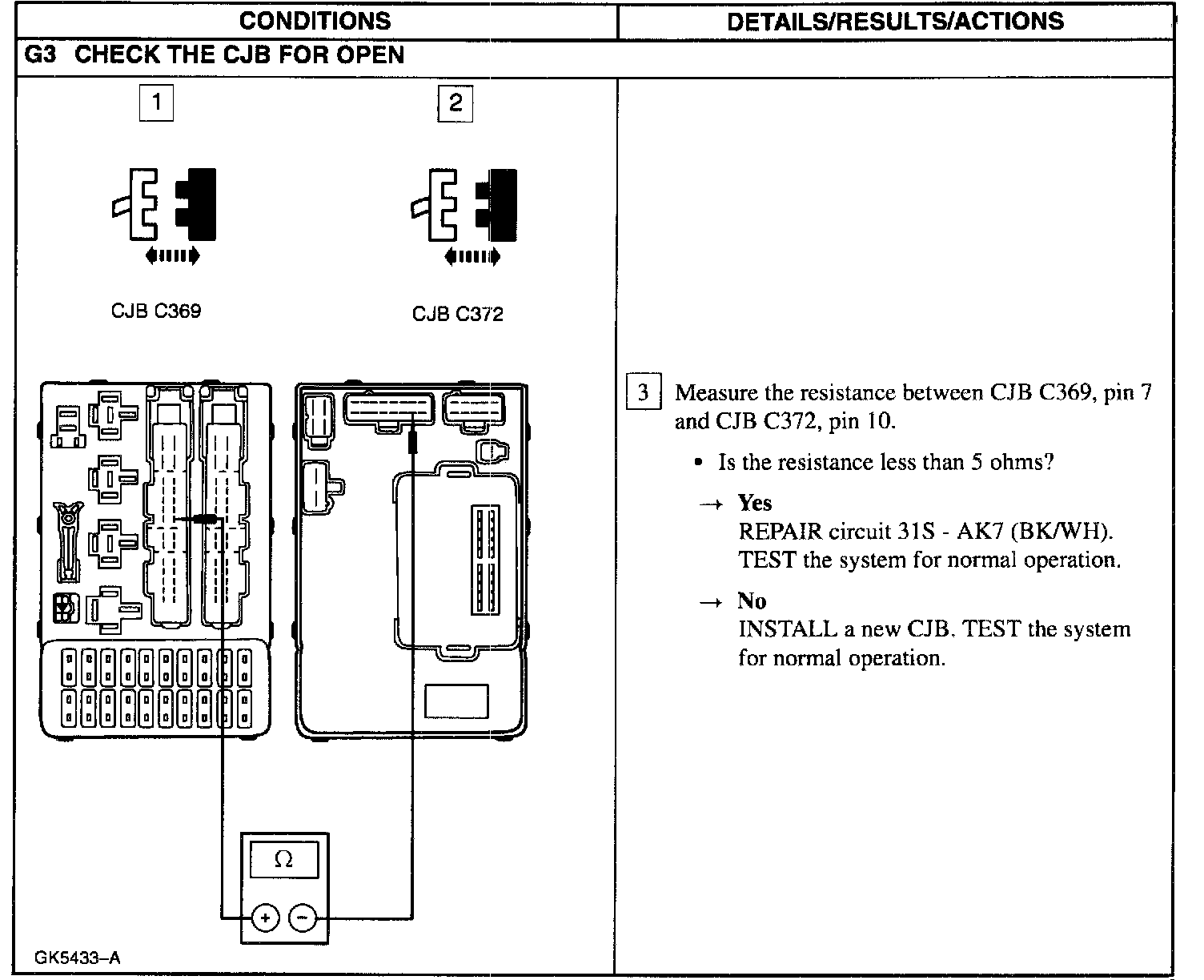

G3:

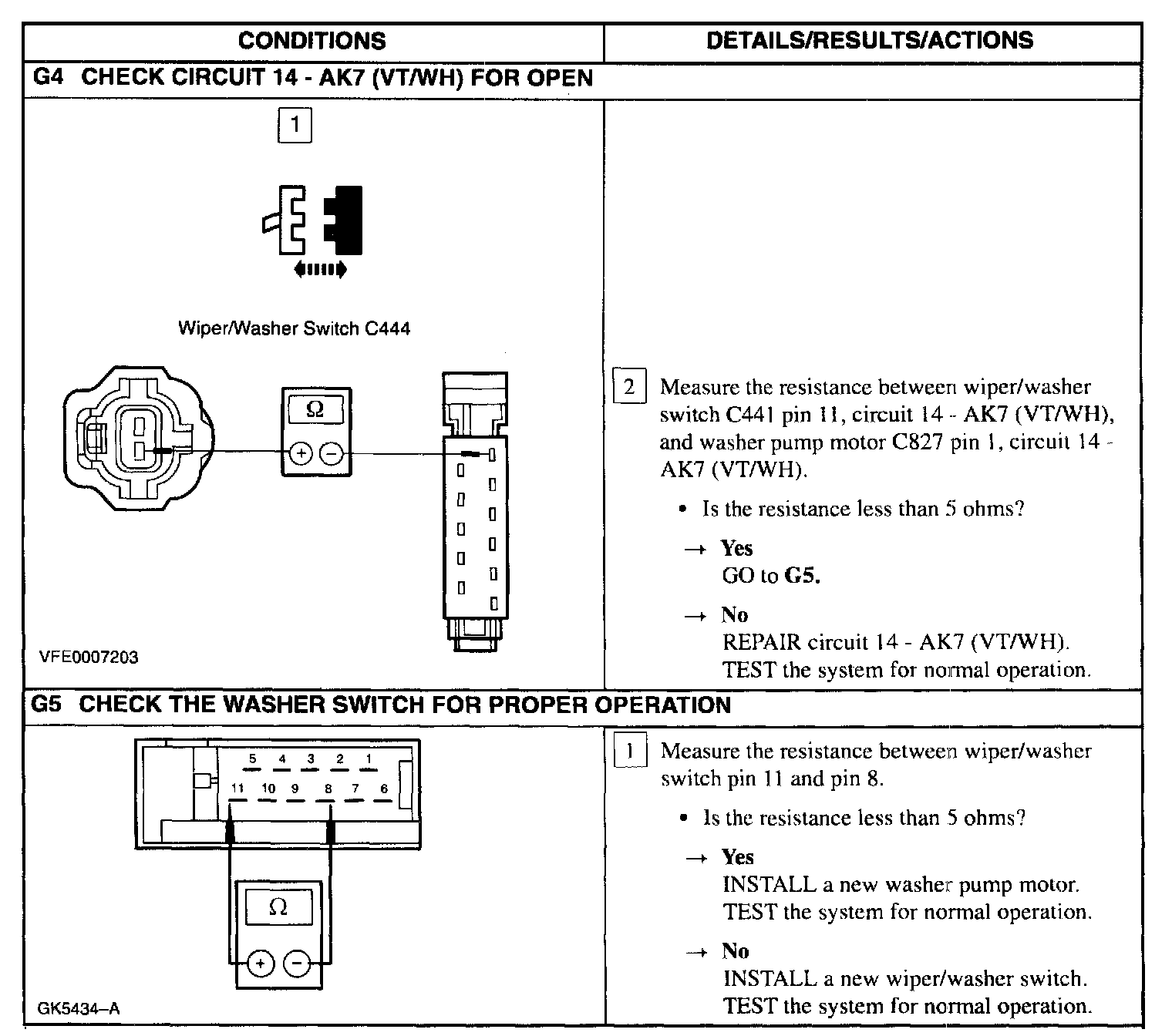

G4 - G5:

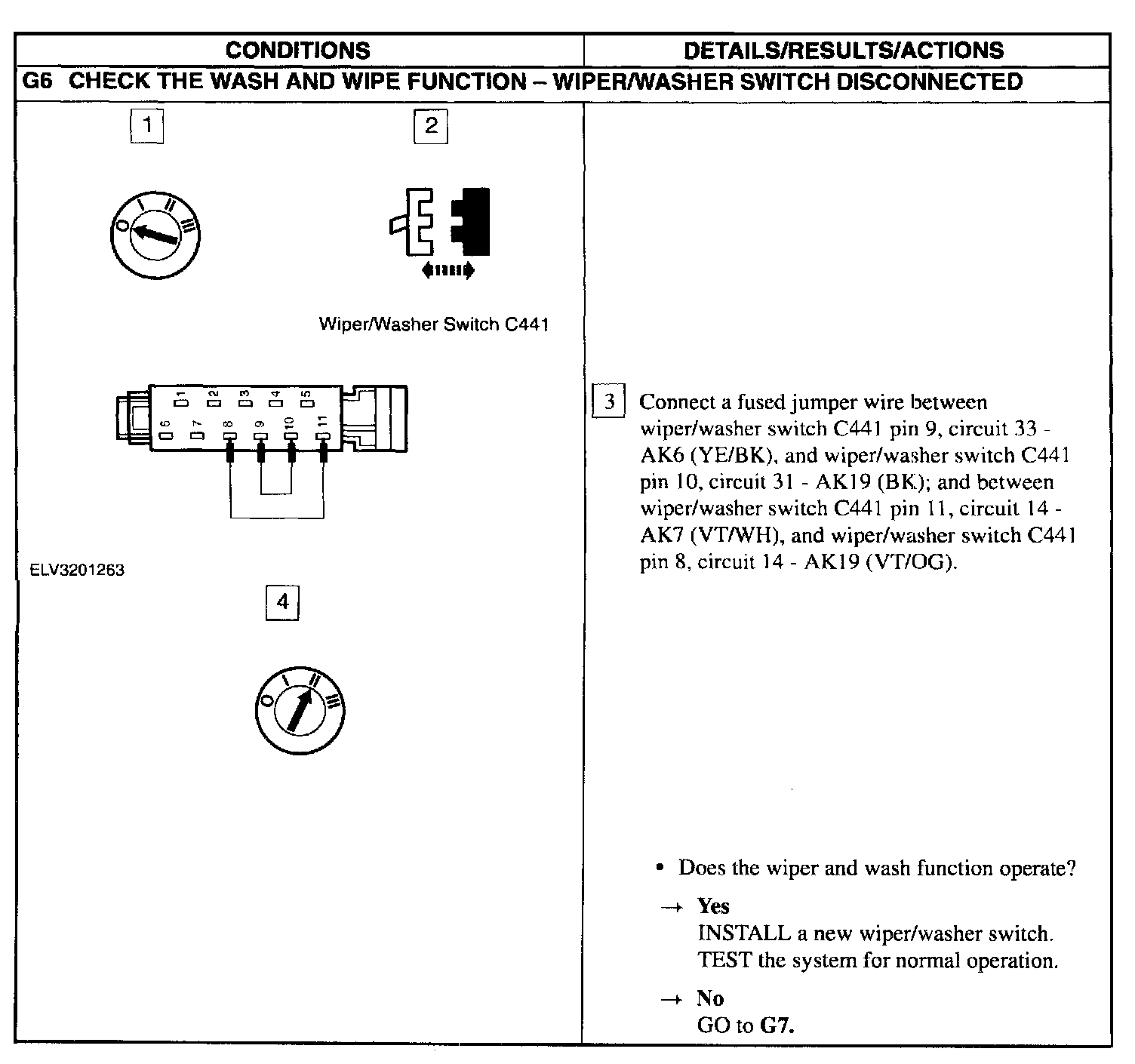

G6:

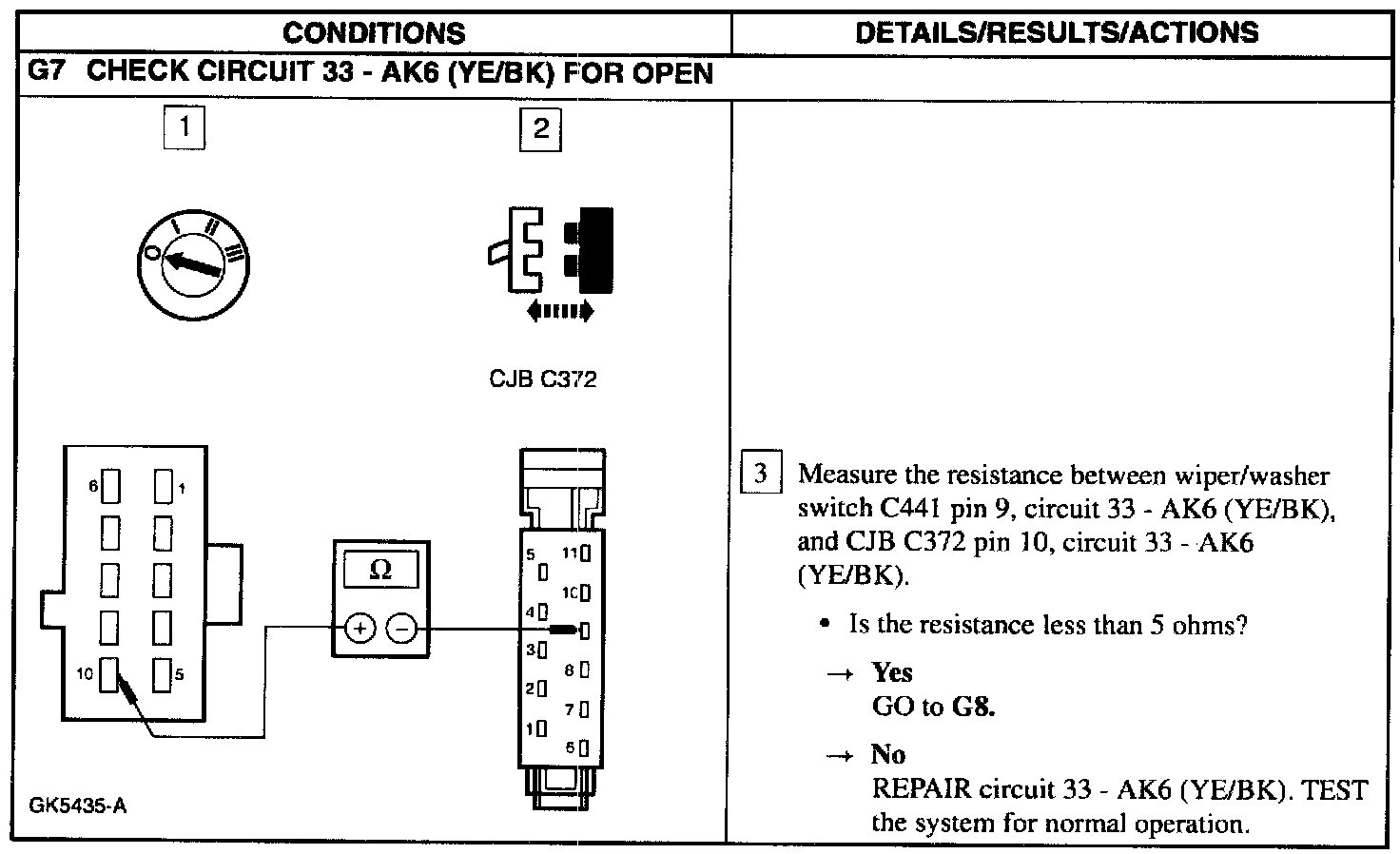

G7:

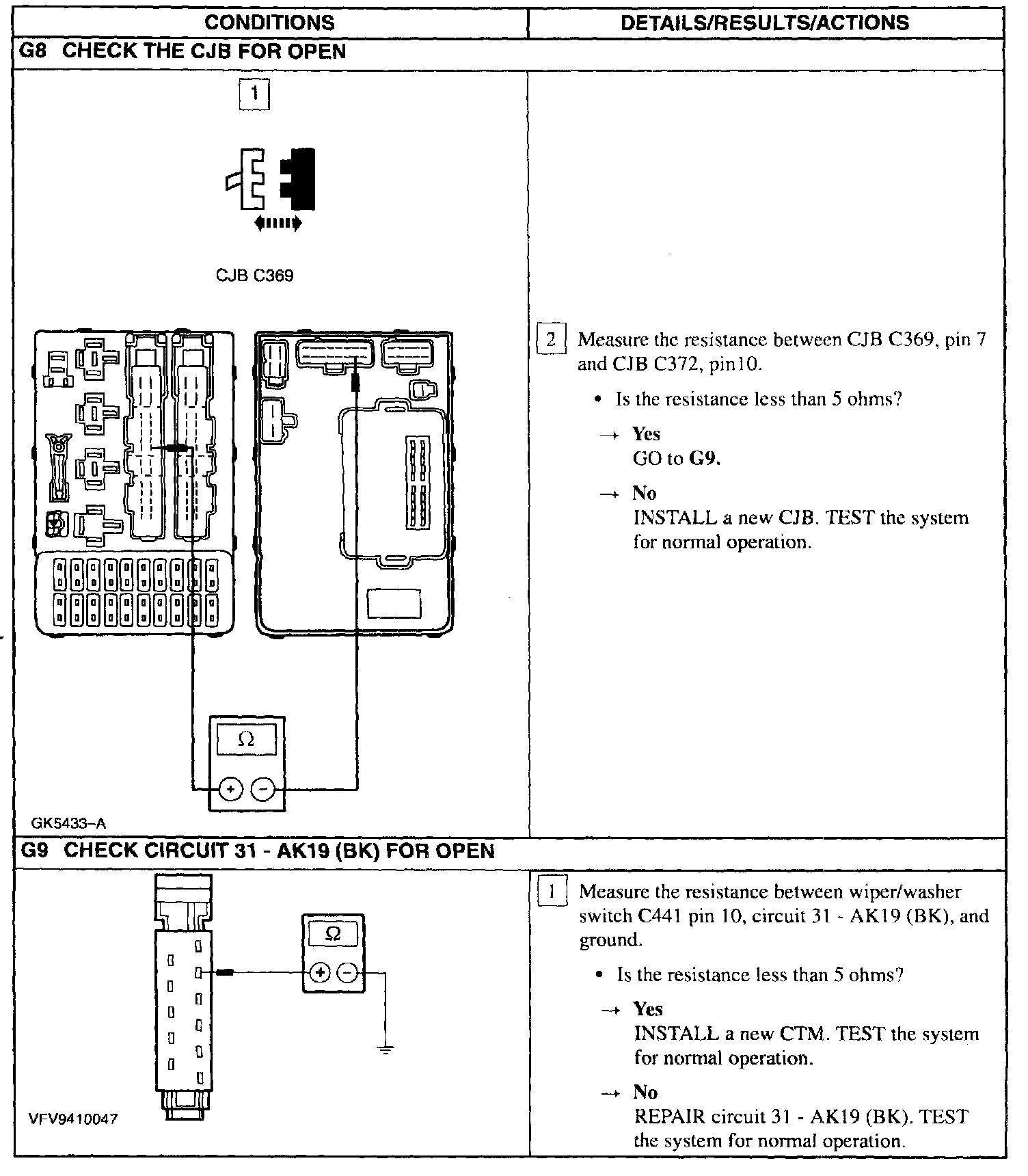

G8 - G9:
