Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> E - Windshield Wipers Inoperative at Interval Setting

E - Windshield Wipers Inoperative at Interval Setting

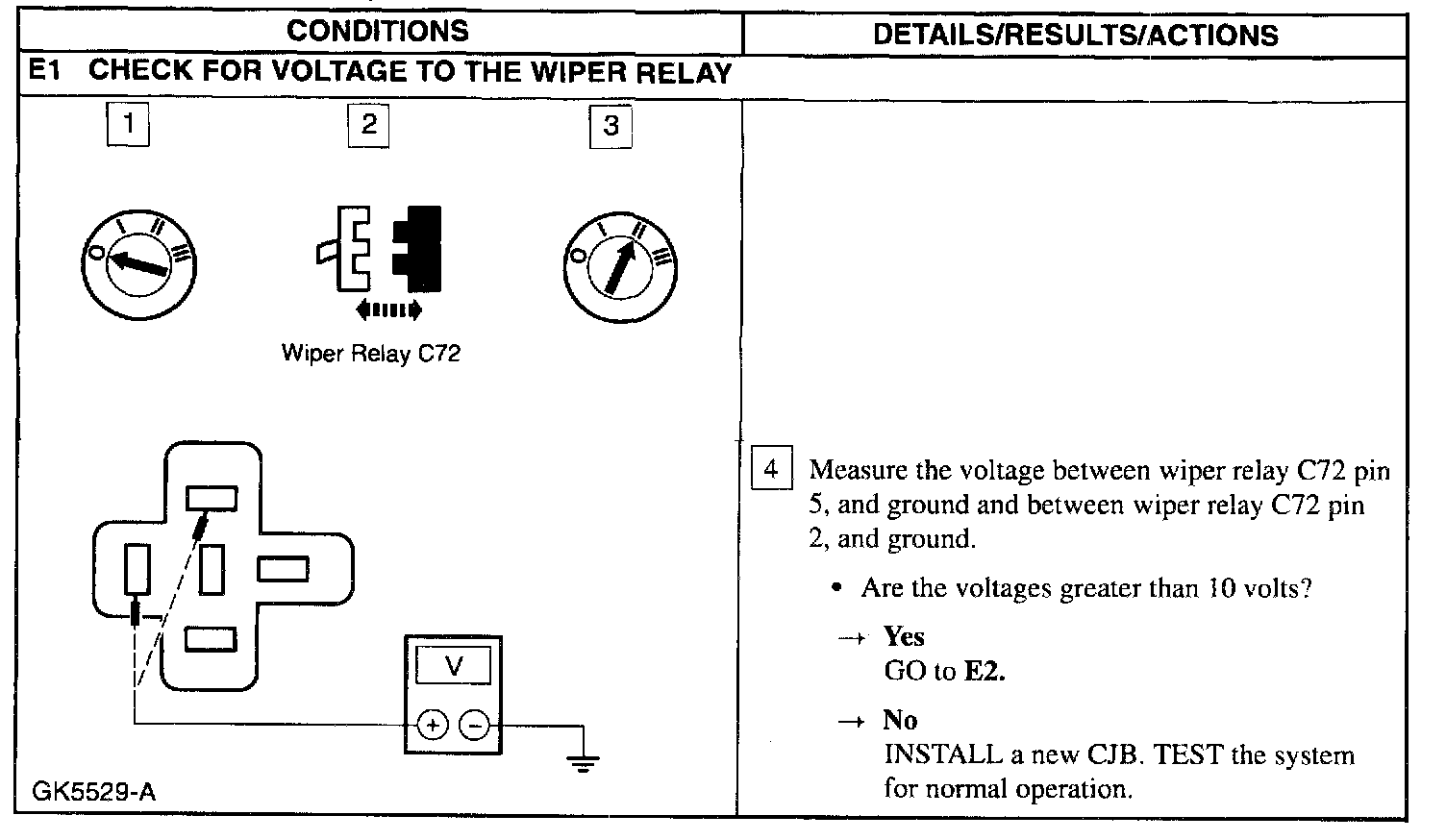

E1:

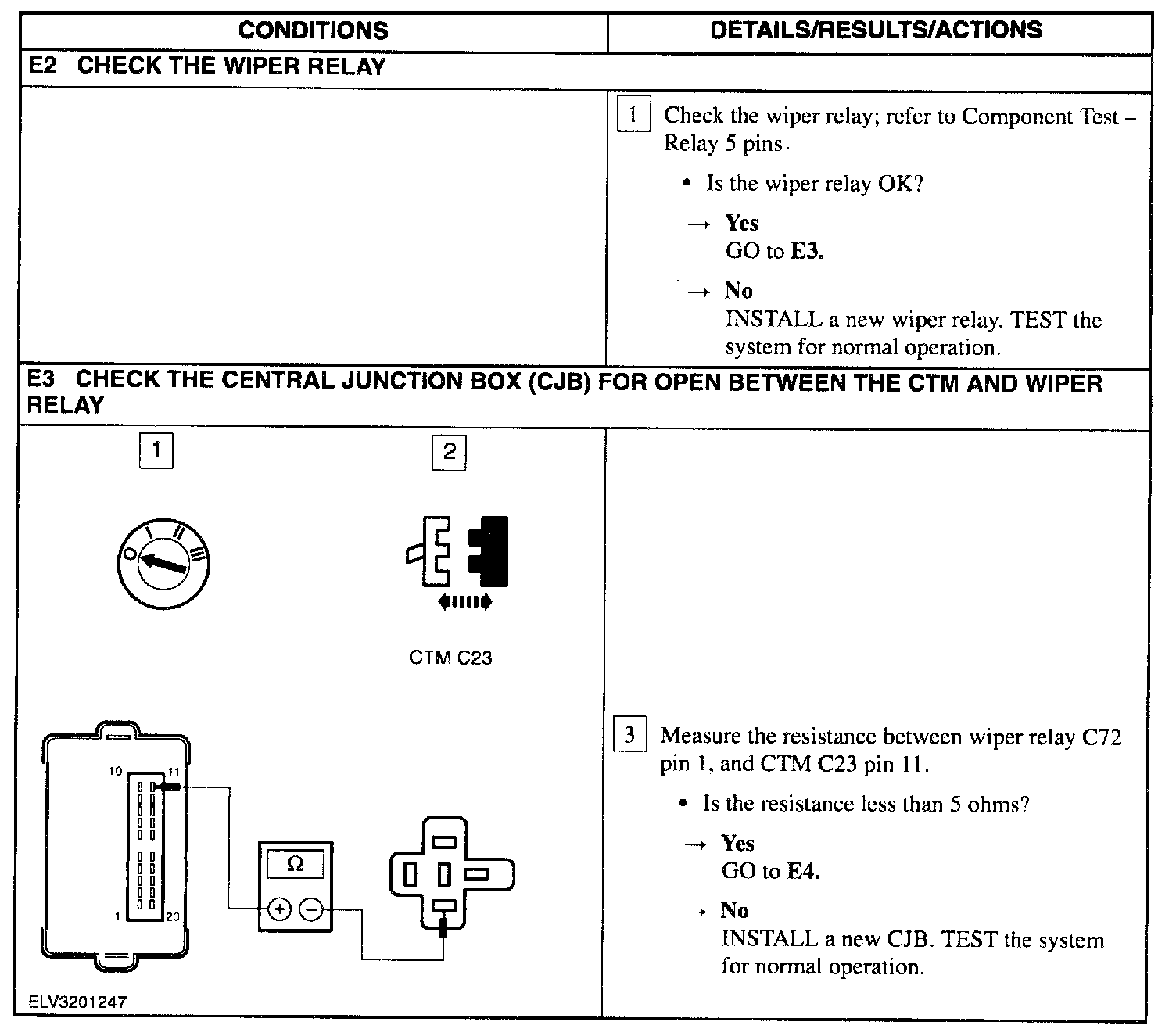

E2 - E3:






E4:

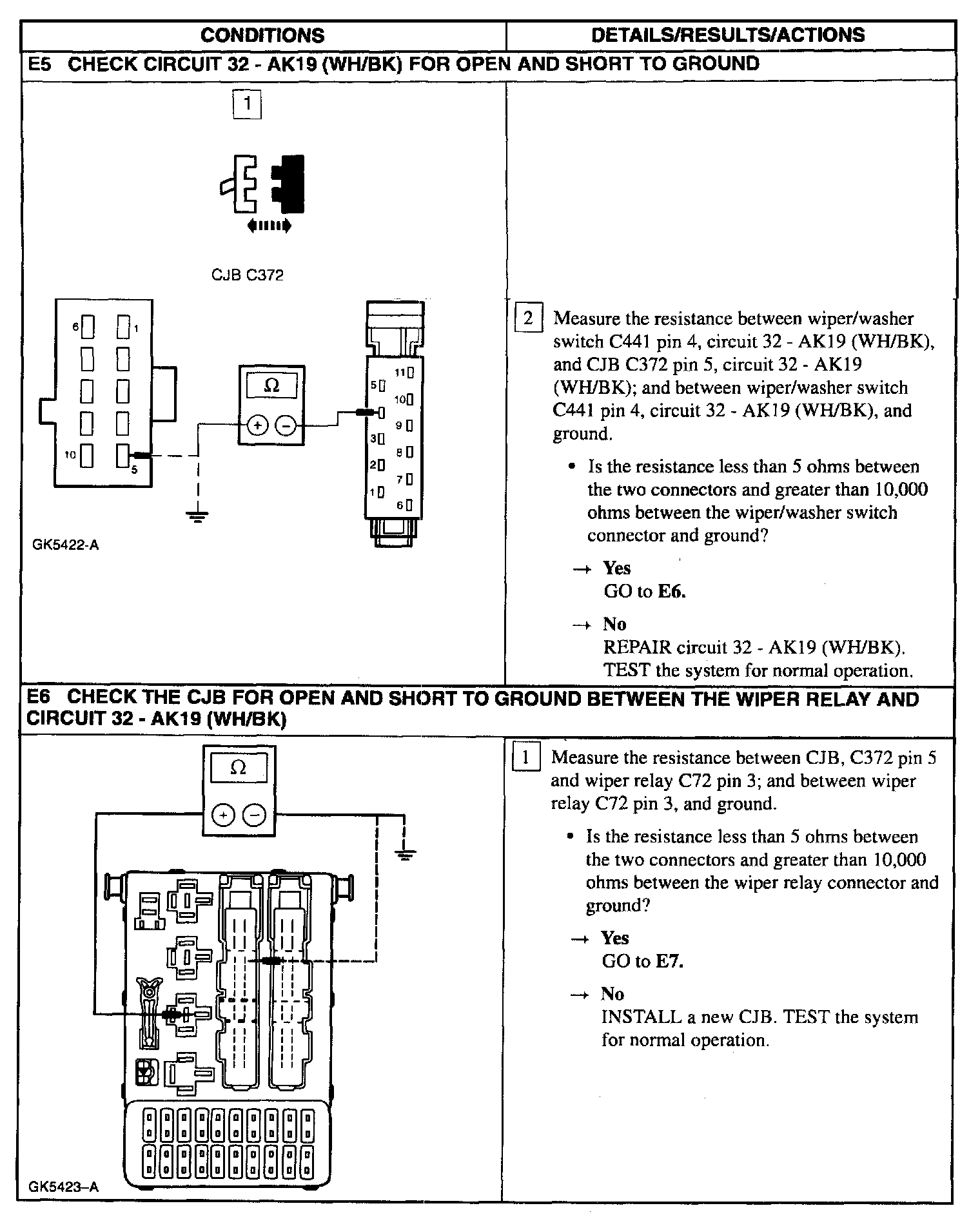

E5 - E6:

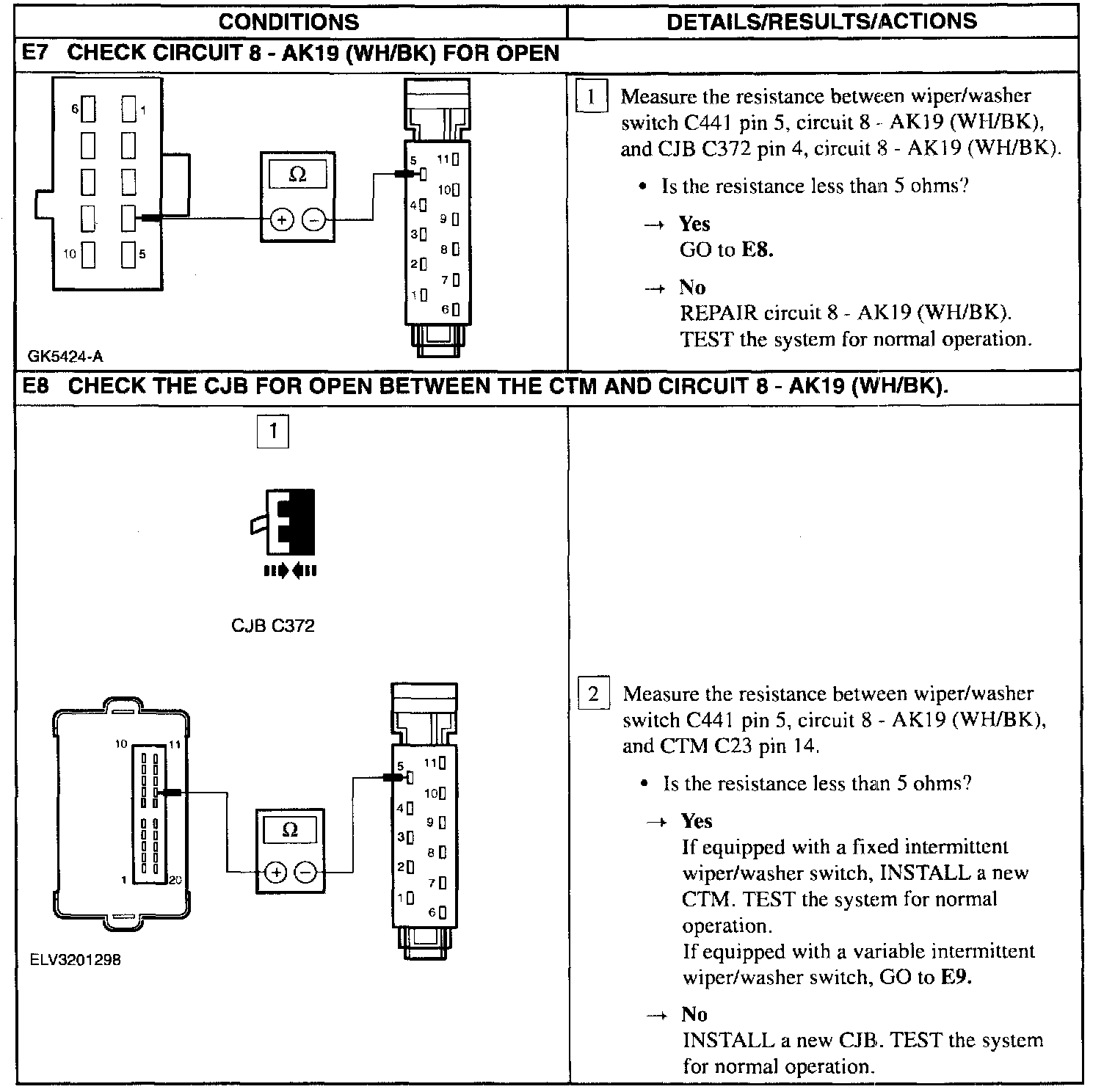

E7 - E8:

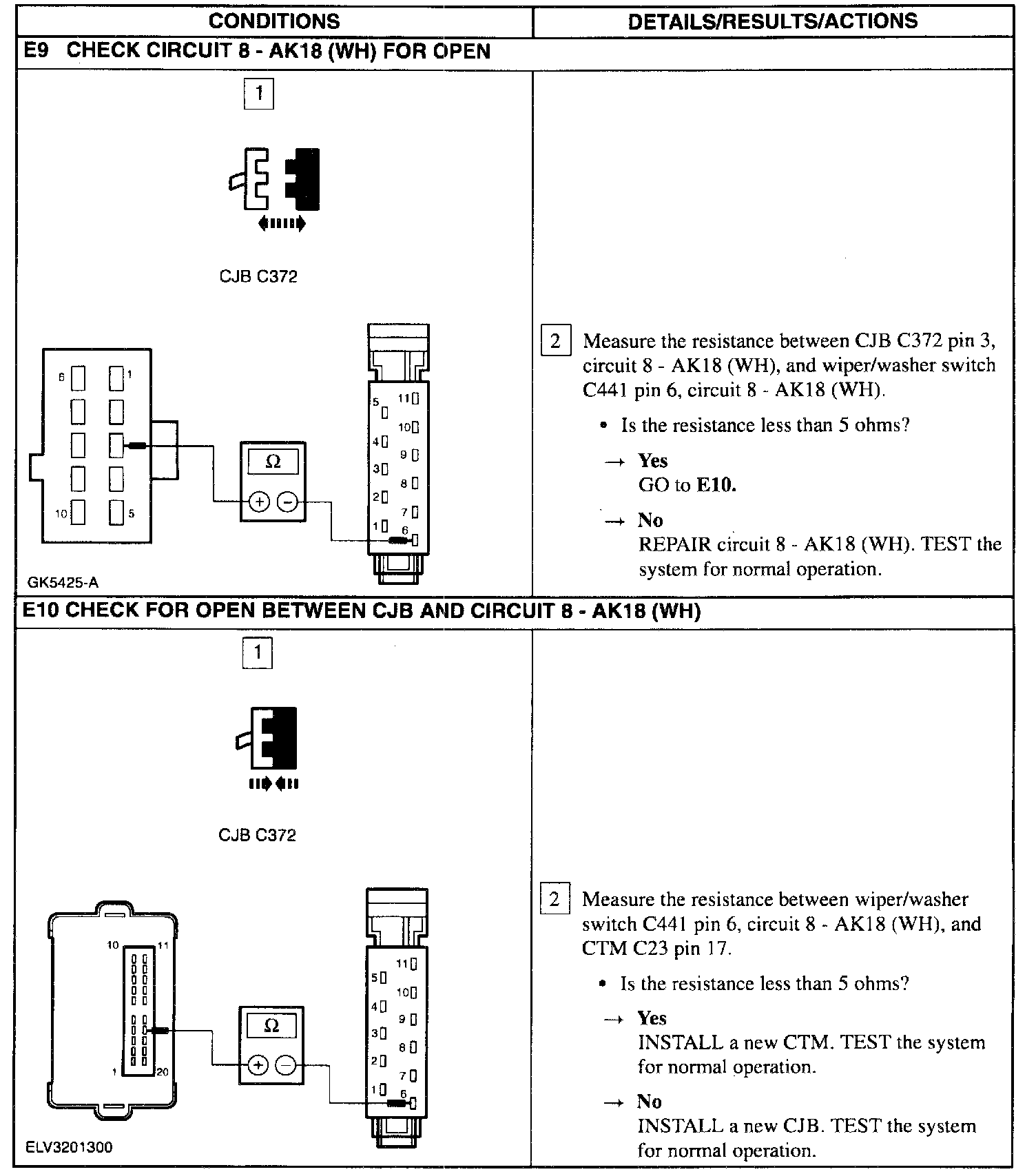

E9 - E10:
