Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> B: Wipers Stay On Continuously

B: Wipers Stay On Continuously

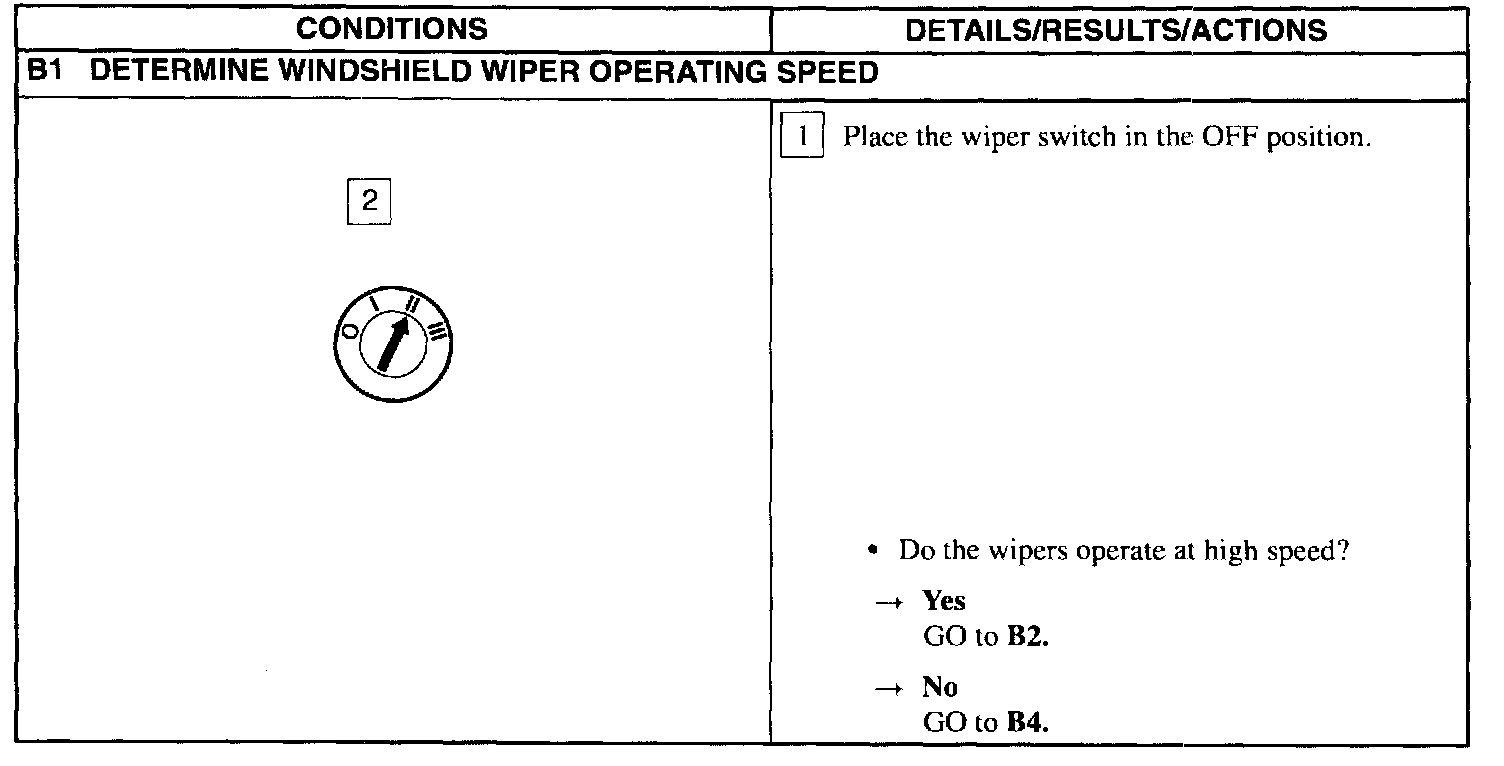

B1:

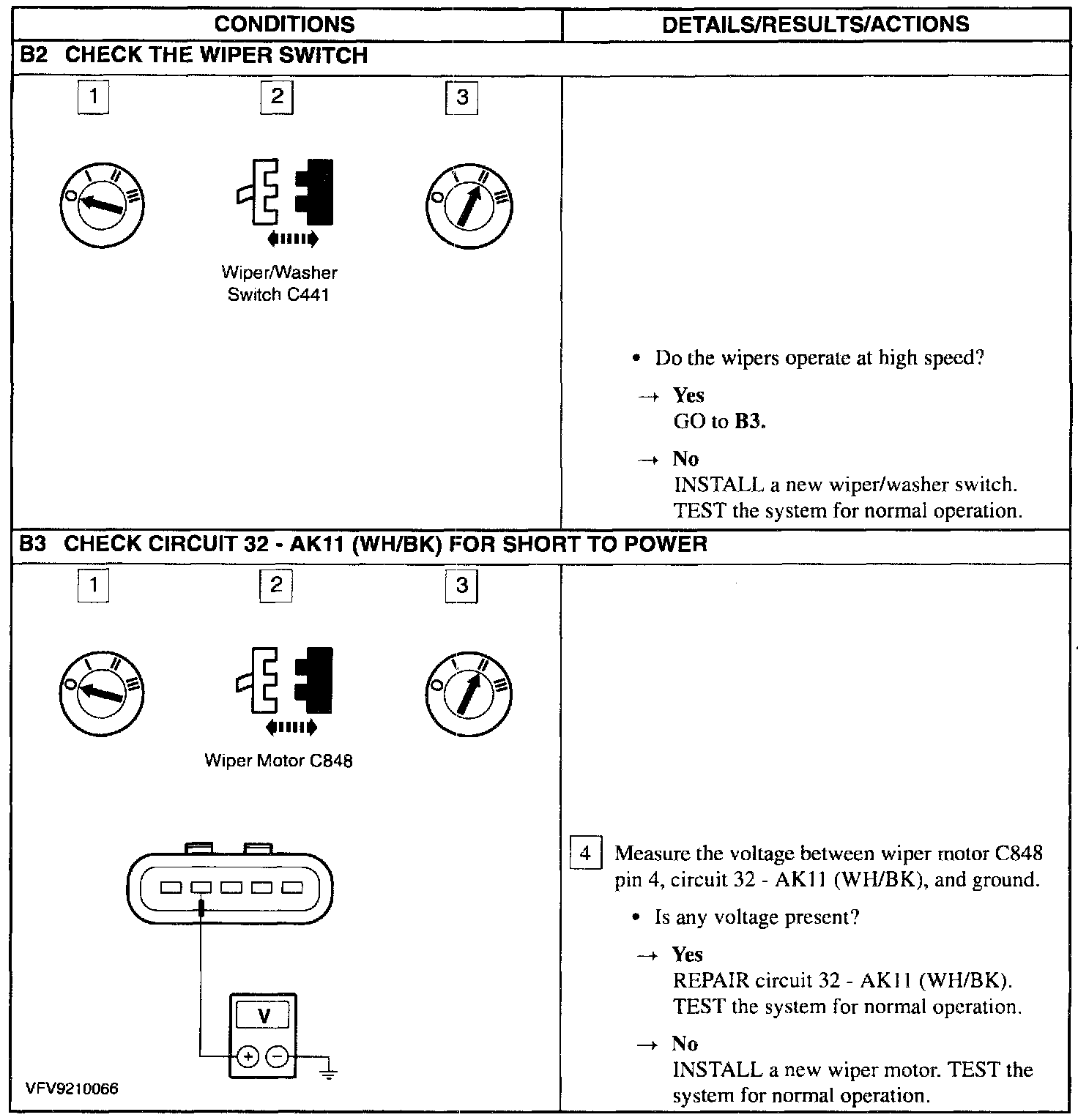

B2 - B3:

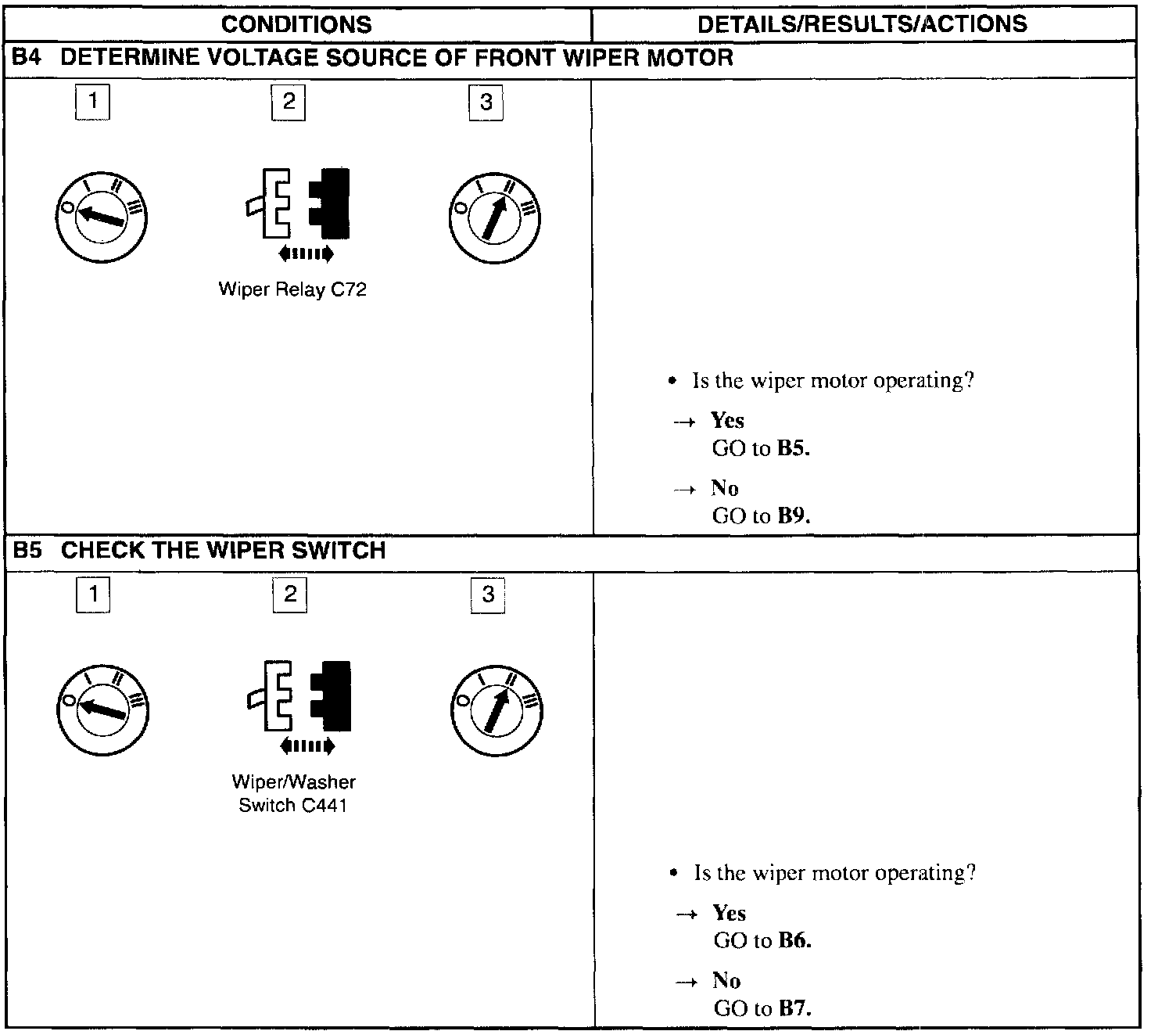

B4 - B5:

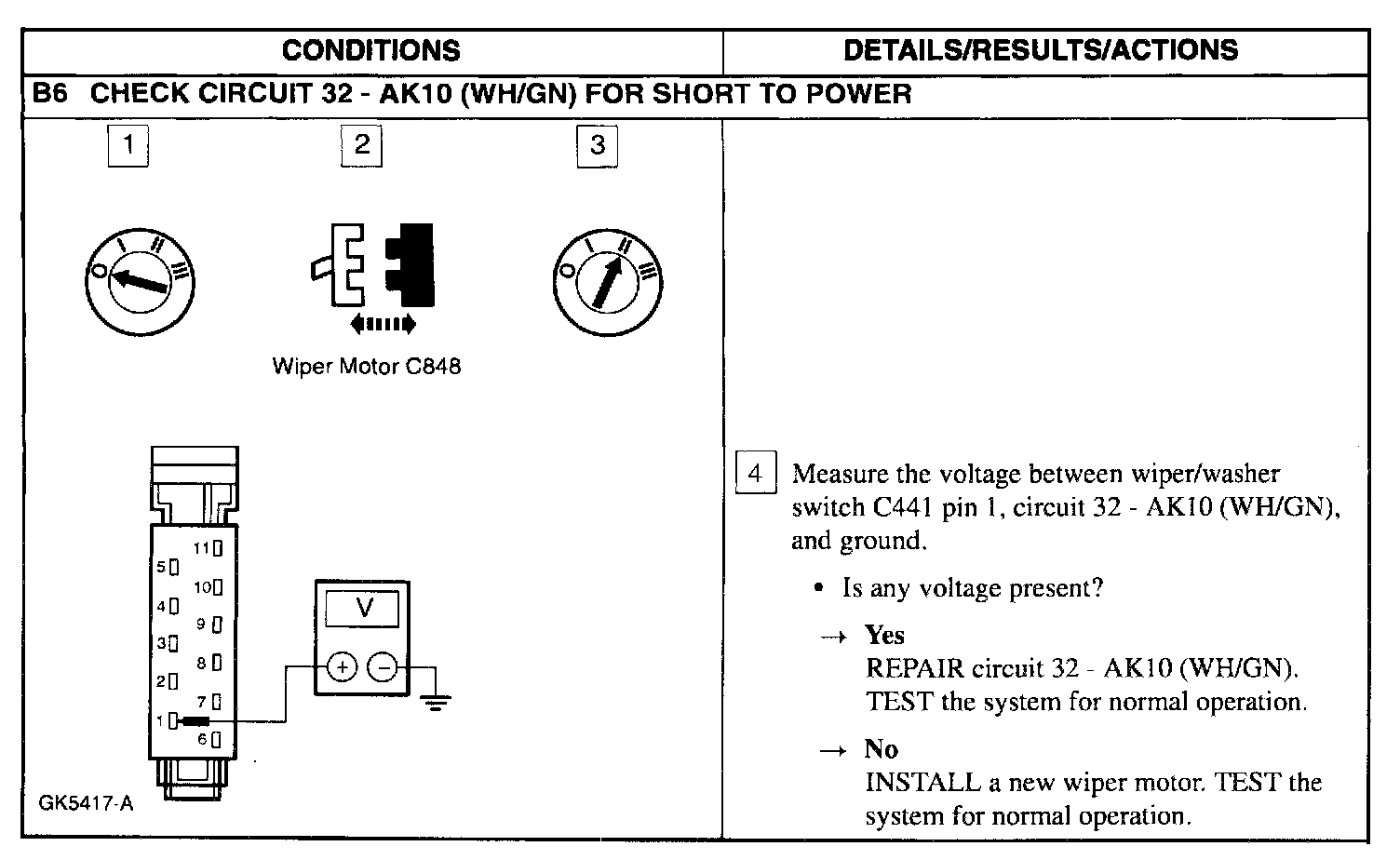

B6:

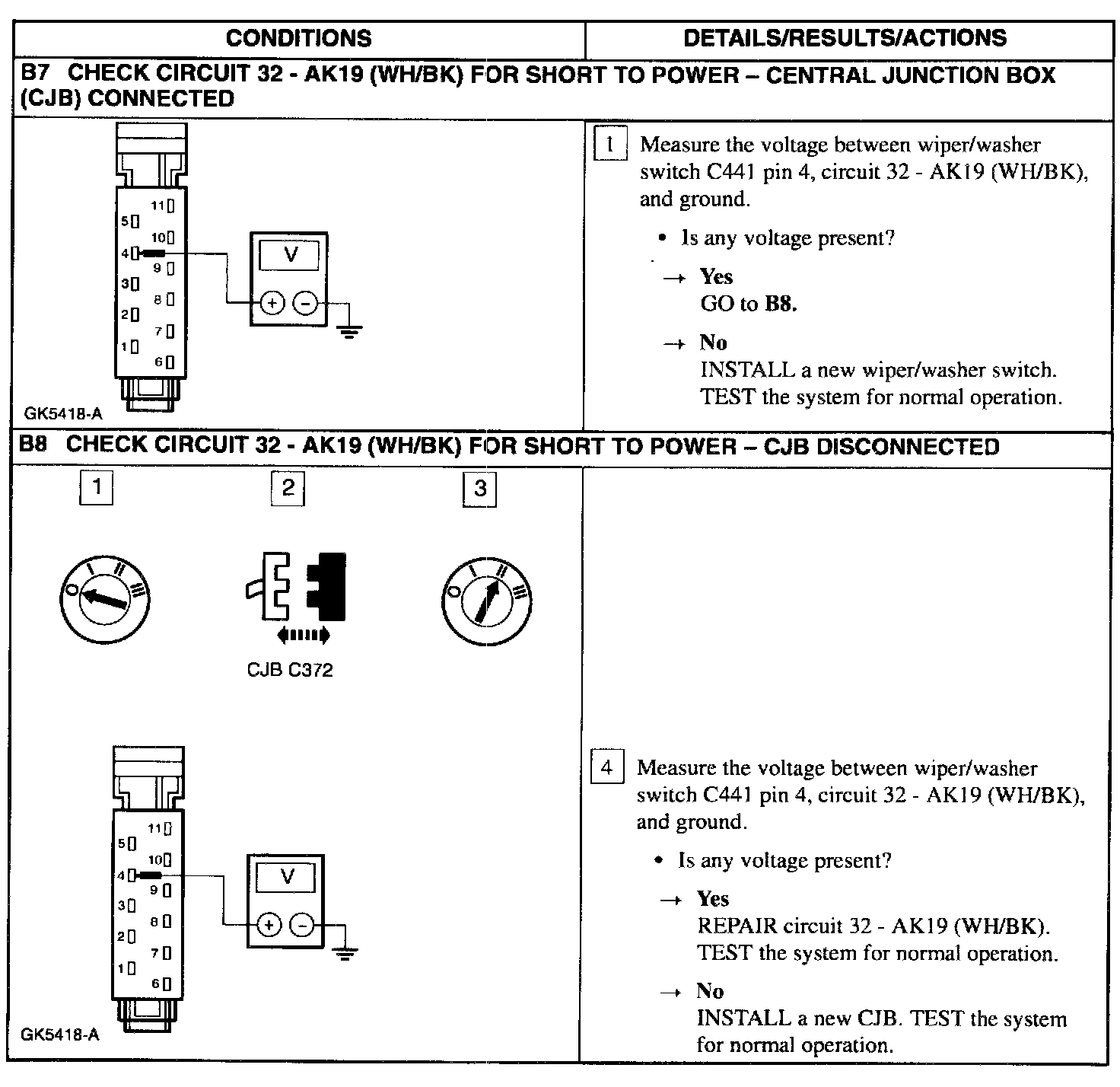

B7 - B8:






B9 - B10:
