Front Door

REMOVAL
1. Remove the door trim panel.

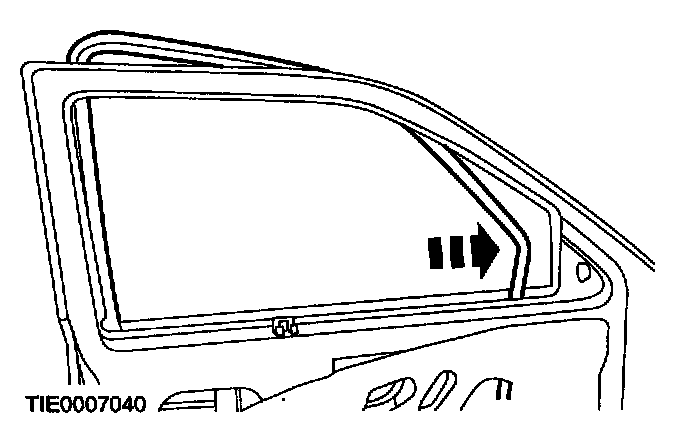

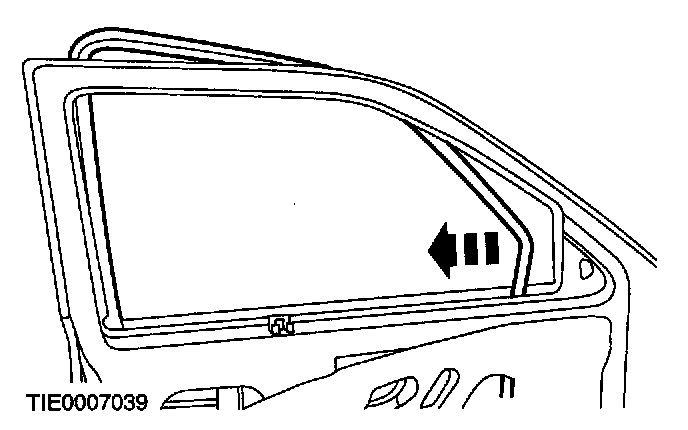

2. Remove the door window glass.

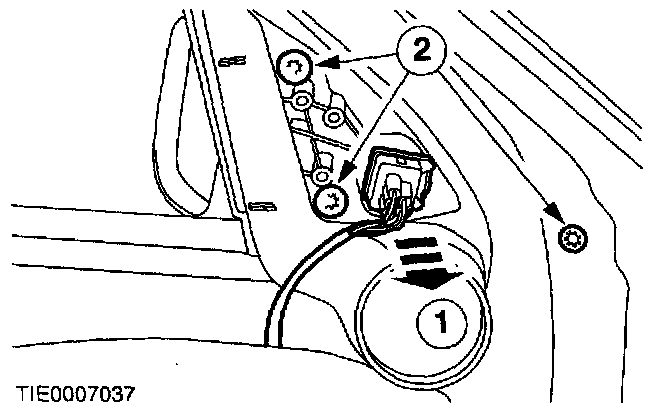

3. Remove the mirror.
1. Disconnect the electrical connector.
2. Remove the mirror retaining bolts.







4. Remove the exterior weatherstrip.







5. Detach the door speaker.
- Remove the speaker retaining screws.







6. Remove the door speaker.
- Disconnect the multiplug.







7. Remove the door glass top run.

INSTALLATION







1. To install, reverse the removal procedure.
