With Manual Windows

REMOVAL
1. Remove the door trim panel.







2. Detach the door speaker.
- Remove the speaker retaining screws.







3. Remove the door speaker.
- Disconnect the multiplug.







4. Detach the watershield.
- Using a plastic knife (disposable cutlery), cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired.







5. Install the window regulator handle.







6. Remove the window retaining bolts.

NOTE: Align the window retaining bolts with the access holes.







7. Remove the door interior weatherstrip (power window shown).

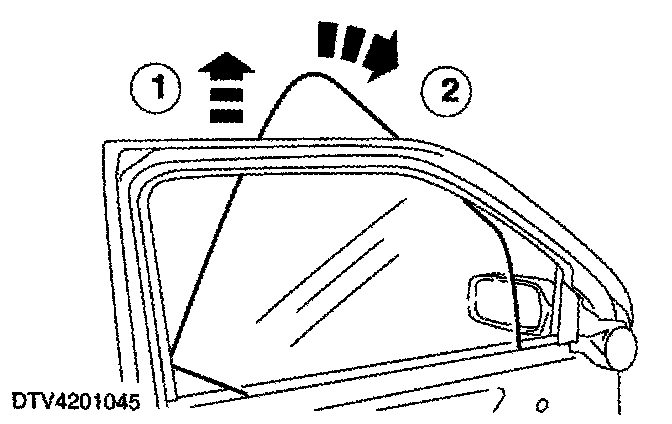

8. Remove the glass.
1. Lift the glass.
2. Tip the glass forwards and remove the glass.

INSTALLATION







1. To install, reverse the removal procedure.
