Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> E: Single Power Windows Are Inoperative - Right Rear

E: Single Power Windows Are Inoperative - Right Rear

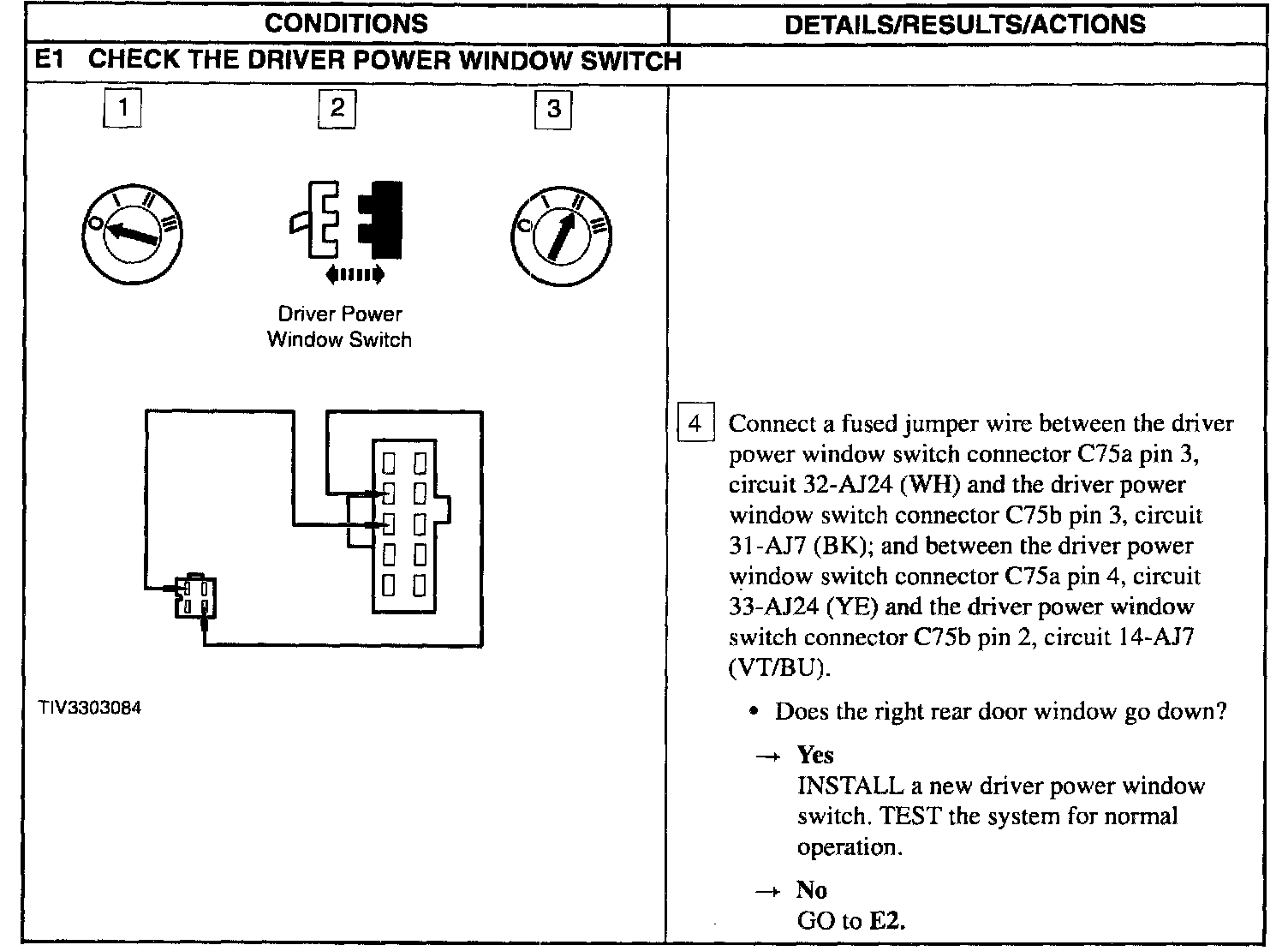

E1:

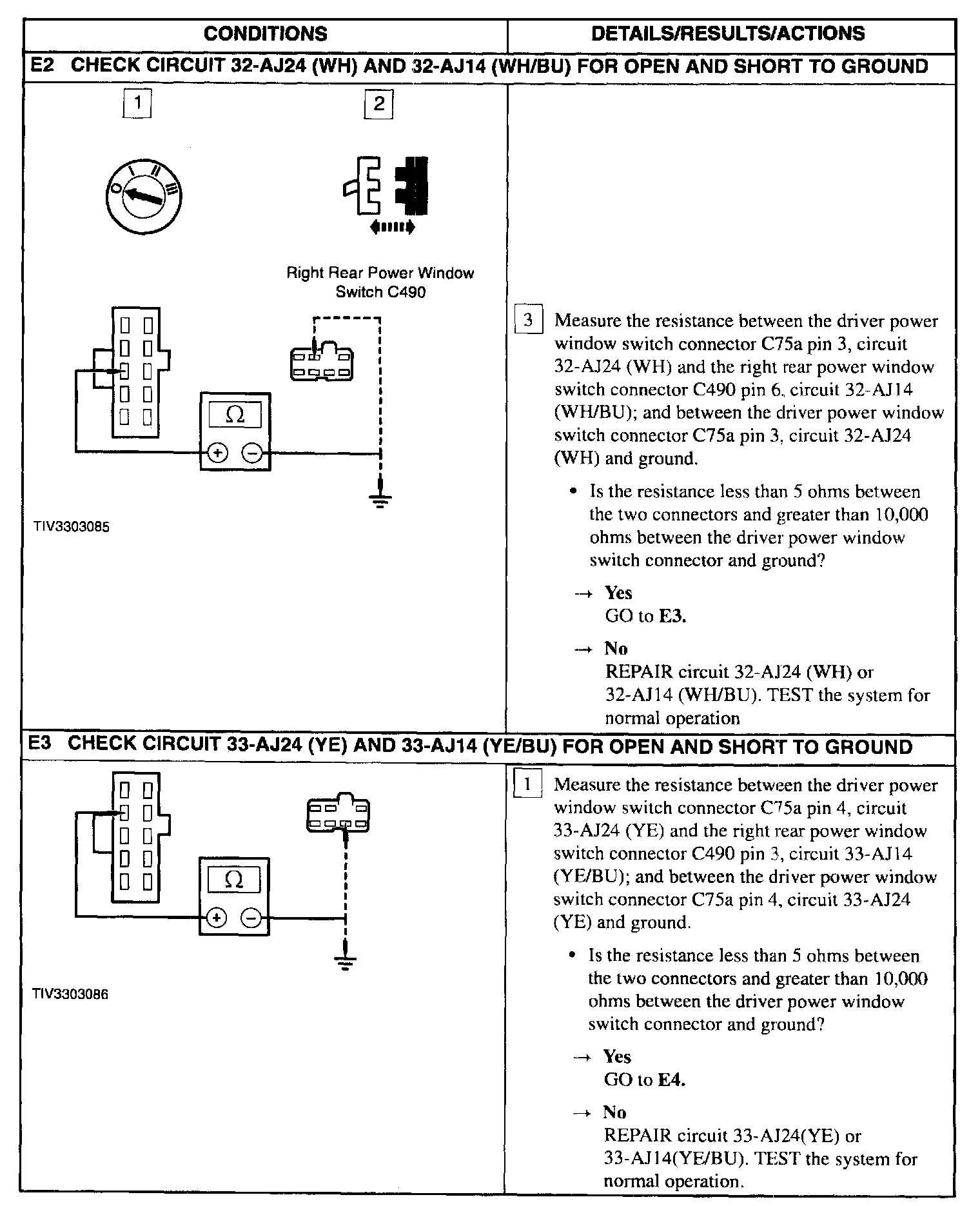

E2 - E3:

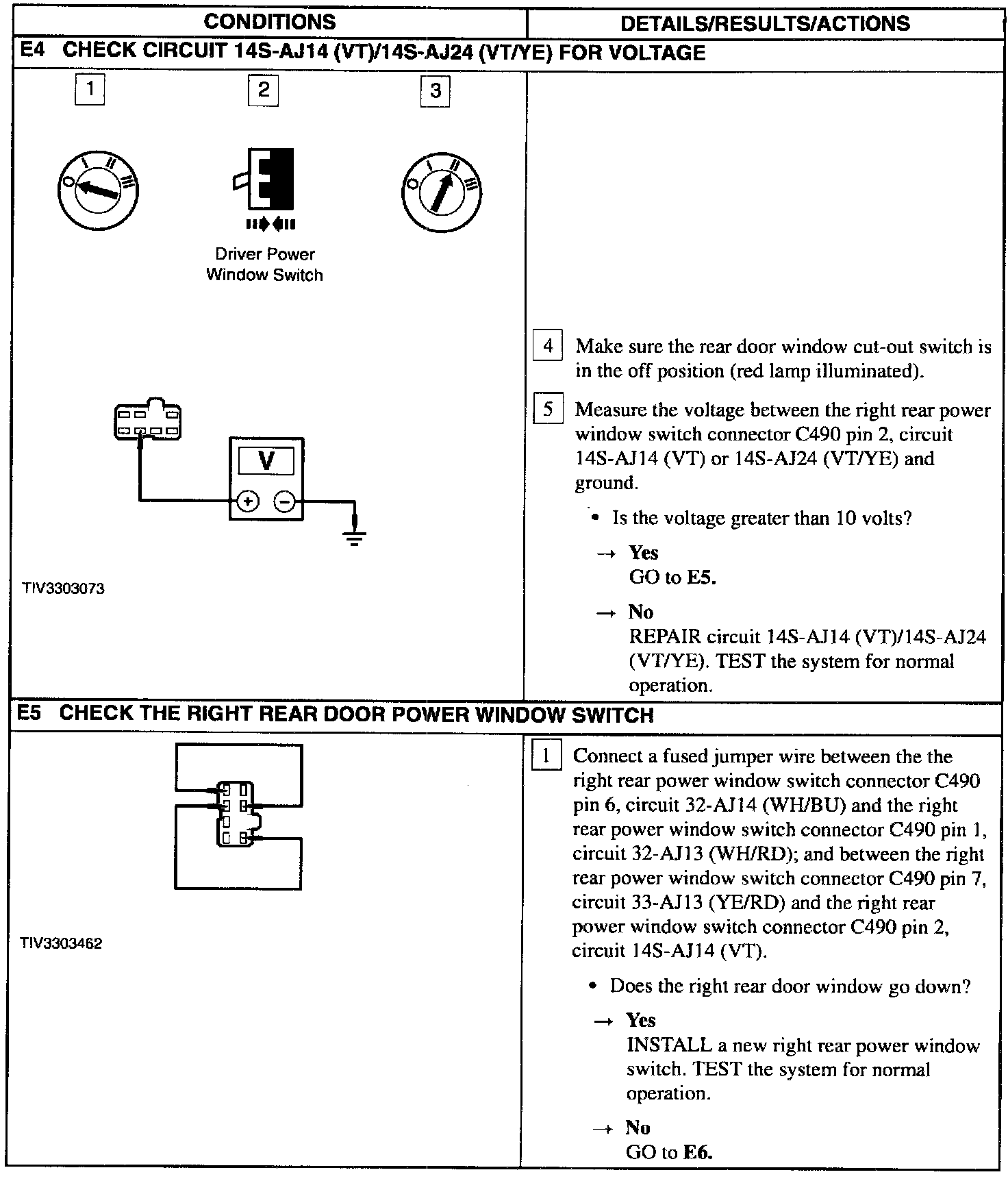

E4 - E5:

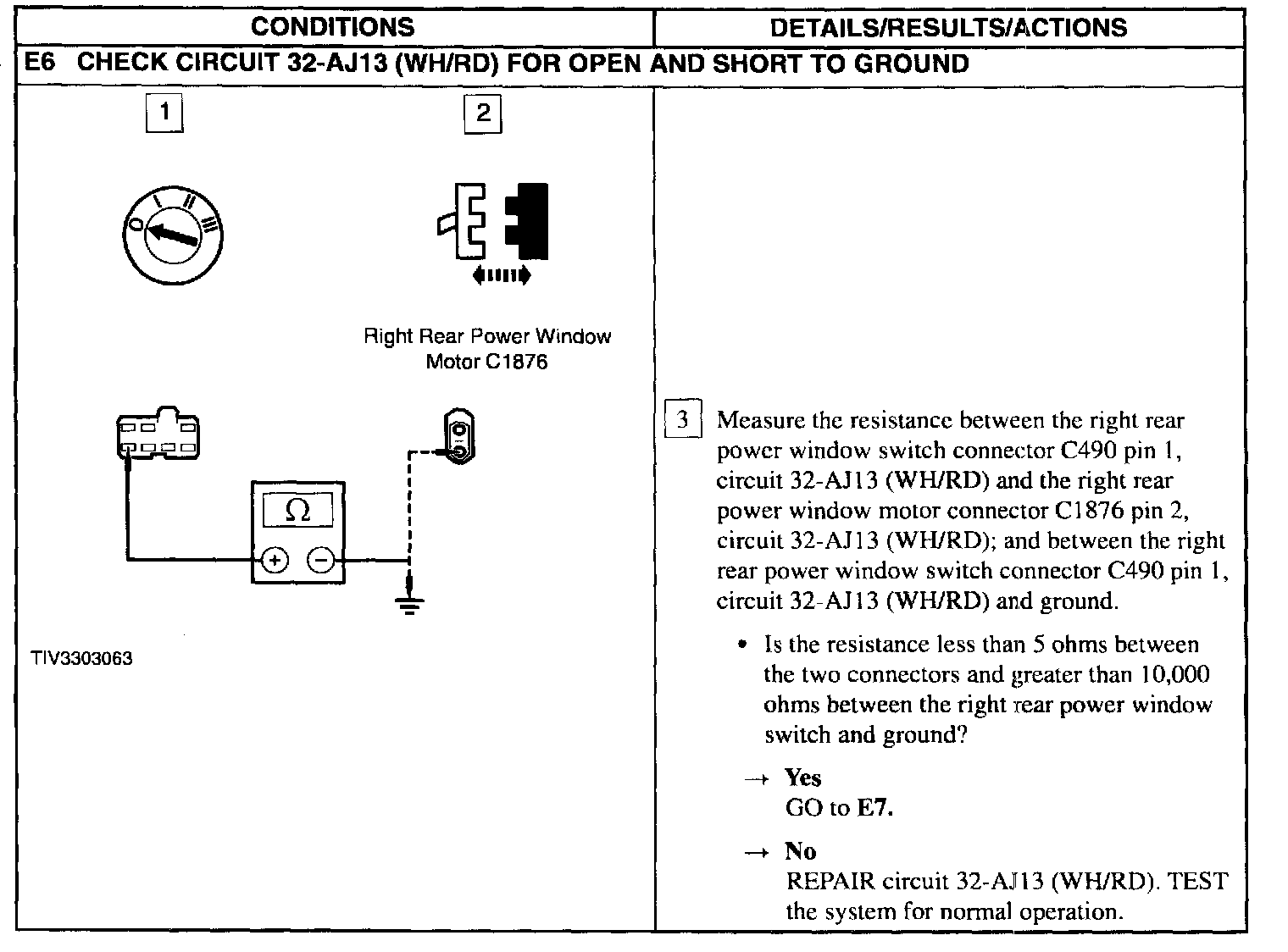

E6:






E7:
