Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> B: A Single Power Window Is Inoperative-LH

B: A Single Power Window Is Inoperative-LH

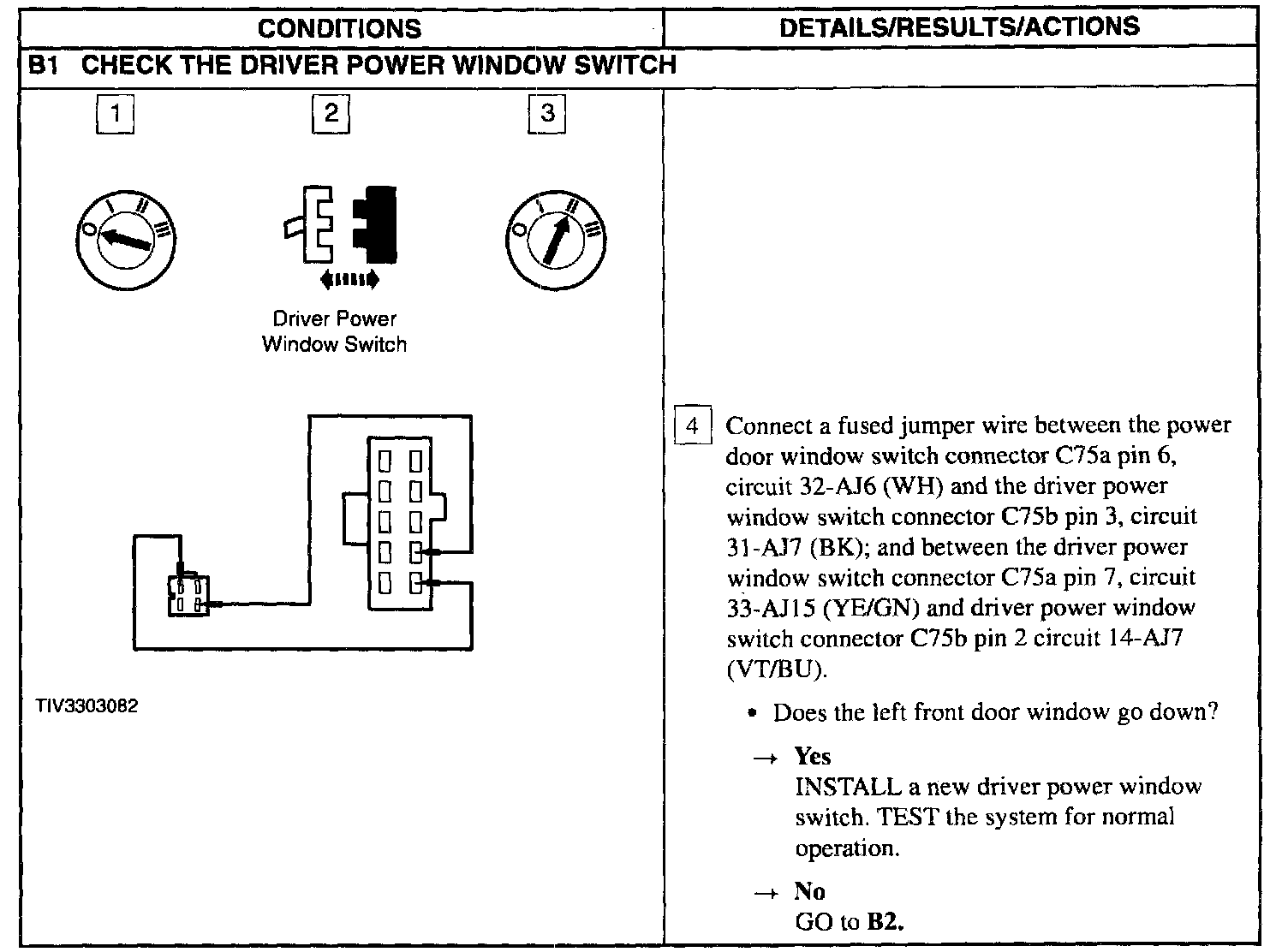

B1:

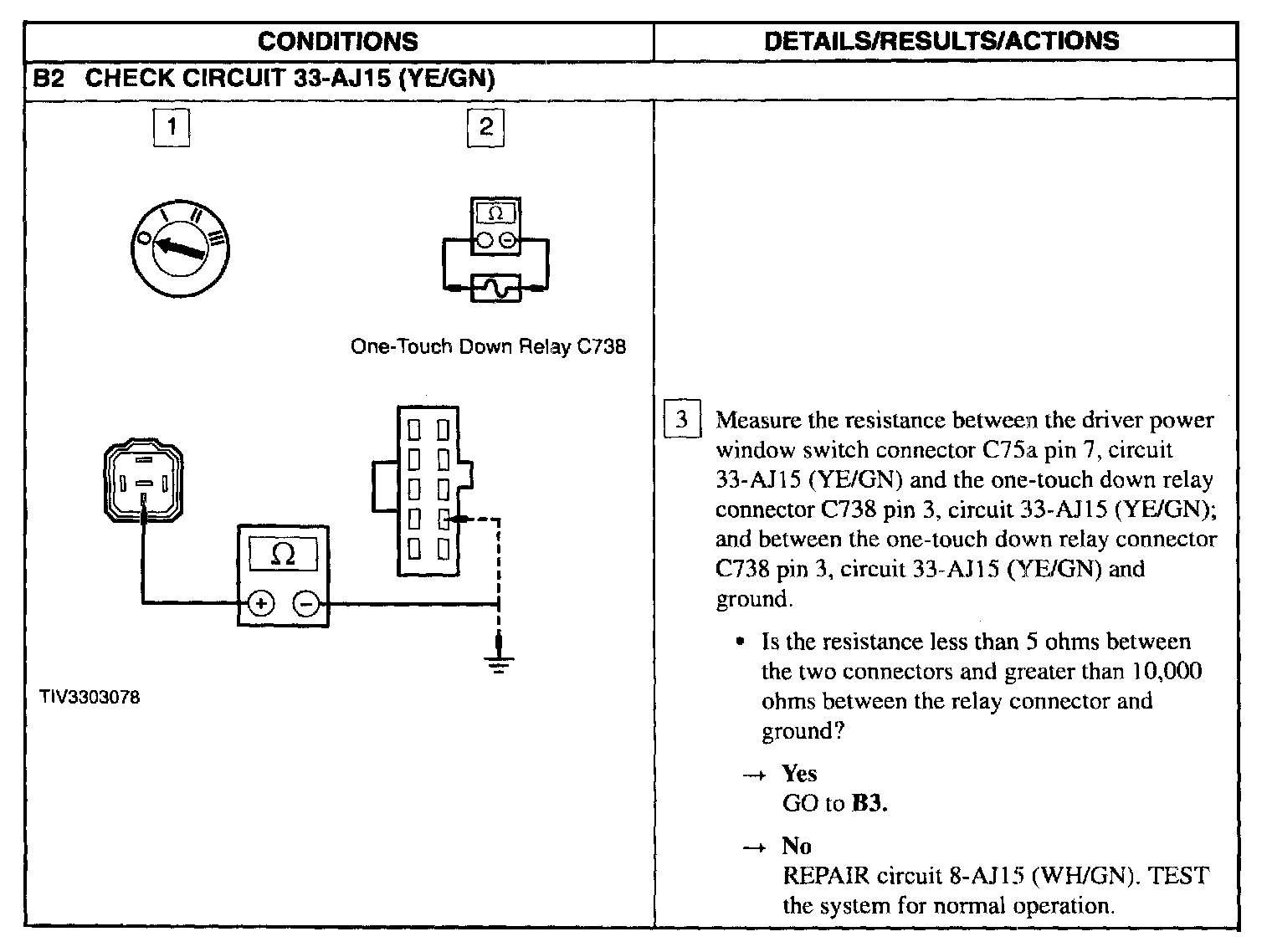

B2:

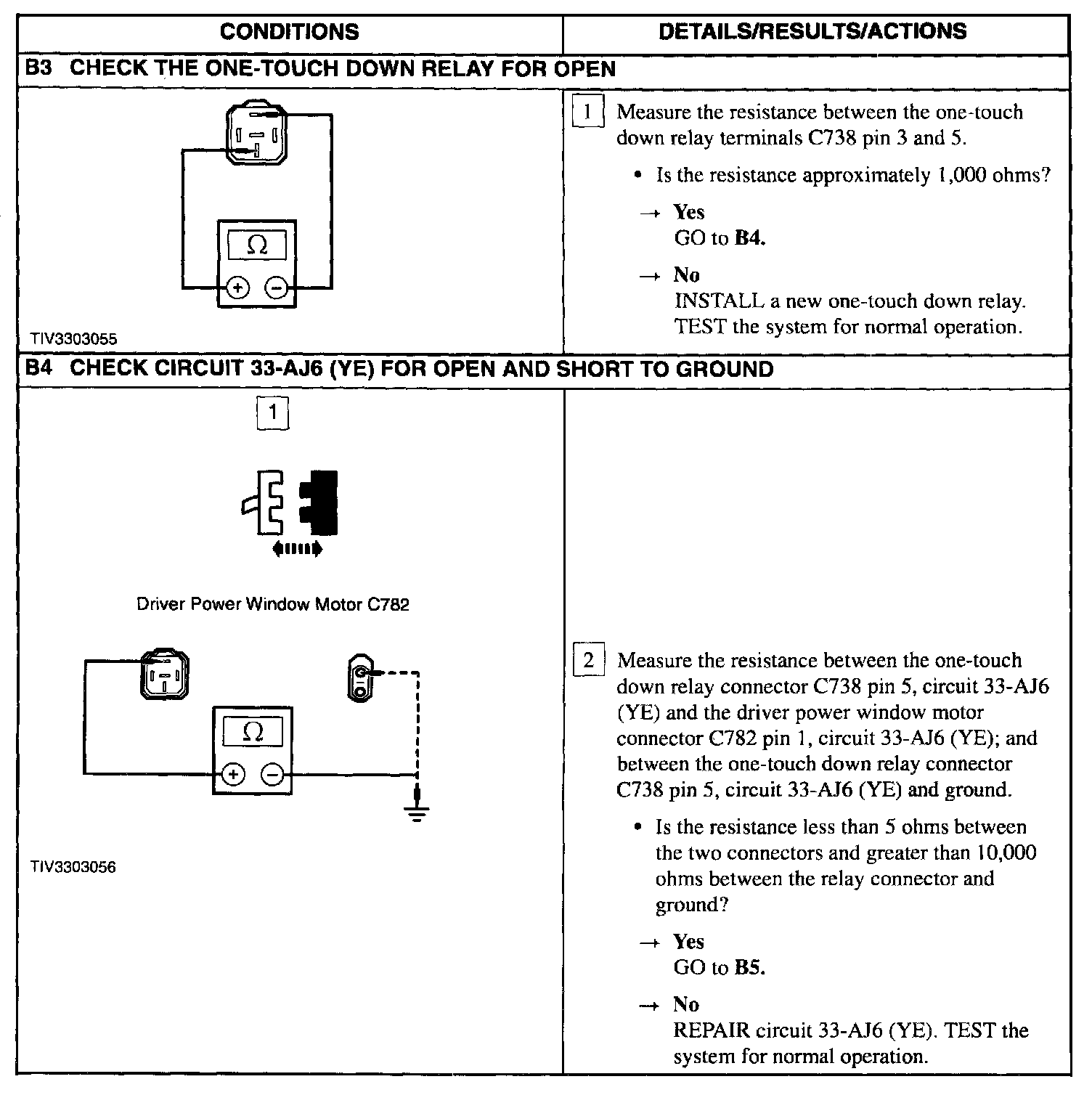

B3 - B4:

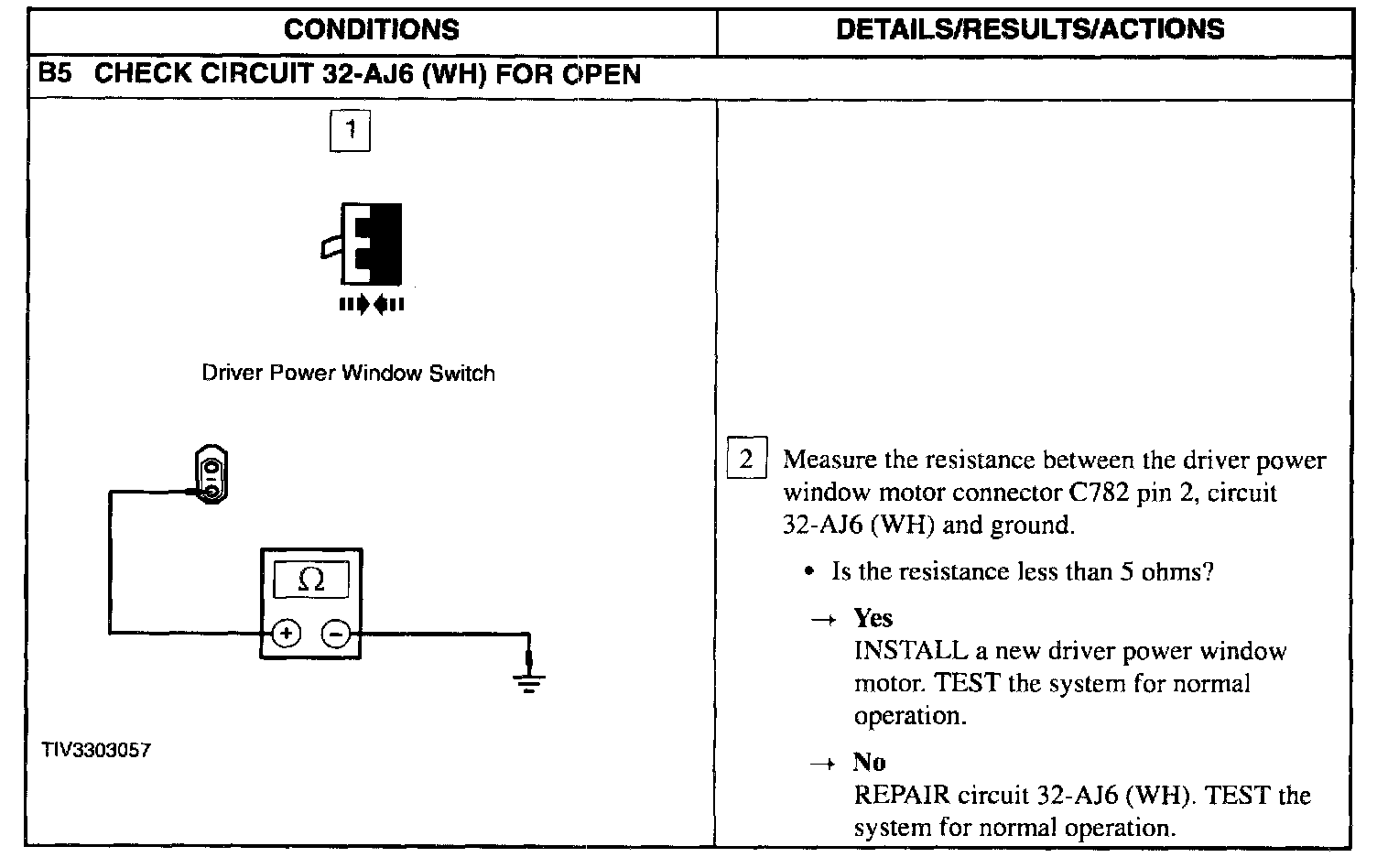

B5:
