Electrical Diagrams

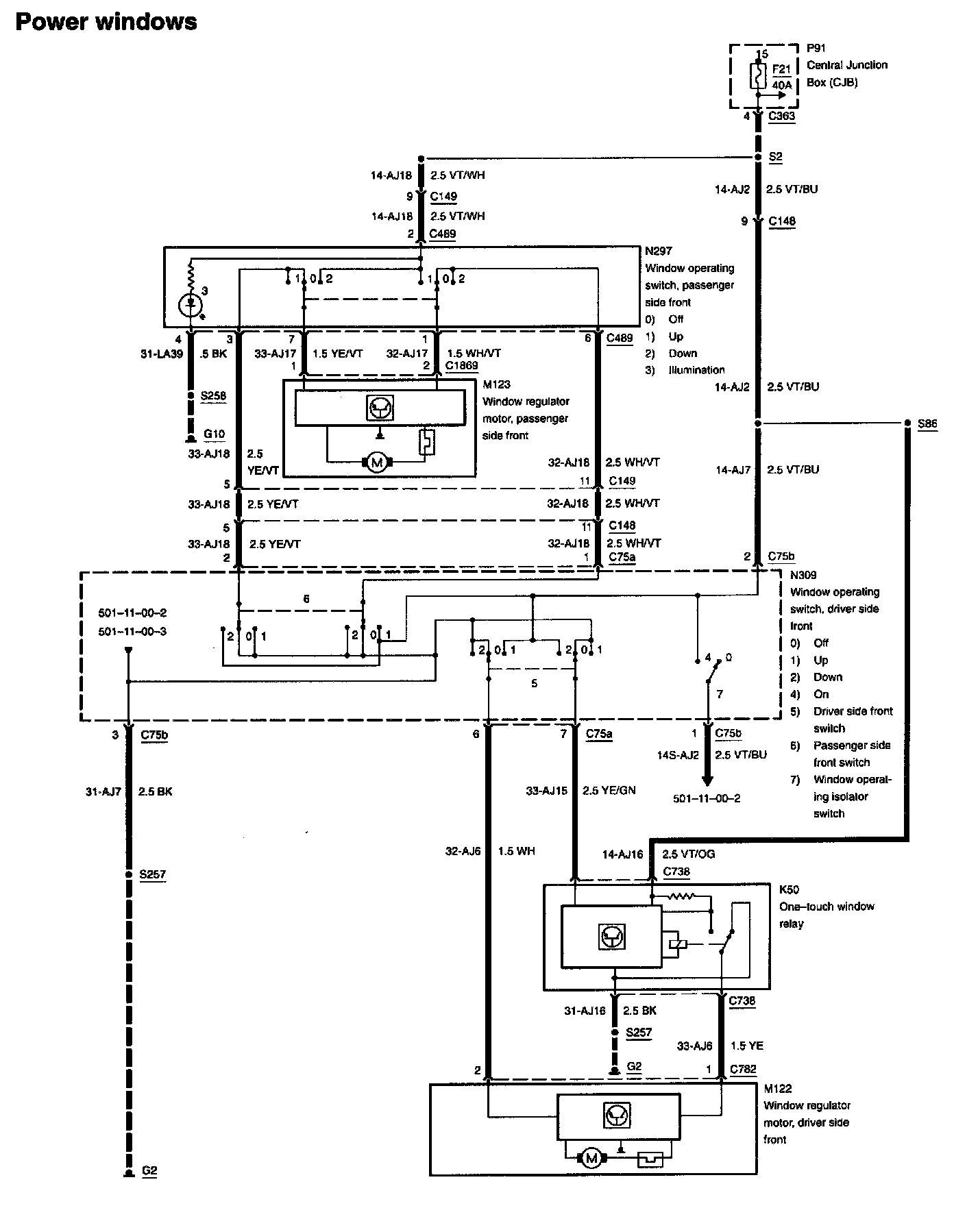

DETAILED DIAGRAMSDiagram 501-11-00-1:
Central Junction Box
Driver Side Front Switch
Fuse F21
One-Touch Window Relay
Passenger Side Front Switch
Window Operating Isolator Switch
Window Operating Switch, Driver Side Front
Window Operating Switch, Passenger Side Front
Window Regulator Motor, Driver Side Front
Window Regulator Motor, Passenger Side Front
Diagram 501-11-00-2:
Central Junction Box
Fuse F23
Window Operating Switch, Driver Side Front
Window Operating Switch, LH Side Rear
Window Regulator Motor, LH Side Rear

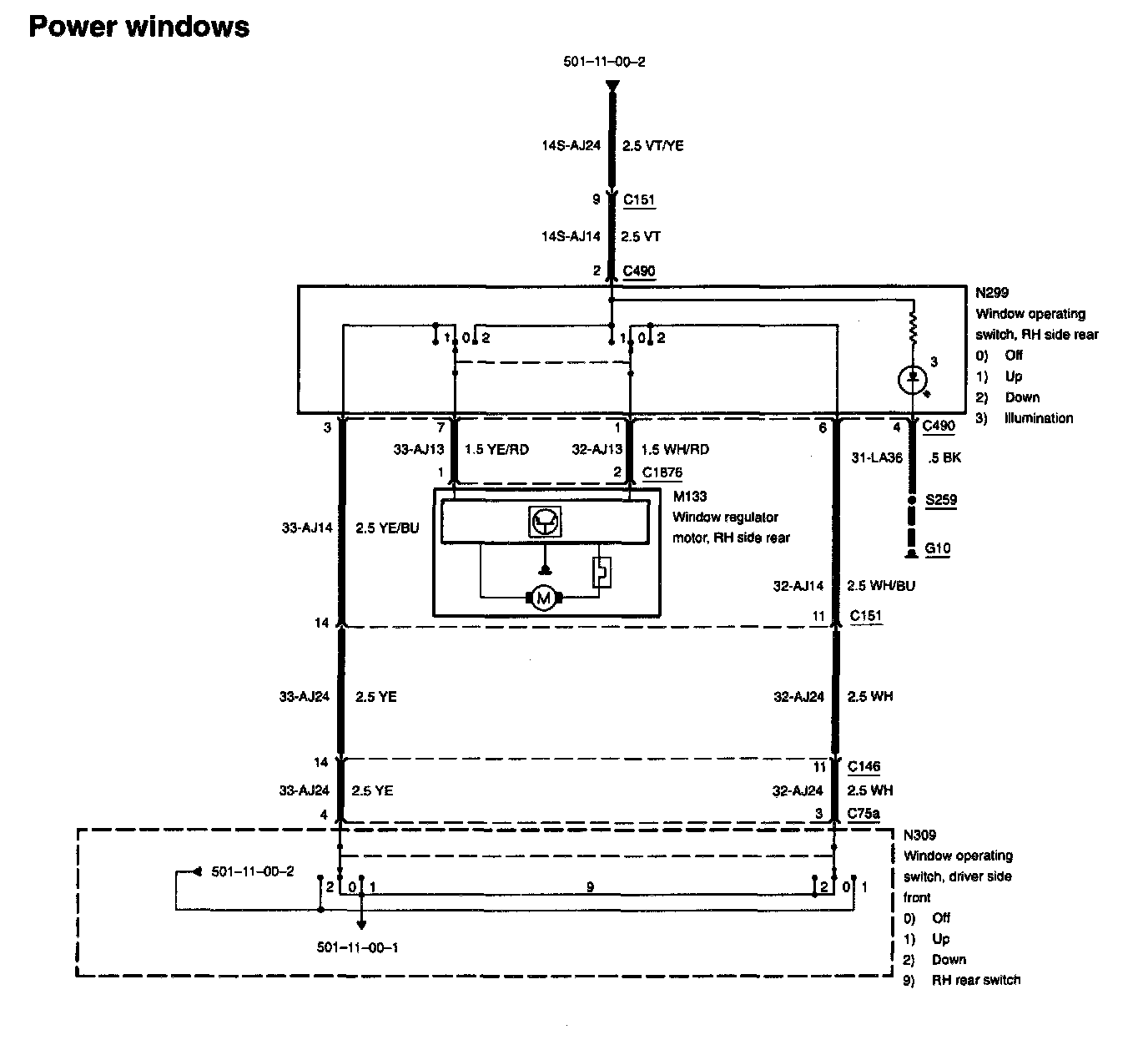

Diagram 501-11-00-3:
Window Operating Switch, Driver Side Front
Window Operating Switch, RH Side Rear
Window Regulator Motor, RH Side Rear

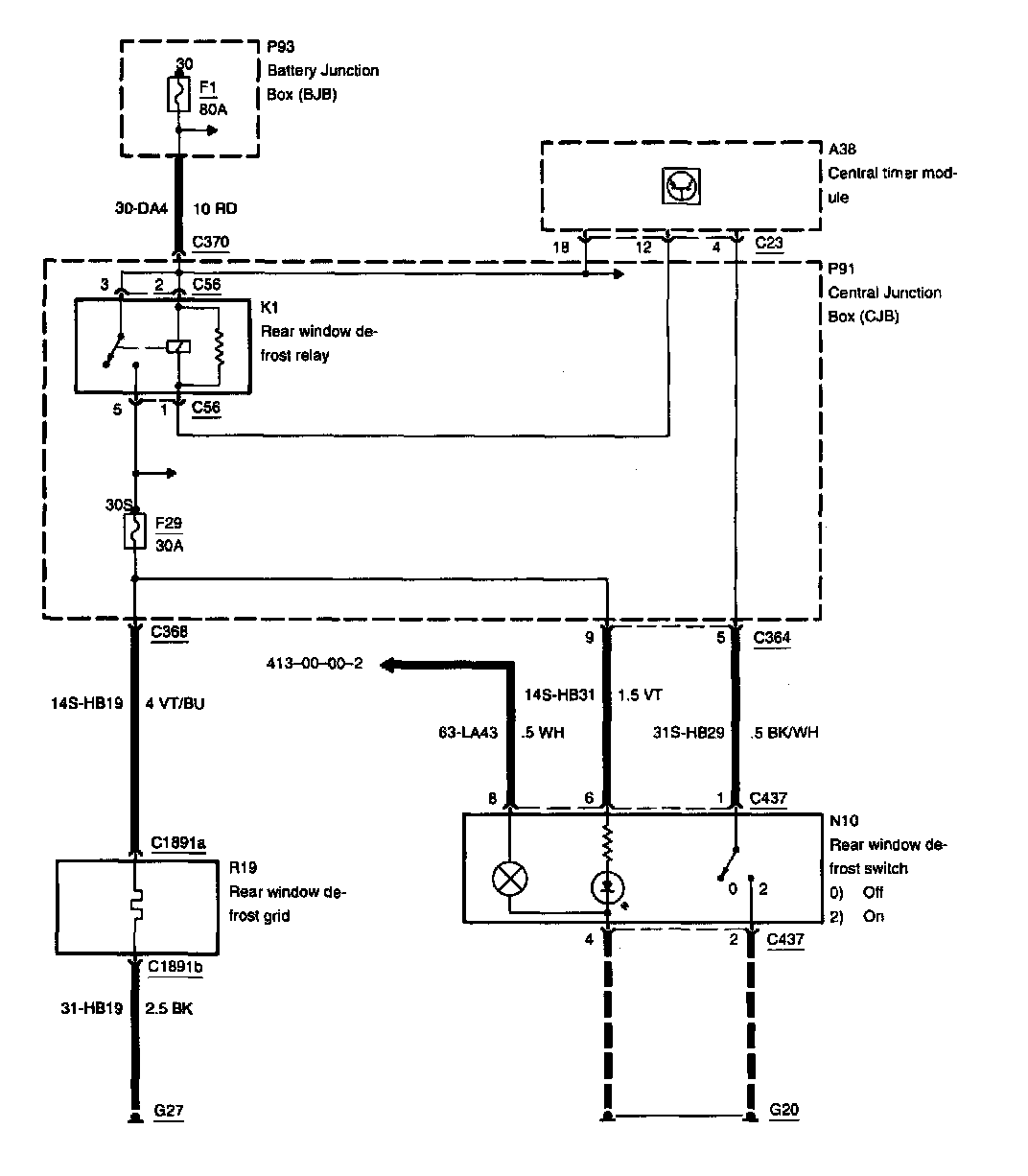

Diagram 501-11-00-4:
Battery Junction Box
Central Junction Box
Central Timer Module
Fuse F1
Rear Window Defrost Grid
Rear Window Defrost Relay
Rear Window Defrost Switch
RELATED DIAGRAM
