Lead Terminal

RENEWAL
1. Obtain the following service kit:
^ Service kit order number 50-25-0584-0029.
2. The vehicle should be brought inside and to reach 16°C (60°F) or above.
3. Clean the repair area with denatured alcohol.
4. Apply the epoxy to the repair area.

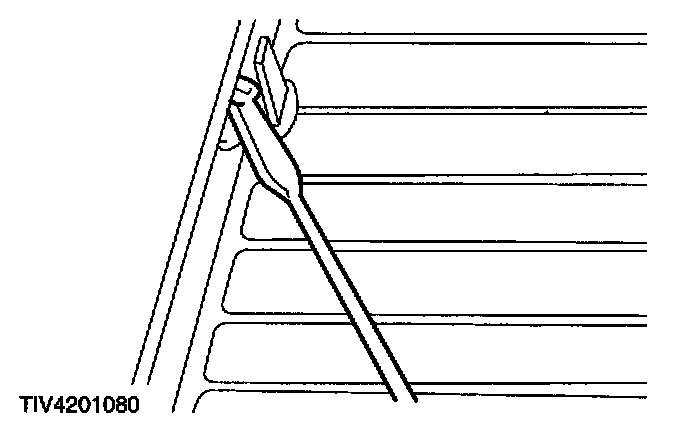

5. Hold the terminal in place with an appropriate tool for a period of one to two minutes.
