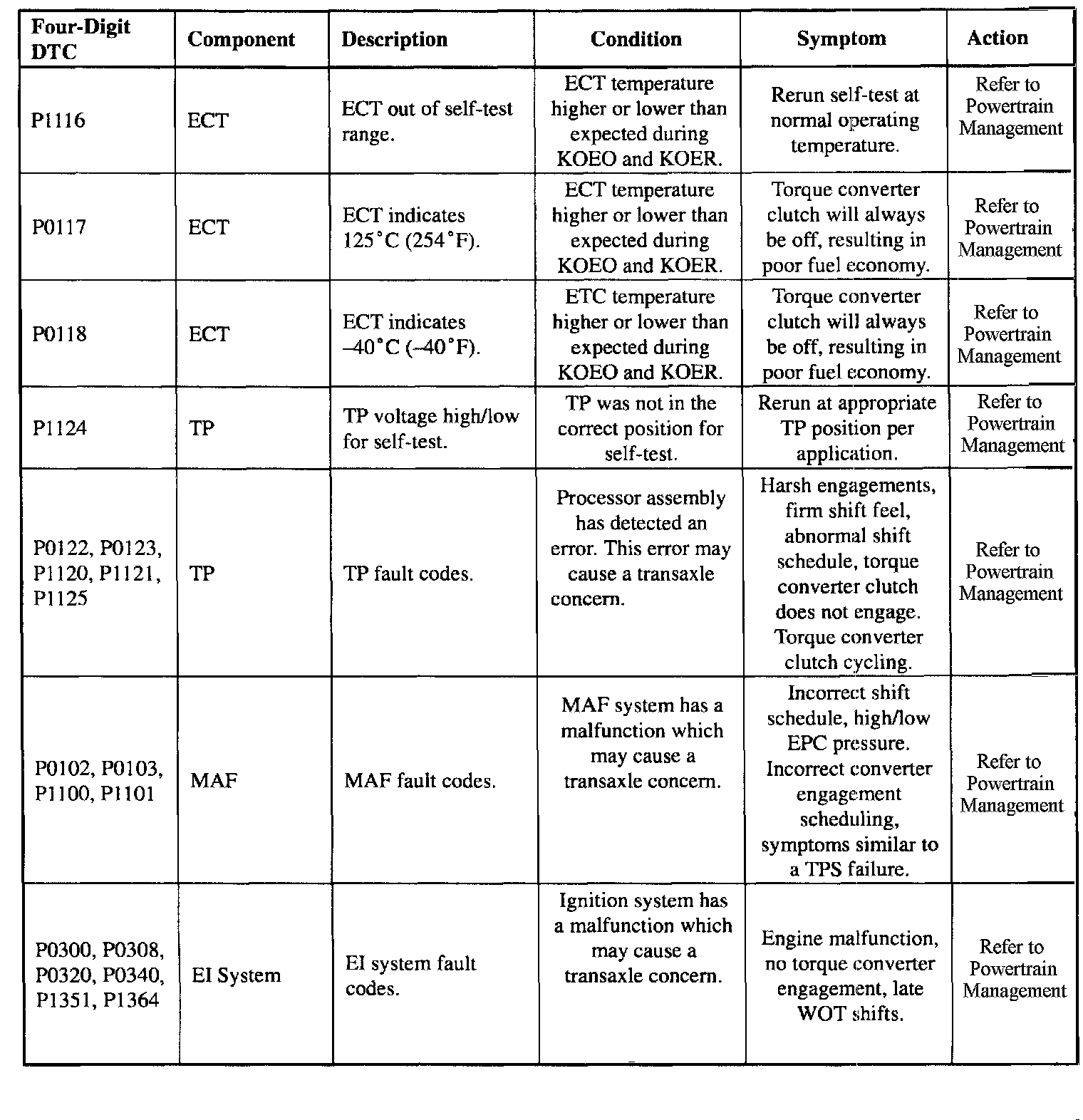

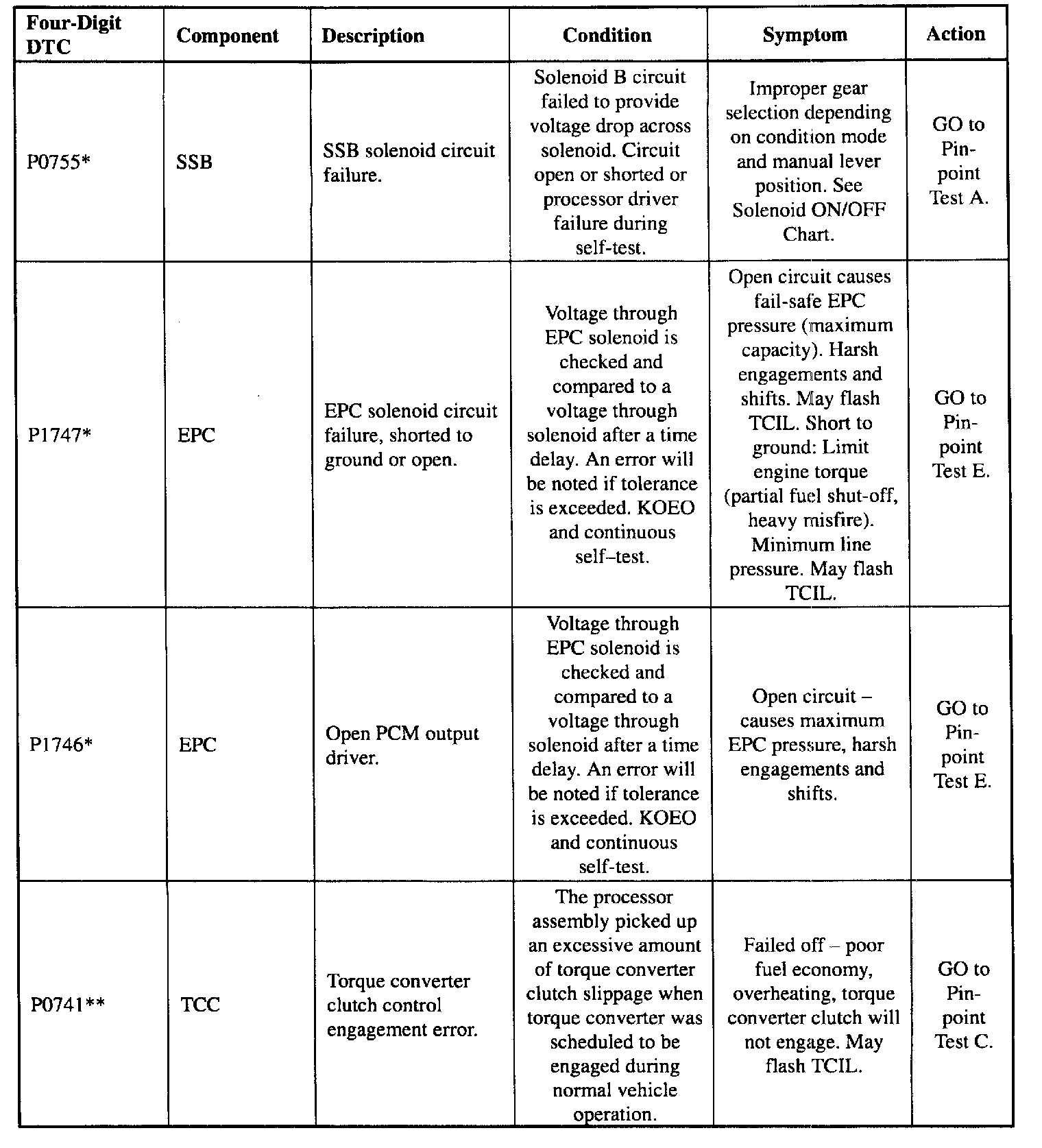

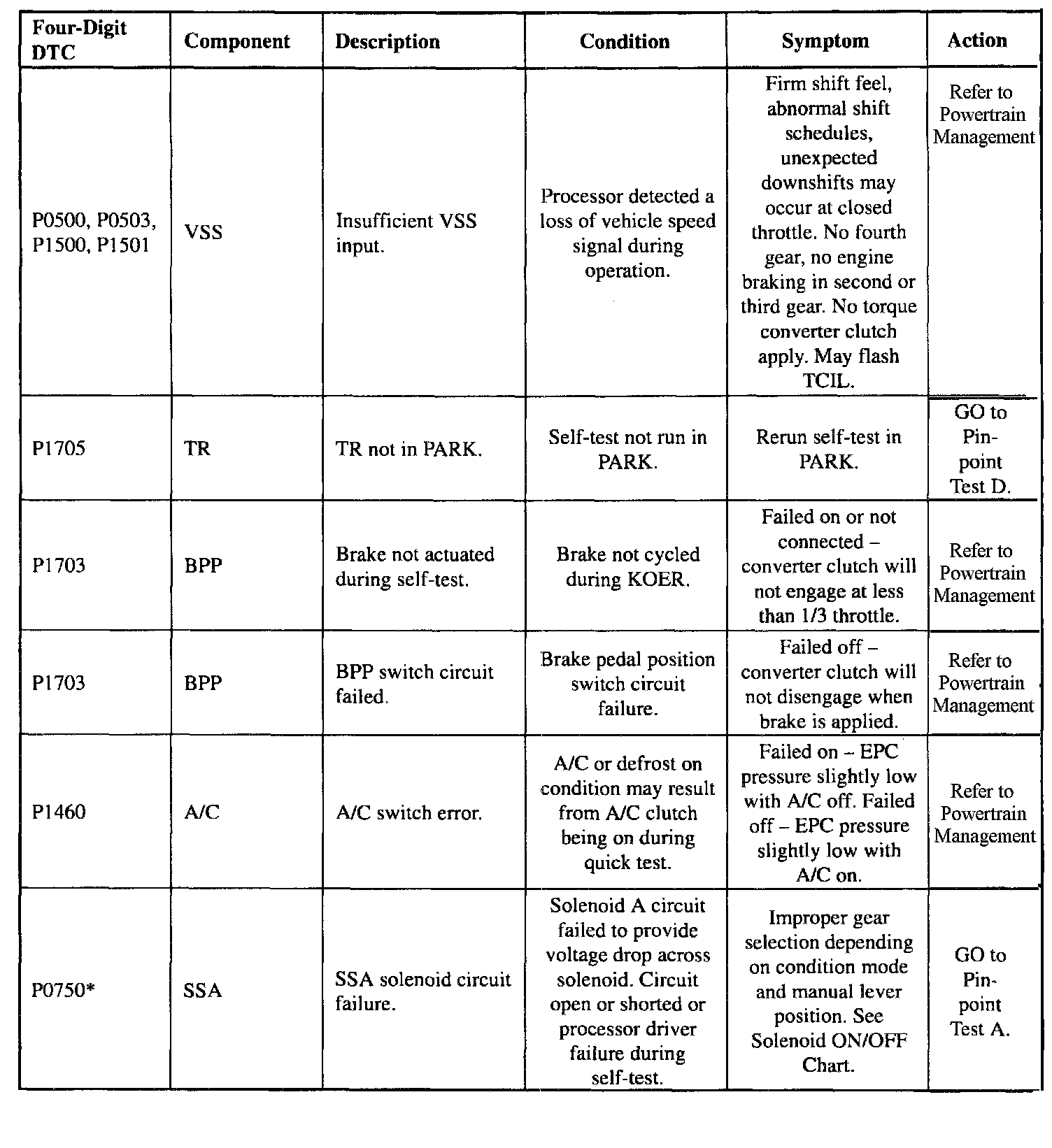

Diagnostic Trouble Code Tests and Associated Procedures

Part 1 Of 8:




Part 2 Of 8:




Part 3 Of 8:




Part 4 Of 8:




Part 5 Of 8:




Part 6 Of 8:




Part 7 Of 8:




Part 8 Of 8:
