Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> E: Clutch Related Vibrations

E: Clutch Related Vibrations

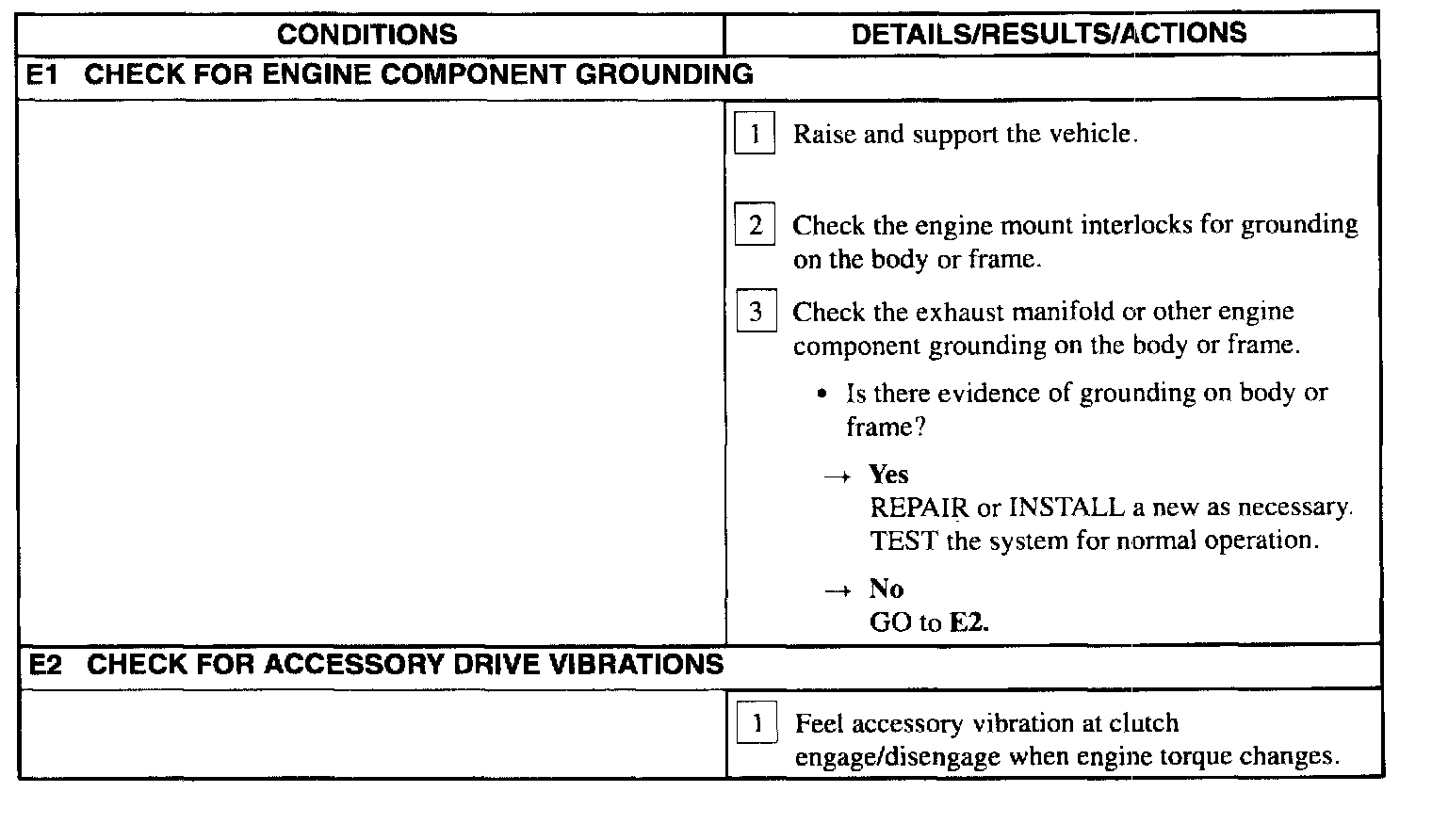

E1-E2:

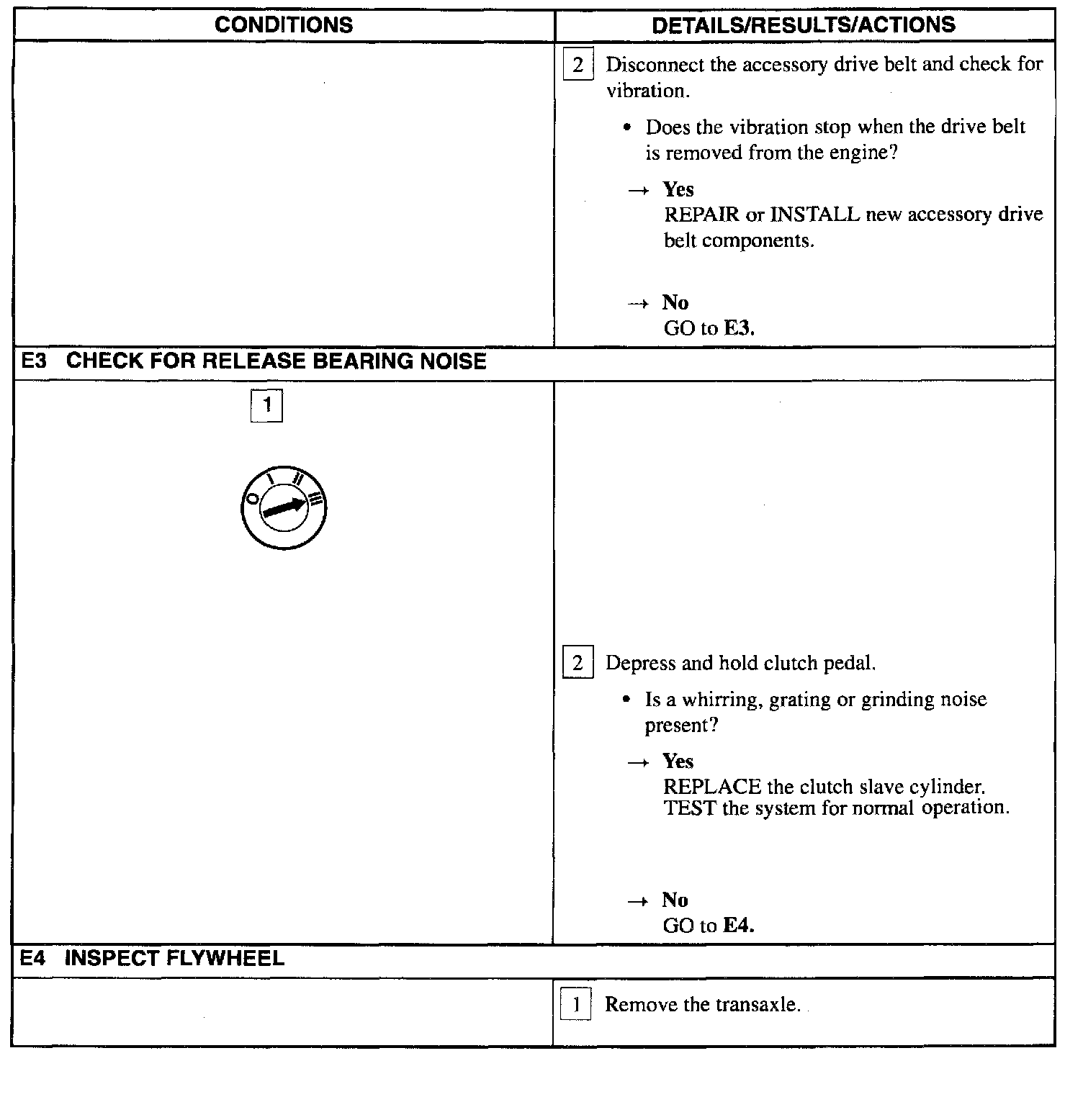

E2-E4:

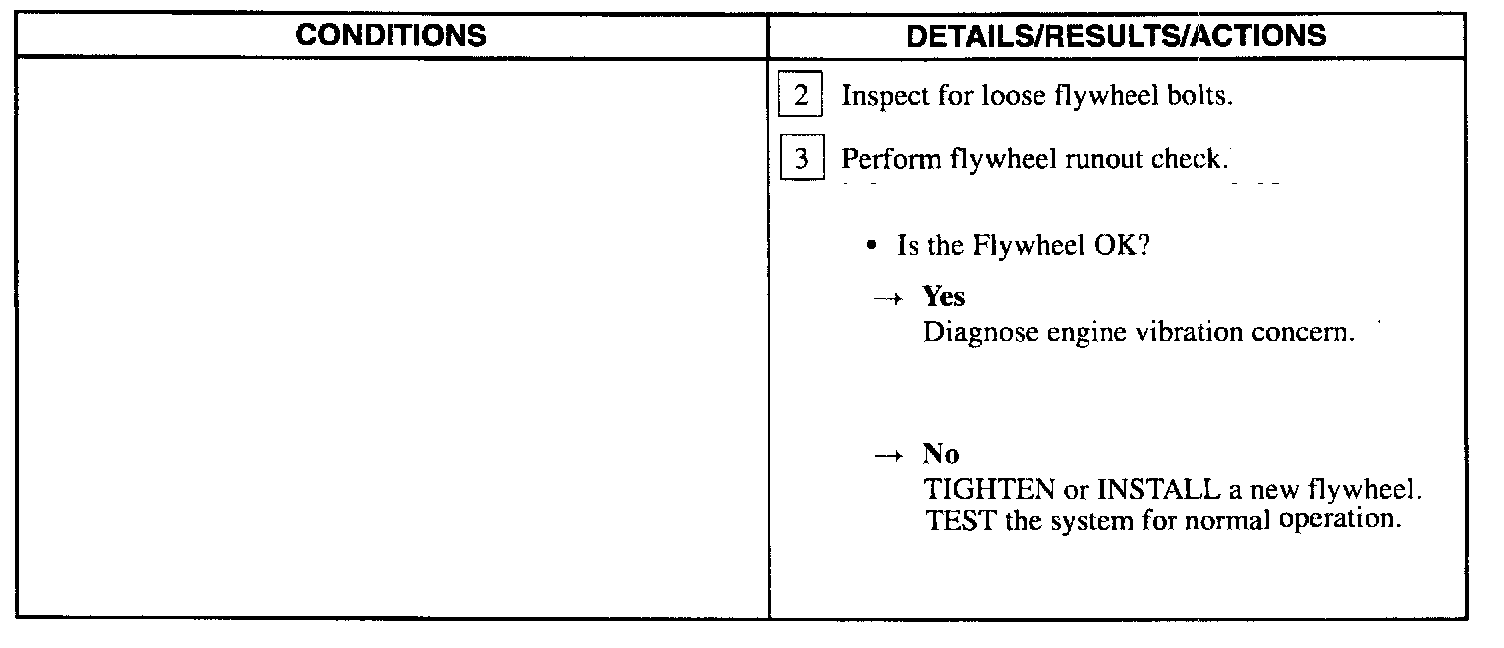

E4:
