Shift Cable: Adjustments

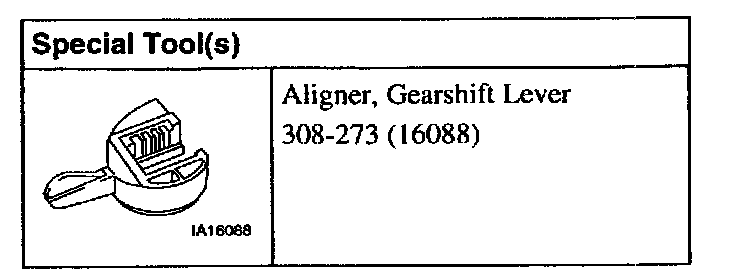

Special Tools:

Special Tool(s)


1. Standard preparatory measures
^ Make a note of the radio key code.
^ Make a note of the preset radio stations.

CAUTION: Disconnect the battery ground cable.

NOTE: Move the gearshift lever into neutral.

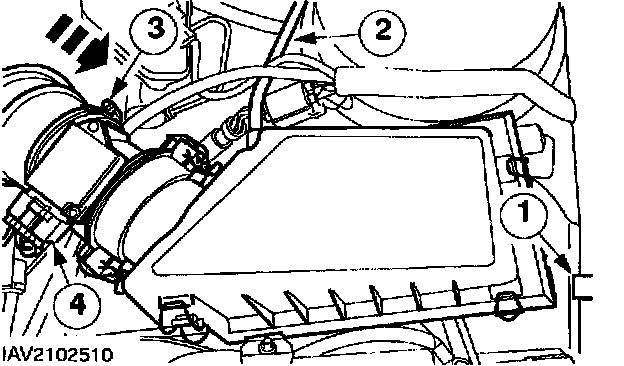

2. Remove the air cleaner.
1 Disconnect the Mass Air Flow (MAF) multiplug.
2 Undo the hose clip.
3 Disconnect the vacuum hose.
4 Unhook the rubber retainer.
^ Remove the intake hose.

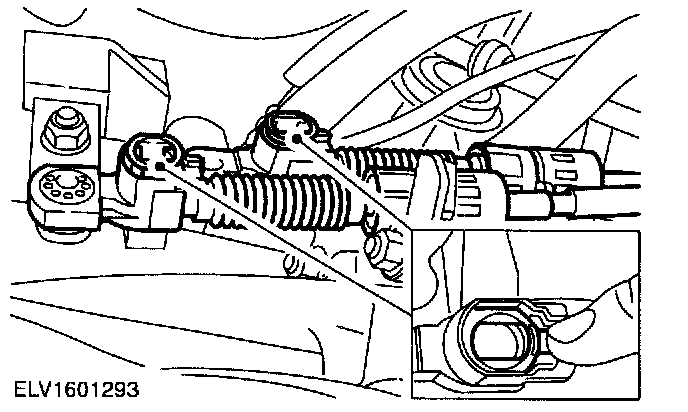

3. Release the adjusting mechanisms for the shift and selector cables by pressing them in (shown from below).

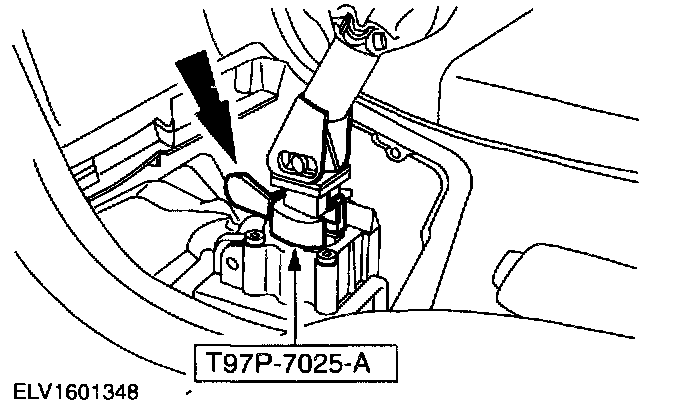

4. Unclip the boot, fold it up and insert the special tool.





5. Click the adjusting mechanisms onto the shift cable and selector cable (shown from below).





6. Install the air cleaner.
1 Hook the rubber retainer in place.
2 Connect the vacuum hose.
3 Tighten the hose clip.
4 Connect the MAF multiplug.
^ Fit the intake hose.





7. Take off the adjusting tool pull the boot over the gearshift lever and clip it in place.
8. Standard finishing operations:
^ Connect the battery ground cable.
^ Enter the radio key code.
^ Reprogram the preset radio stations.
^ Reset the clock.
^ Carry out a road test to enable the PCM to gather data.
