Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> D: Trans Control Switch Is Not Operating Properly

D: Trans Control Switch Is Not Operating Properly

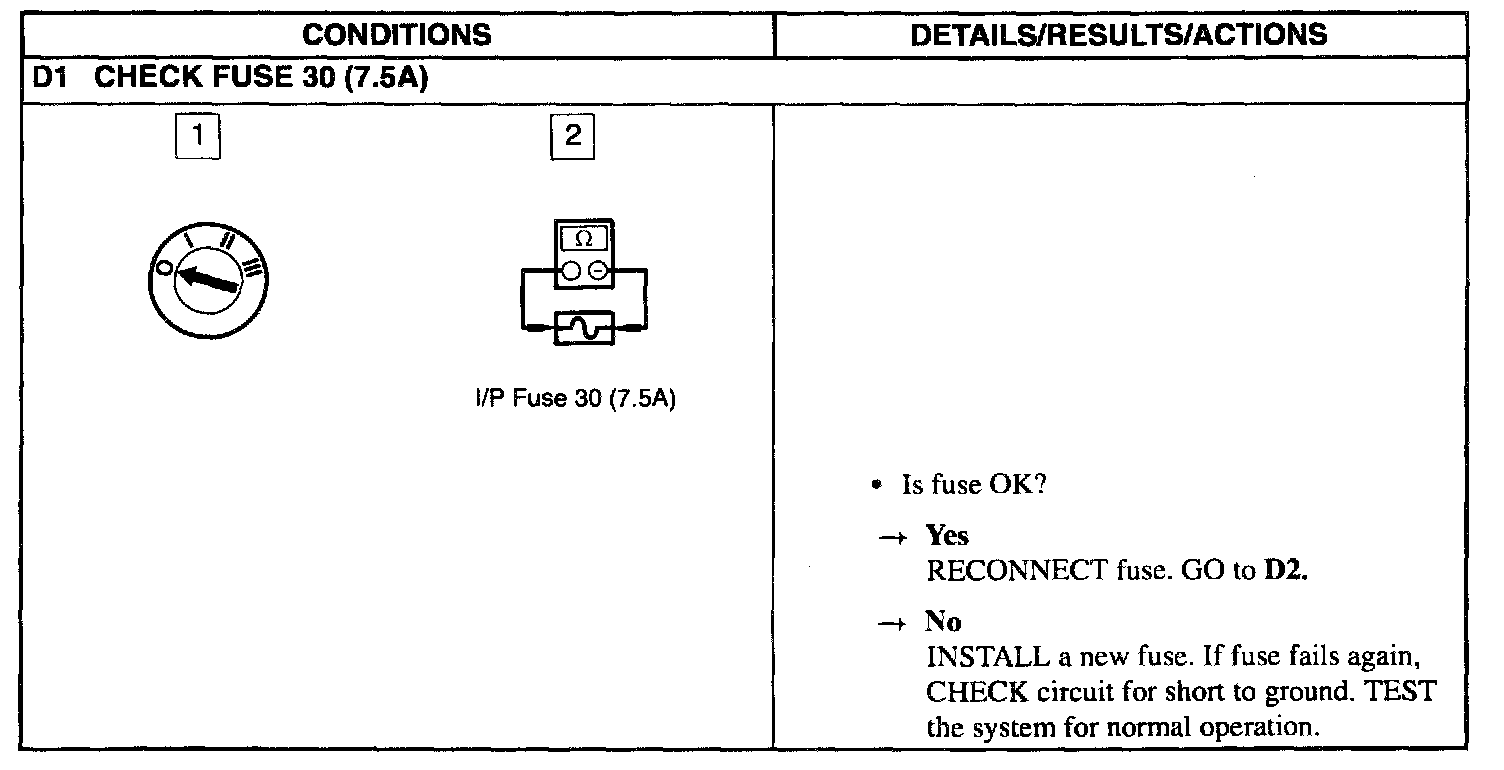

D1:

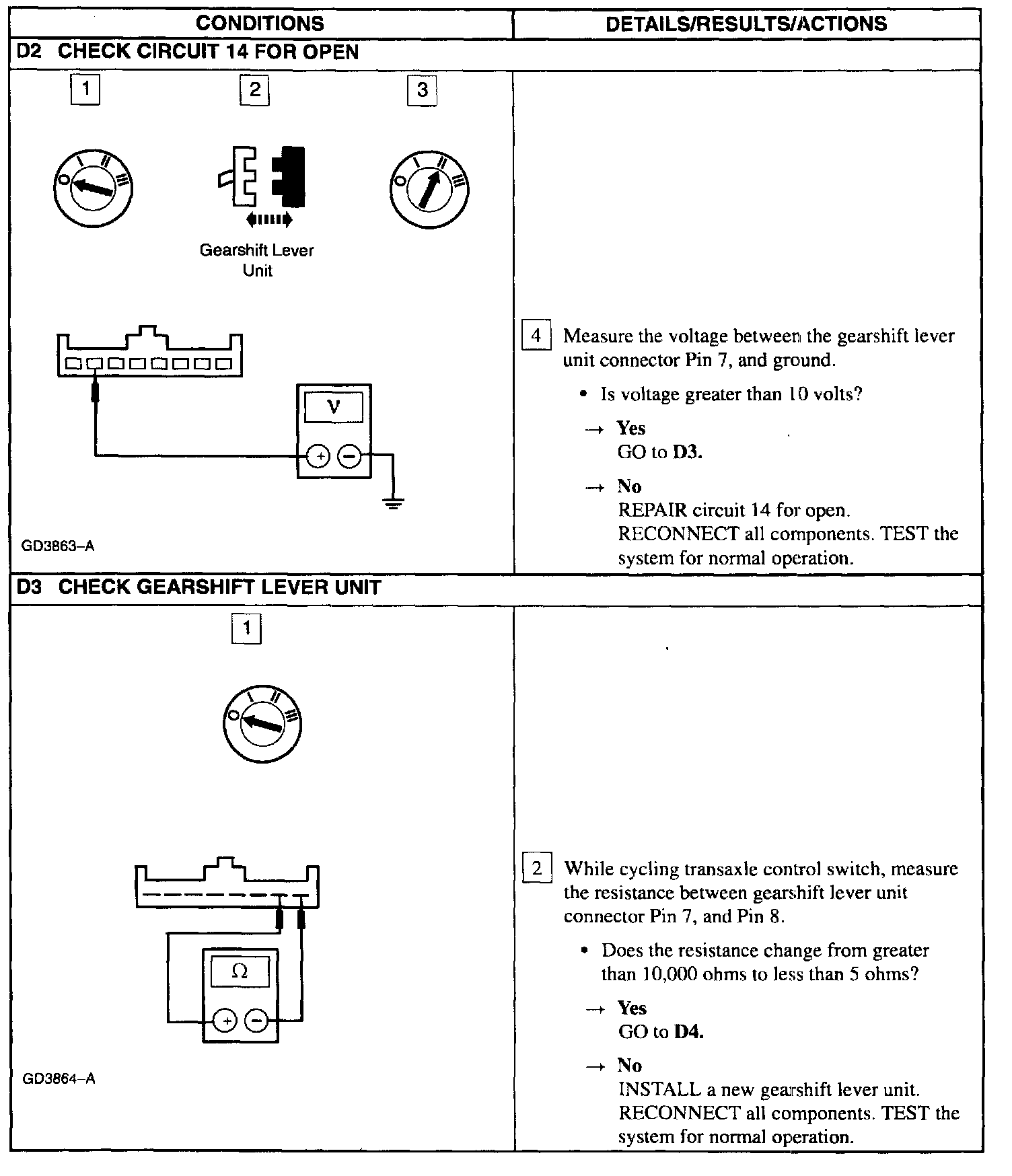

D2-D3:

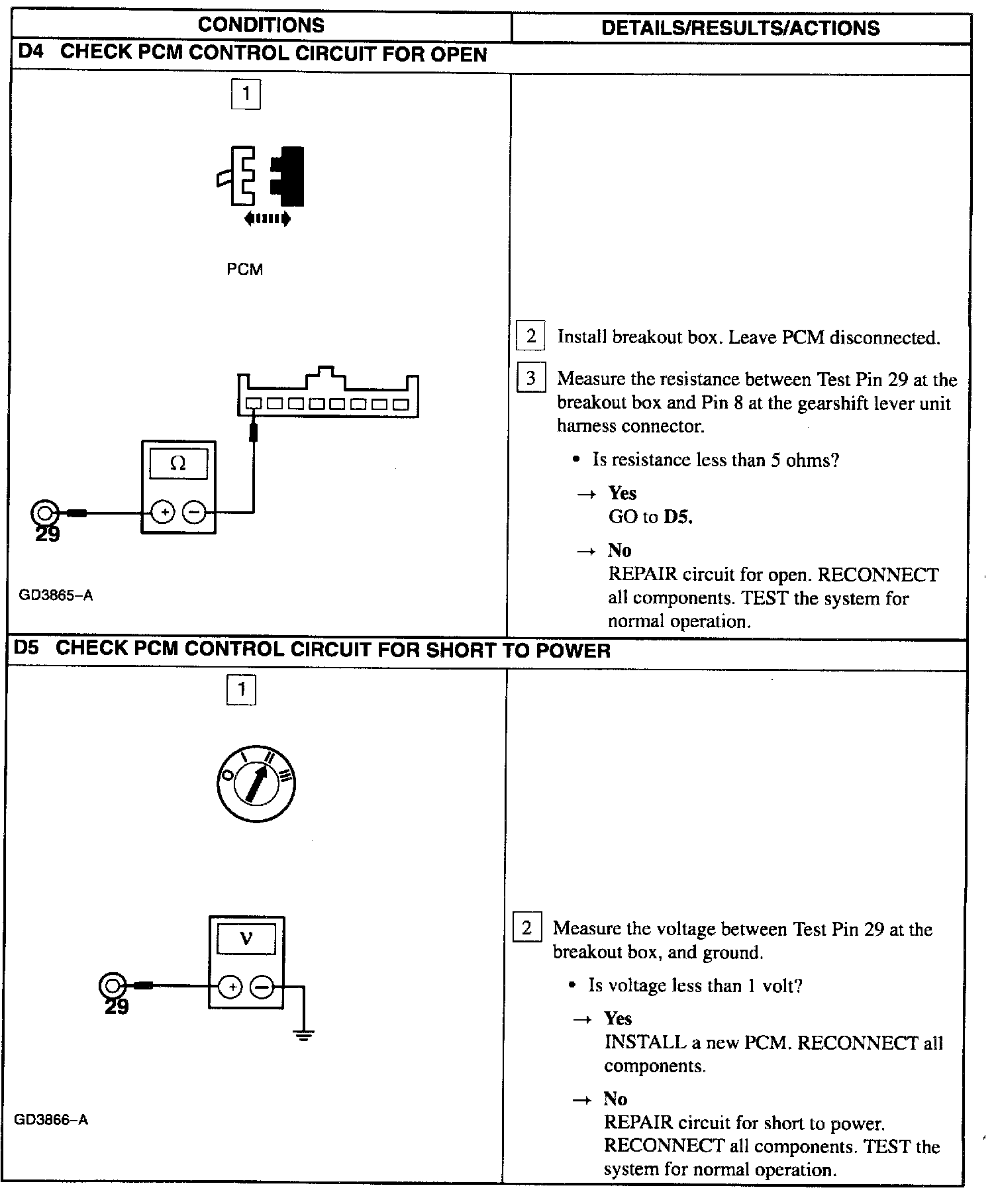

D4-D5:
