Shift Cable: Adjustments
Adjustment1. NOTE: The selector lever has its own detent mechanism. There is no need to hold it after engaging a gear.
Move the selector lever to position "D".
2. Raise the vehicle.

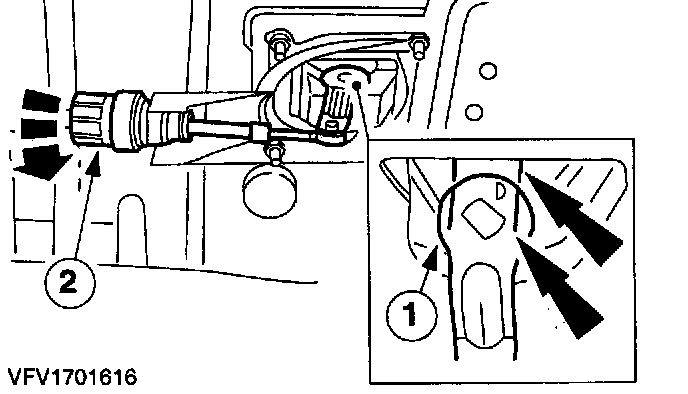

3. Adjust the selector cable.
NOTE: The marks line up in position "D". It is not necessary to hold it after engaging a gear because it has its own detent mechanism.
1. Move the selector lever to position "D".
2. Lock the selector cable adjusting cap.
4. Lower the vehicle.
