Chain Sprockets

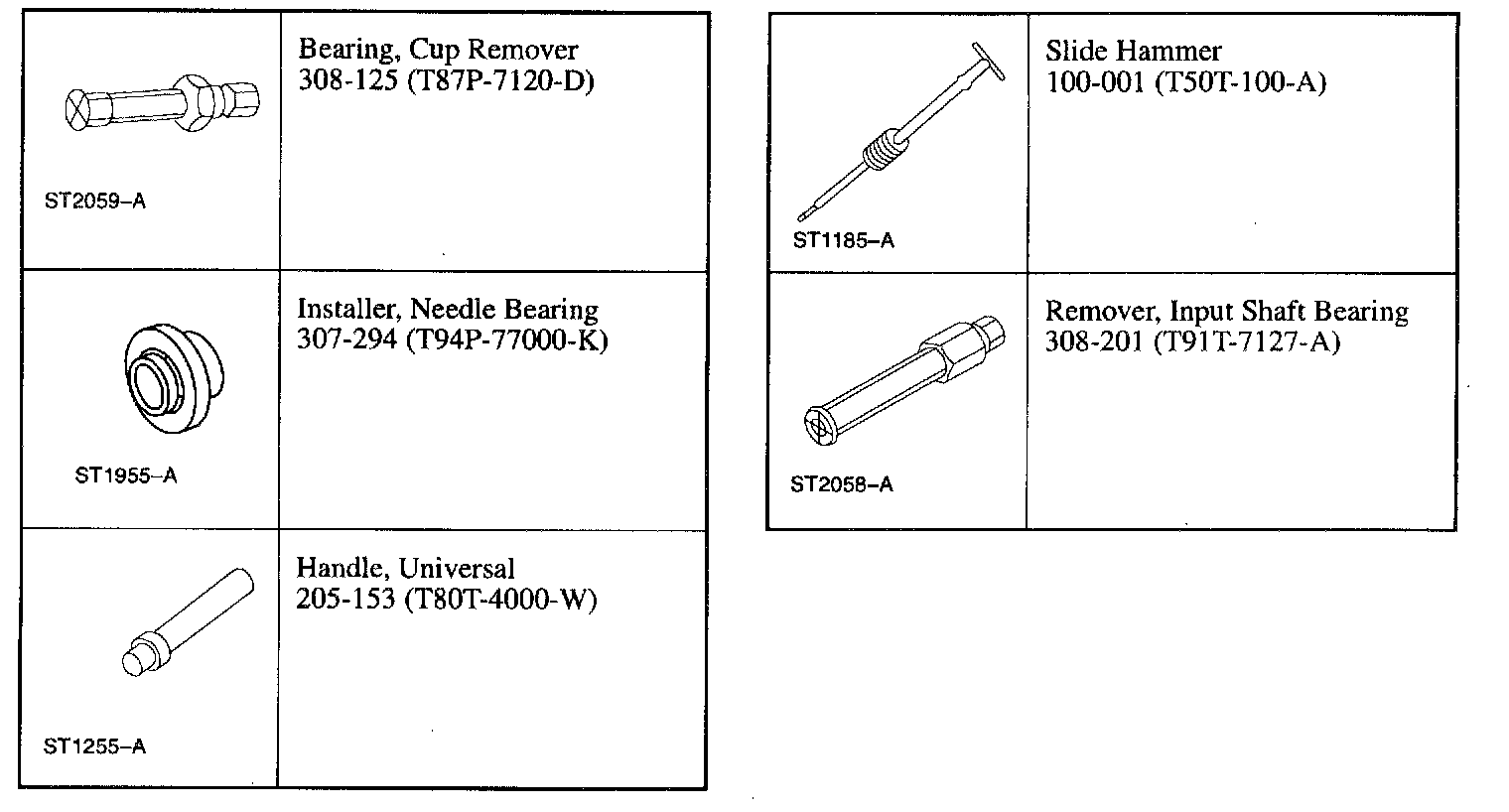

Special Tool(s)

Disassembly

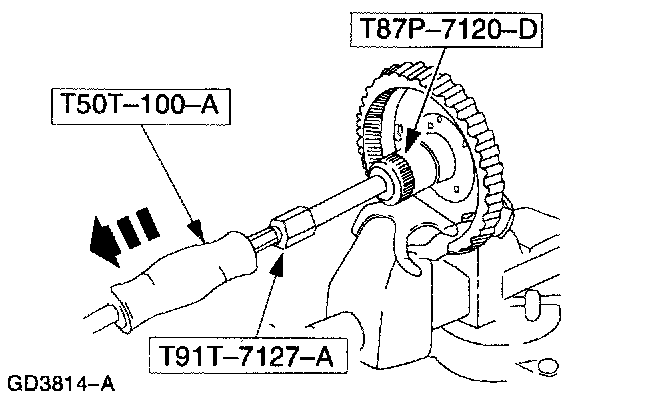

1. Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.

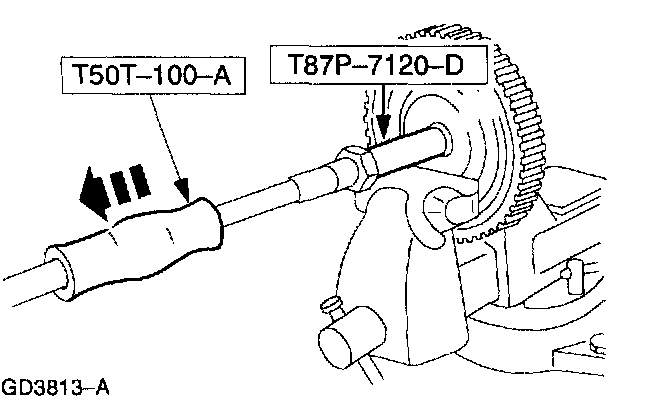

2. Using the special tools, remove the No.17 stator support bearing, as necessary.

Assembly

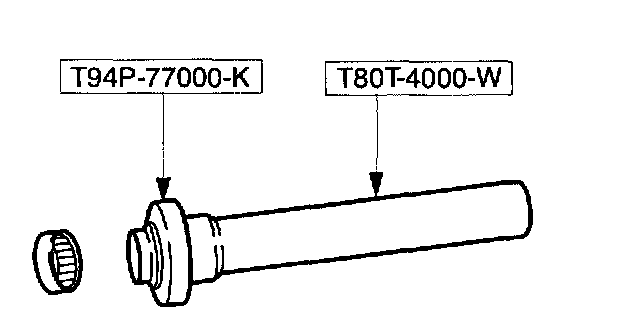

1. Position the No. 16 reverse/overdrive ring gear bearing on the special tool.
^ Position the bearing with the part number facing toward the handle of the special tool.

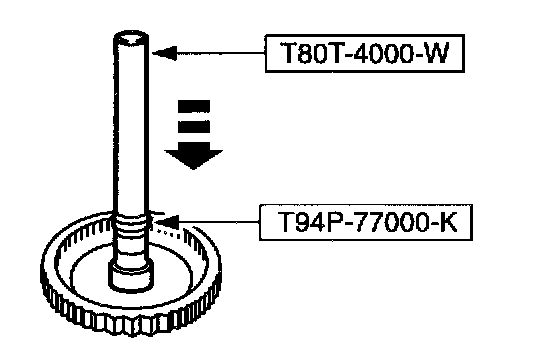

2. Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.

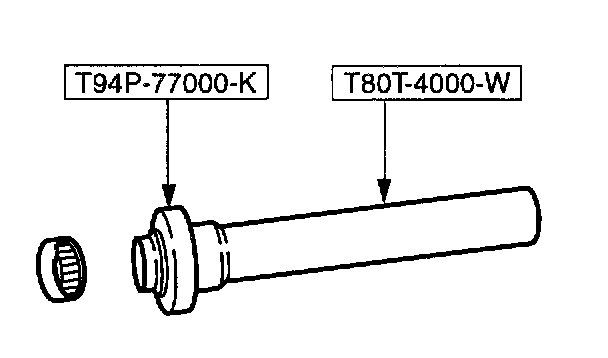

3. Position the No. 17 stator support bearing on the special tool.
^ Position the bearing with the part number facing toward the handle of the special tool.

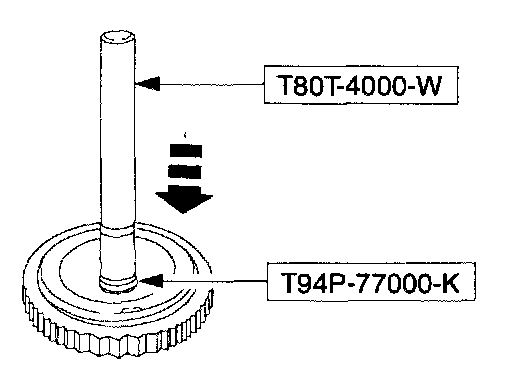

4. Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
