Shift Interlock Components

The Instrument Interface Module (C440) is located behind the dash panel, near the instrument cluster.

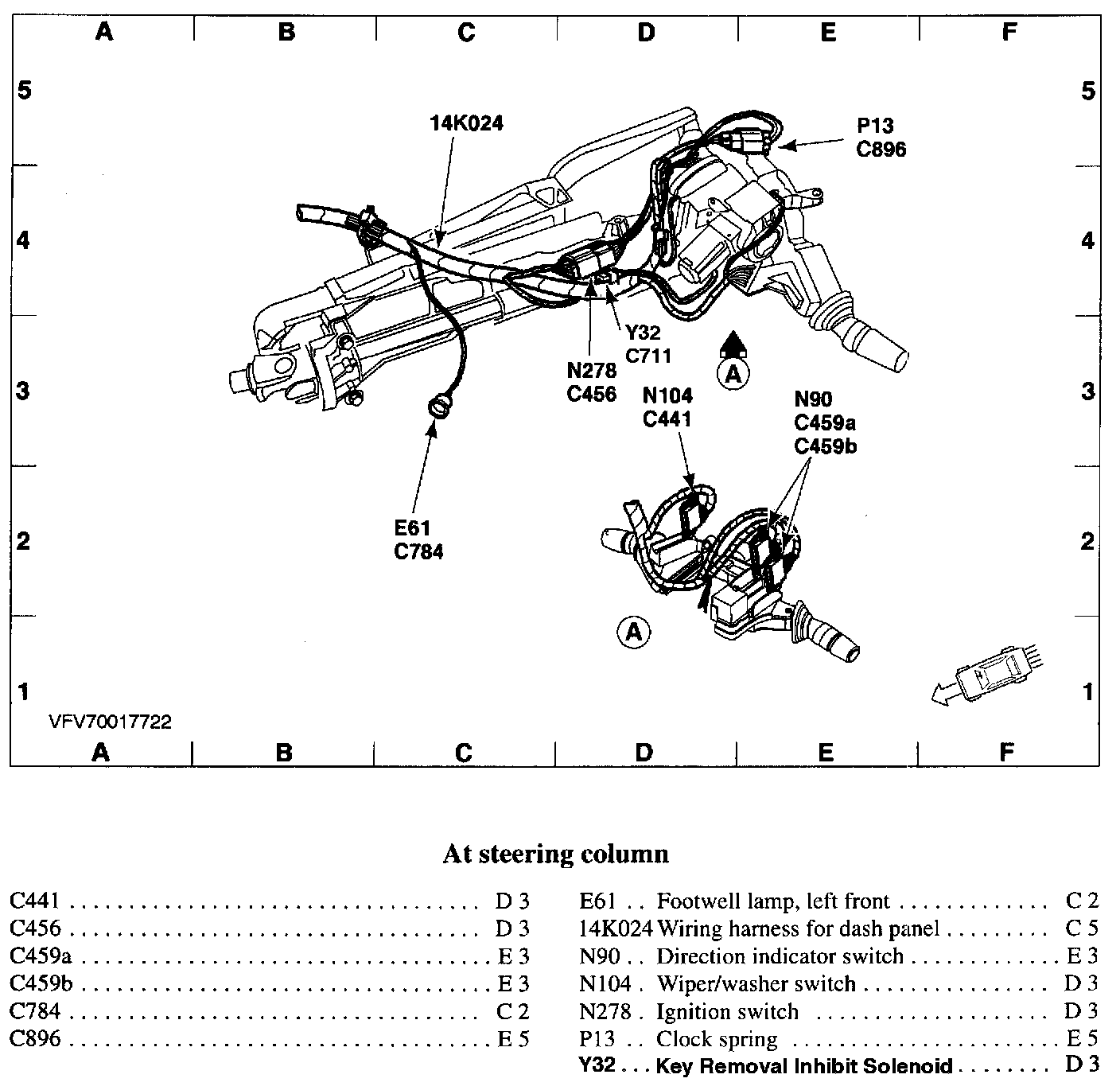

The Key Removal Inhibit Solenoid (C711) is located on the steering column.

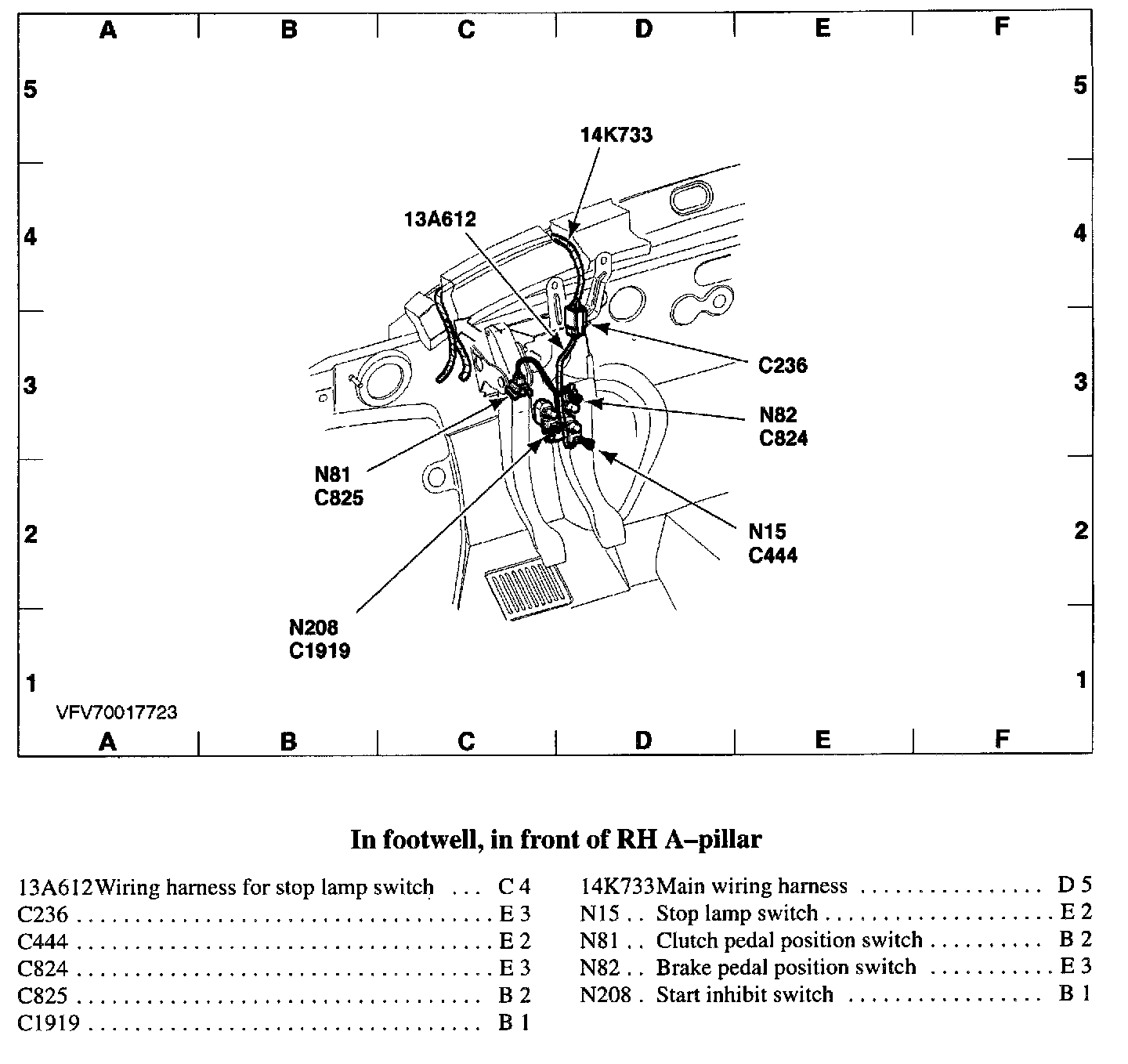

Stop Lamp Switch (C444) is located on the brake pedal support.
