Manual Transaxle

The function of the starting system is to crank the engine at a speed fast enough to allow the engine to start. Heavy cables, connectors and switches are used in the system because of the large currents required.

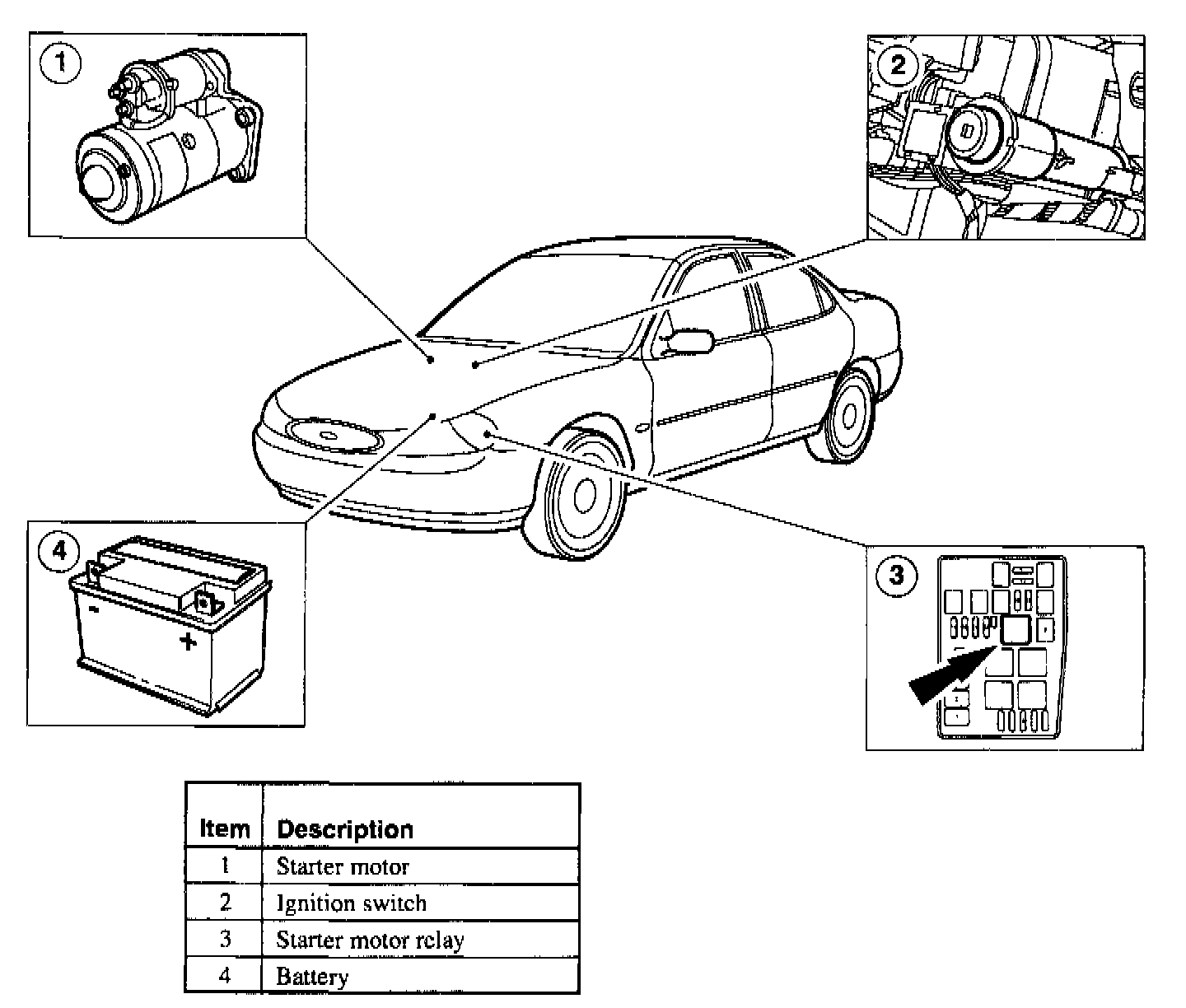

The starting system consists of a gear reduced starter motor, battery, remote control switch (ignition switch) and relay.

These vehicles have a start inhibit switch in the starter control circuit, which prevents operation of the starter motor unless the clutch pedal is in the applied position.

The sequence of operation is as follows:
- Ignition switch in the start position III.
- Starter relay activated.
- Voltage provided to the starter motor solenoid.
- Starter solenoid engages the drive pinion to the ring rear.
- Starter solenoid switches the battery current to the starter motor.
- System remains engaged until the ignition switch is released.
