Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> F23

F23


Diagram 700-03-00-17:






Diagram 700-03-00-18:






Diagram 700-03-00-19:






Built Before May 3, 1999

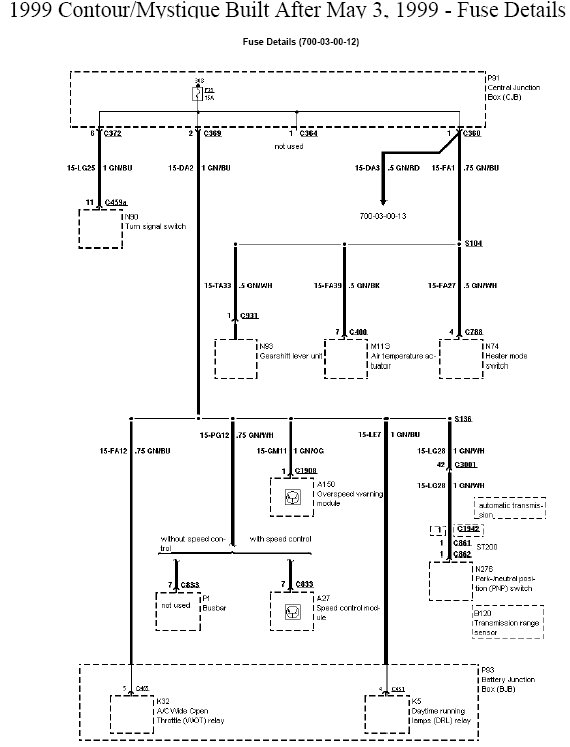

Built After May 3, 1999
