Battery Tray

REMOVAL

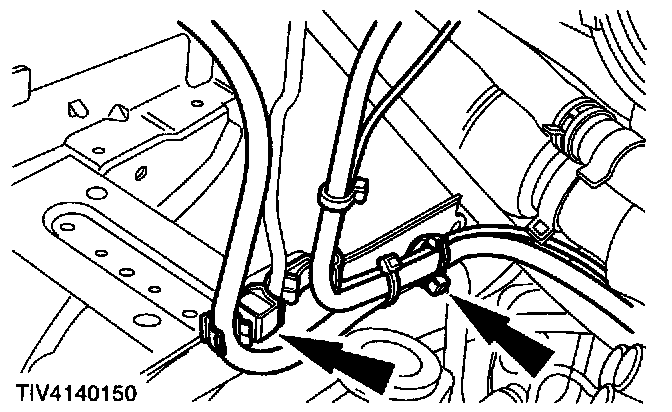

1. Remove the battery.
2. Remove the air cleaner.







3. Disconnect the battery cables from the clips.







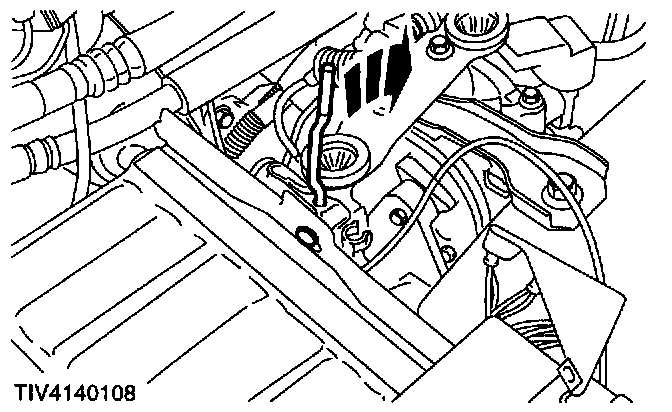

4. Remove the rear battery mounting clamp bolt.
- Push down, swing out to remove.

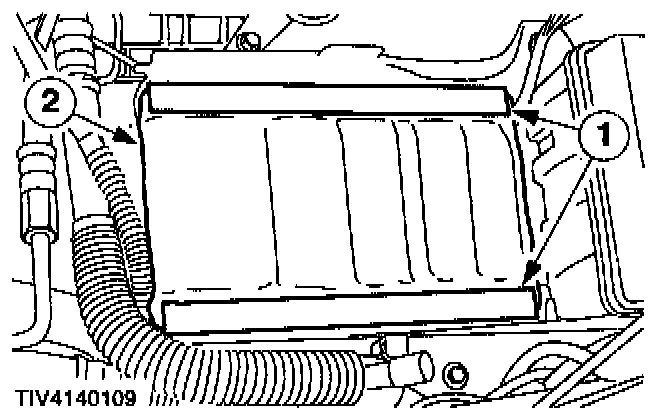

5. Remove the insulation pad from the battery tray.
1 Remove the securing strips.
2 Remove the insulation.

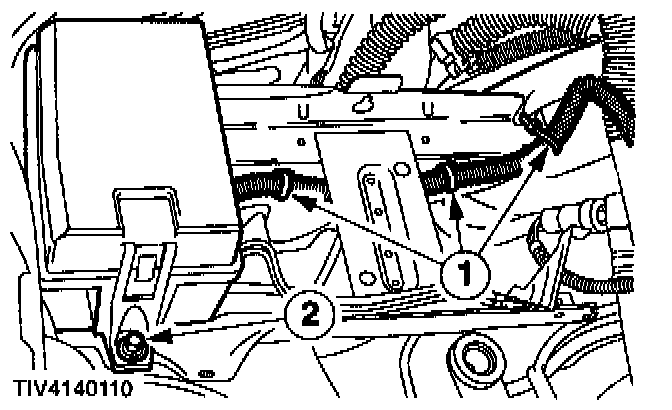

6. Disconnect the battery junction box.
1 Remove the cable ties.
2 Remove the retaining bolt.
- Position the battery junction box aside.

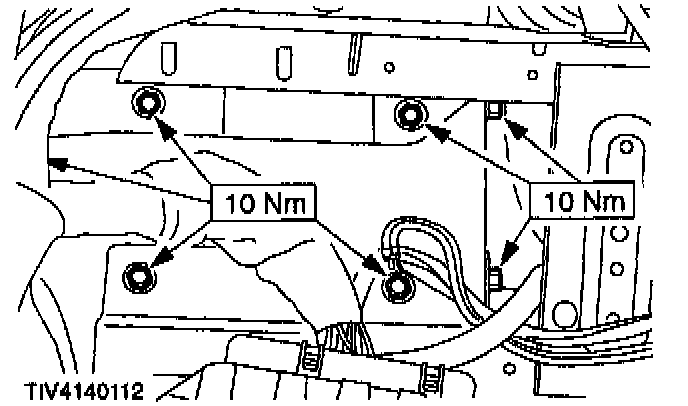

7. Remove the seven battery tray bolts and the battery tray.

INSTALLATION












1. To Install, reverse the removal procedure.

NOTE: Make sure the ground cables are clean of dirt and corrosion prior to installation.
