Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Torque Data

A/T Torque Data

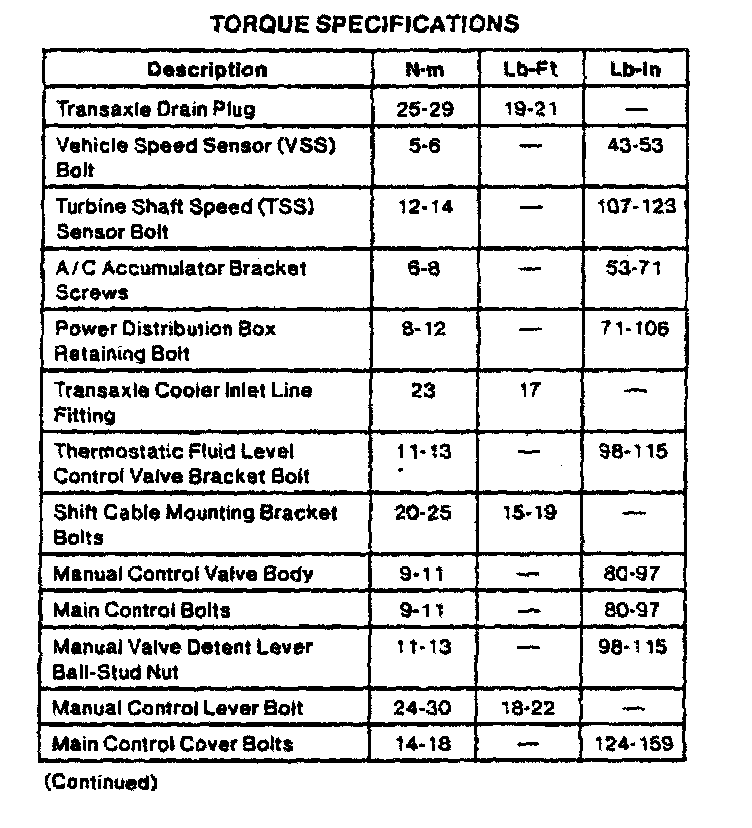

CD4E 4-spd A/T, Transaxle Torque:

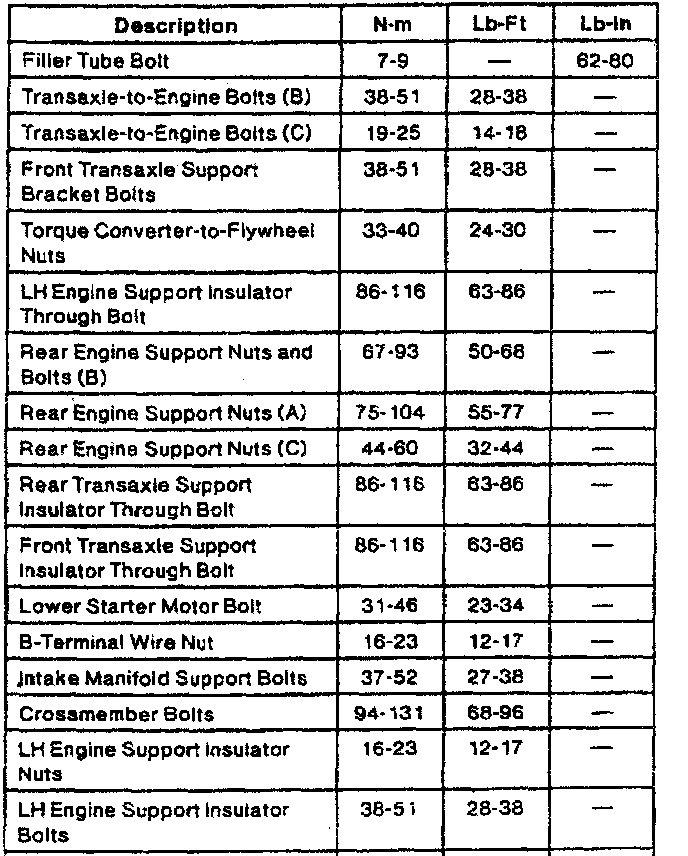

CD4E 4-spd A/T, Transaxle Cont.:

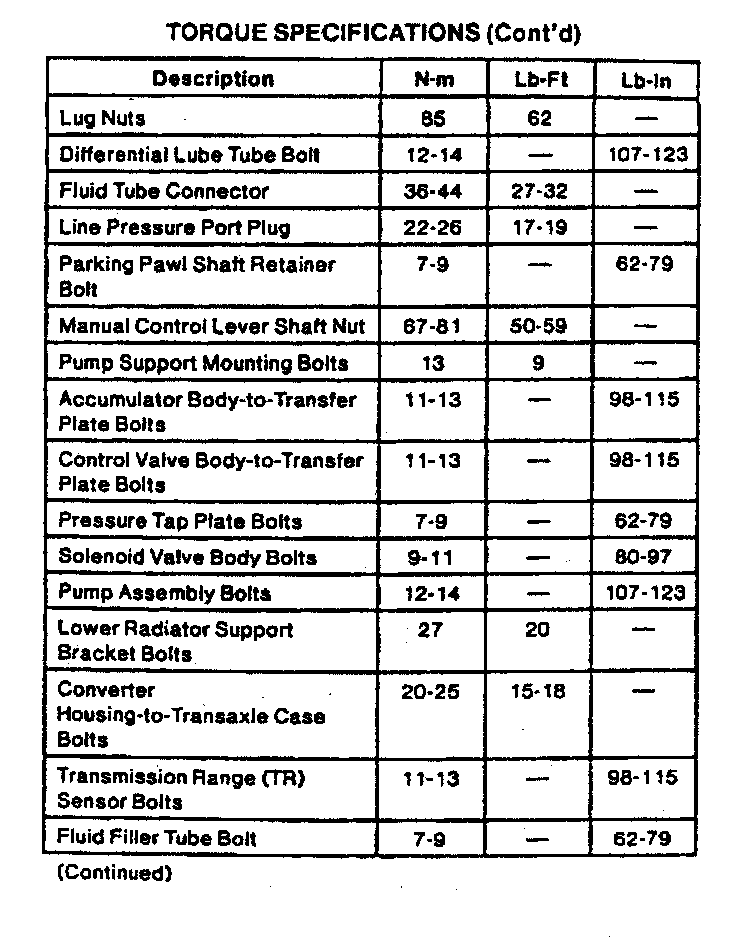

CD4E 4-spd A/T, Transaxle Cont.:

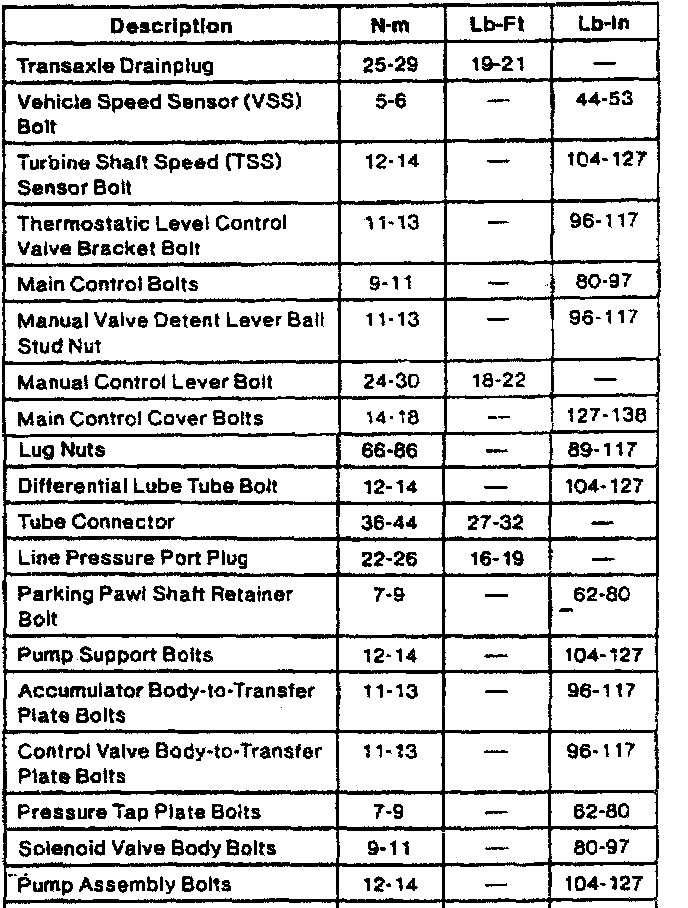

2.0L CD4E 4-spd A/T, Transaxle Torque:




2.0L CD4E 4-SPD A/T, Transaxle Cont.:
