Ignition Switch: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Remove the steering column lower shroud.





^ Remove the three screws.

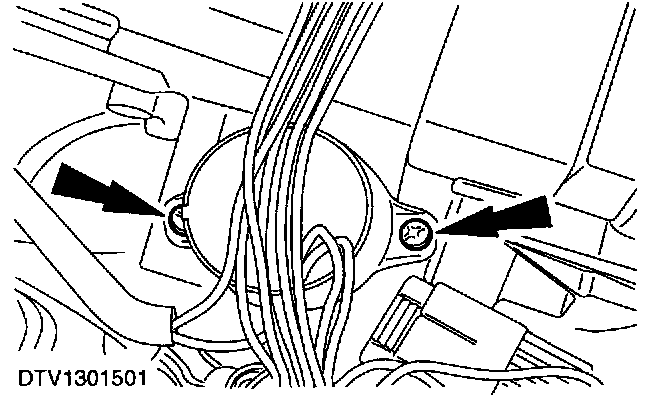

3. Remove the ignition switch.
^ Disconnect the electrical connector.





^ Remove the two screws.

Installation
1. To install, reverse the removal procedure.
