A/C Cycling Switch

REMOVAL

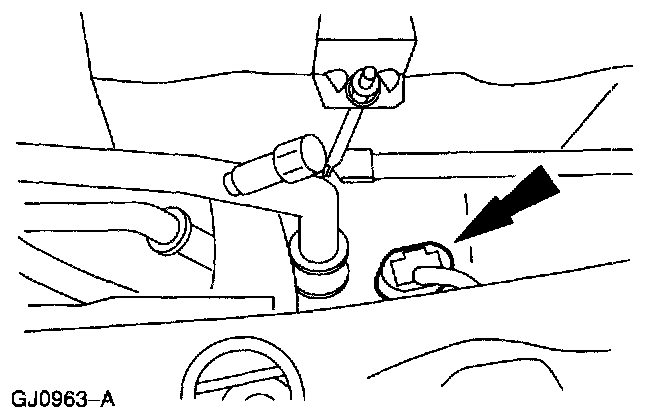

1. Remove the A/C cycling switch.
^ Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
^ Check A/C system for normal operation.

NOTE: Replace the O-rings and coat them with refrigerant oil.
