Air Conditioning Switch: Service and Repair

REMOVAL
1. Remove the radio chassis.
2. Remove the floor console.

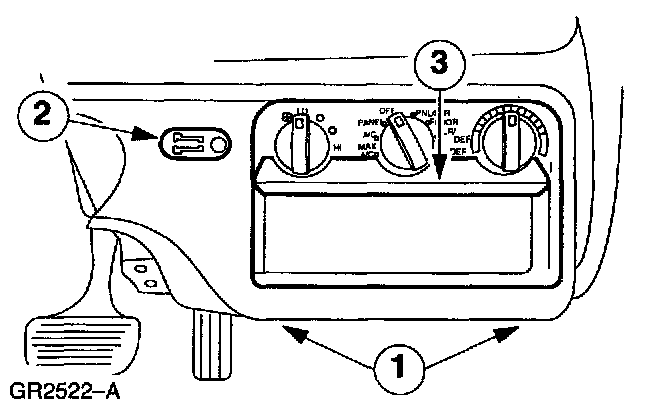

3. Remove the control opening finish panel.
1 Remove the four screws.
2 Disconnect the headlamp dimmer switch electrical connector.
3 Remove the panel.

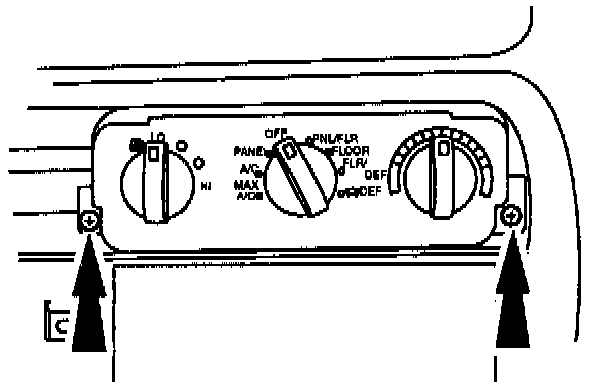

4. Detach the climate control assembly.
^ Remove the screws.

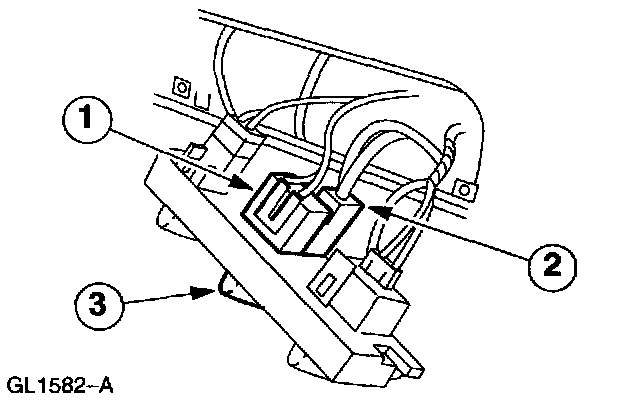

5. Remove the air distribution control switch.
1 Disconnect the electrical connector.
2 Disconnect the vacuum harness connector.
3 Remove the control knob.
6. Remove the air distribution control switch.
^ pry up switch to separate from climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
