Front

Removal
All Vehicles

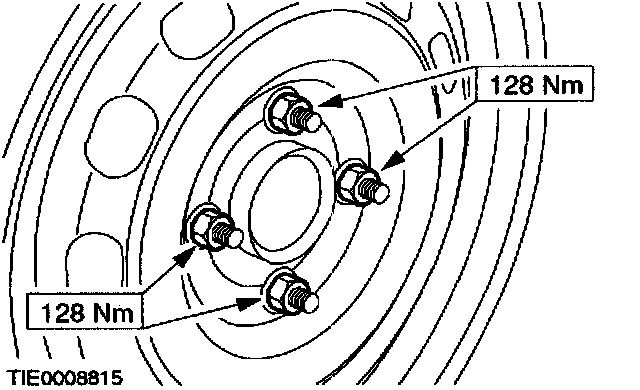

1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.

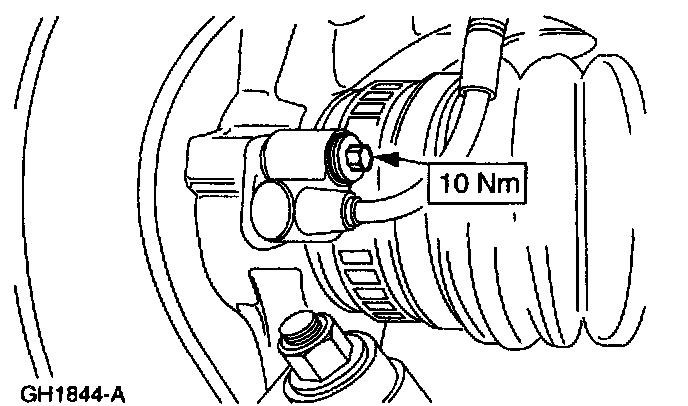

4. Remove the wheel speed sensor.

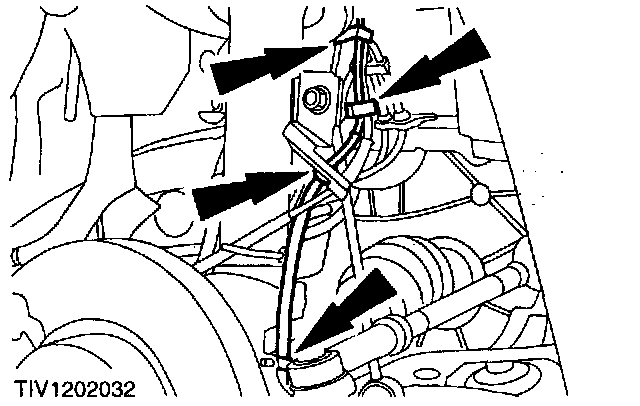

5. Detach the wheel speed sensor harness wiring from the support bracket and clips.

Vehicles with 2.5L engine

Vehicles with 2.5L engine:

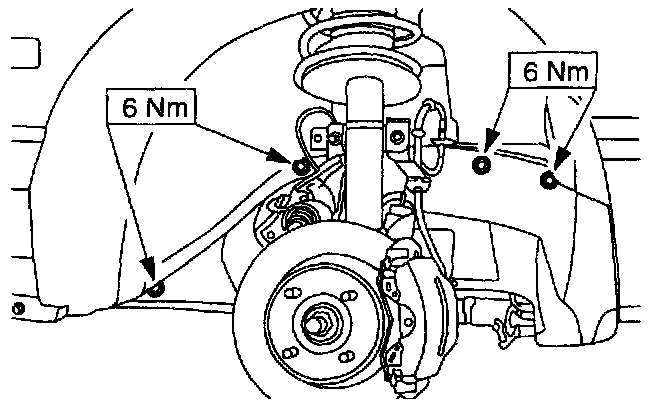

6. Remove the lower splash shield.

Vehicles with 2.0L engine

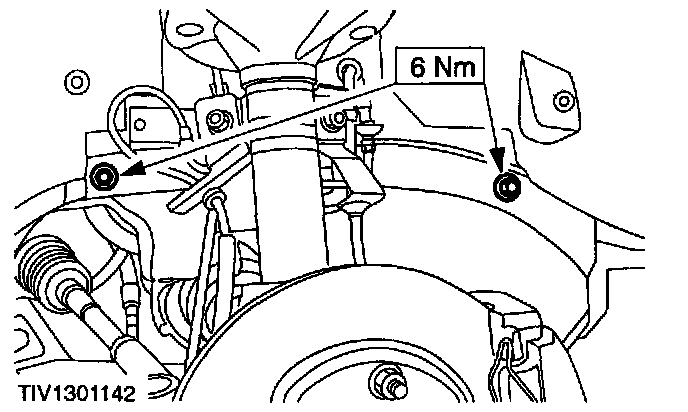

7. Remove the lower splash shield.

All Vehicles





8. Disconnect the wheel speed sensor electrical connector.

Installation

Vehicles with 2.5L engine:

1. To install, reverse the removal procedure.
